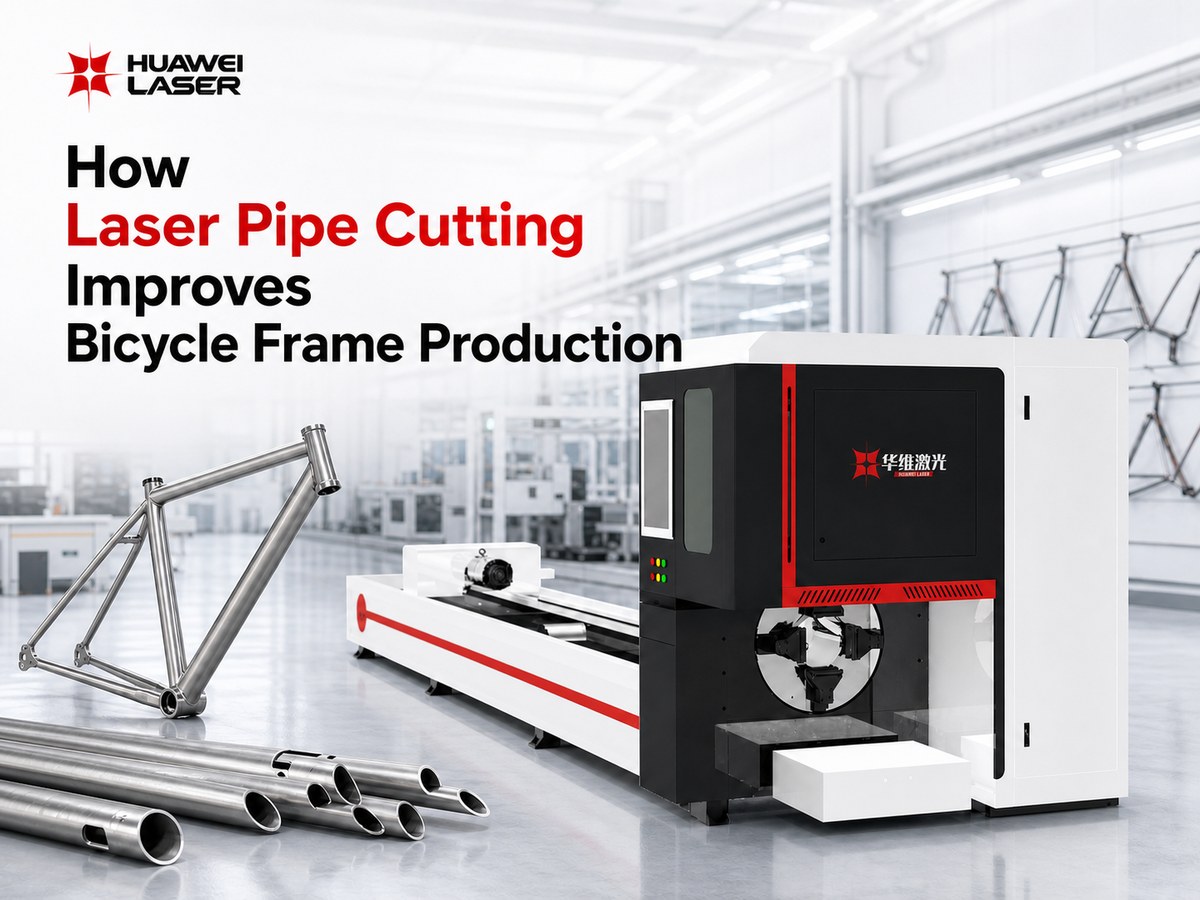

How Laser Pipe Cutting Improves Bicycle Frame Production

Why Bicycle Frame Manufacturing Requires Accurate Tube Cutting

Bicycle and e-bike frames require accurate tube joints, repeatable angles, and consistent hole positions. Small dimensional errors can create joint gaps, assembly problems, additional grinding, and welding distortion.

A laser pipe cutting machine for bicycle frame manufacturing can combine tube cutting, notching, drilling, slotting, and marking in one CNC-controlled process. Digital production reduces manual measurement and supports more consistent frame components.

How a Laser Pipe Cutting Machine Works

A fiber laser source generates a concentrated beam. An automatic-focusing cutting head directs laser energy onto the tube surface. A CNC system coordinates linear movement, tube rotation, laser output, cutting speed, focus position, and assist gas.

Bicycle manufacturers should submit actual CAD drawings before machine selection. Drawing-based evaluation helps suppliers determine whether the required features match the standard equipment structure.

Replacing Multiple Traditional Processes

Traditional bicycle tube preparation may require sawing, drilling, milling, manual notching, marking, and grinding. Every additional process introduces another setup, while repeated clamping can create cumulative positioning errors.

A CNC laser pipe cutting machine can reduce several separate operations. Fewer setups can improve production consistency and shorten the path from raw tube to welding preparation.

· Reduced manual marking and measurement

· Fewer dedicated cutting tools

· Lower tool-wear exposure

· Faster model changeover

· Less secondary grinding

· More consistent holes and notches

· Reusable digital cutting programs

Improving Tube Fit-Up Before Welding

Tube fit-up directly affects bicycle frame assembly and welding. A controlled joint profile can help tubes locate more consistently inside a welding fixture.

· More predictable joint gaps

· Reduced manual trimming

· Faster fixture loading

· More stable welding positions

· Better consistency between frame batches

A laser pipe cutting machine for bicycle frame manufacturing can create locating slots or assembly features when the approved frame design permits such features. Frame designers must approve every added opening because structural performance remains the primary requirement.

Why Rotational Performance Matters

A bicycle tube may require several features around different sides of the tube. Accurate rotational positioning helps maintain the angular relationship between notches, holes, and slots.

The specification lists unlimited W1 and W2 rotation, rotational positioning accuracy of ±30 arc seconds, and rotational repeat positioning accuracy of ±10 arc seconds. Finished-part performance must still be confirmed under the selected tube diameter, wall thickness, loading method, and cutting program.

Thin-Wall Bicycle Tube Considerations

Many bicycle and e-bike frames use relatively thin-wall tubes. Thin-wall components require careful control because excessive clamping force or heat input can cause deformation.

· Tube diameter, wall thickness, and material grade

· Tube straightness and profile tolerance

· Chuck pressure and support position

· Cutting speed, power, and piercing strategy

· Cutting sequence and assist gas

· Required edge quality and welding fit-up

Suitable Bicycle and E-Bike Components

A laser pipe cutting machine for bicycle frame manufacturing may support compatible round-tube components used in conventional bicycles, electric bicycles, cargo bicycles, folding bicycles, battery supports, motor supports, reinforcement structures, forks, and handlebars.

The current specification confirms round-tube processing. Square, rectangular, oval, tapered, bent, or hydroformed components require separate technical confirmation. Complex formed tubes may require specialized three-dimensional equipment, fixtures, scanning, or multi-axis processing.

Manual Loading or Automatic Loading?

The supplied quotation does not specify an automatic loading system, so automatic loading should not be presented as standard equipment.Manual LoadingManual loading may suit prototype frames, small batches, frequent model changes, multiple tube specifications, and lower daily production volume.Automatic LoadingAutomatic loading may suit stable tube specifications, larger batches, higher utilization, and reduced labor requirements. A recommendation requires the raw tube length, diameter, bundle size, surface condition, production target, and product-change frequency.Reducing Material WasteTube cost represents an important part of bicycle frame manufacturing. Nesting and tail-material control can affect cost per finished component.

· Number of parts per raw tube

· Part orientation and spacing

· Clamping position

· Unusable front and rear sections

· Cutting sequence

· Loading losses and rejected components

How to Evaluate Production Efficiency

Machine speed alone cannot represent complete production efficiency. A laser pipe cutting machine for bicycle frame manufacturing should be evaluated from loading through welding preparation.

· Programming and loading time

· Cutting time per tube

· Finished parts per hour

· Parts per raw tube and remaining tail

· Dimensional acceptance rate

· Secondary grinding time

· Fixture-loading and welding-preparation time

· Rejected-part rate

A representative bicycle component provides more useful evidence than a simple circular hole or straight end cut. Complex samples reveal information about rotational positioning, notch geometry, thermal control, programming, and consistency.

Huawei Laser Manufacturing Experience

Huawei Laser was established in 2017 and operates a manufacturing facility of approximately 10,000 square meters in Shenyang, China. Huawei Laser develops sheet cutting machines, pipe cutting machines, welding equipment, cleaning equipment, and robotic laser systems.

Huawei Laser reports more than 20 related technology patents and ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management-system certifications.

 The HWDT-60350-3000W laser tube cutting machine provides a one-year warranty for the complete machine and a two-year warranty for the laser source. The HWDT-60350-3000W provides a 3000W fiber laser, a 6,000 mm round-tube processing length, a 20–350 mm diameter range, and CNC-controlled rotational processing.

A laser pipe cutting machine for bicycle frame manufacturing should be selected from verified tube drawings, wall thickness, tolerance, output targets, and welding requirements.

The configuration may suit bicycle and e-bike manufacturers processing compatible straight round tubes. A final recommendation requires verification of material, diameter, wall thickness, geometry, tolerance, production volume, tail target, welding process, and loading method.

Request a Bicycle Frame Tube Cutting Test

Send Huawei Laser a bicycle-frame drawing, tube material, outside diameter, wall thickness, raw tube length, tolerance, welding method, and production target.
