Welding Robot 919mm 1434mm for Metal Fabrication

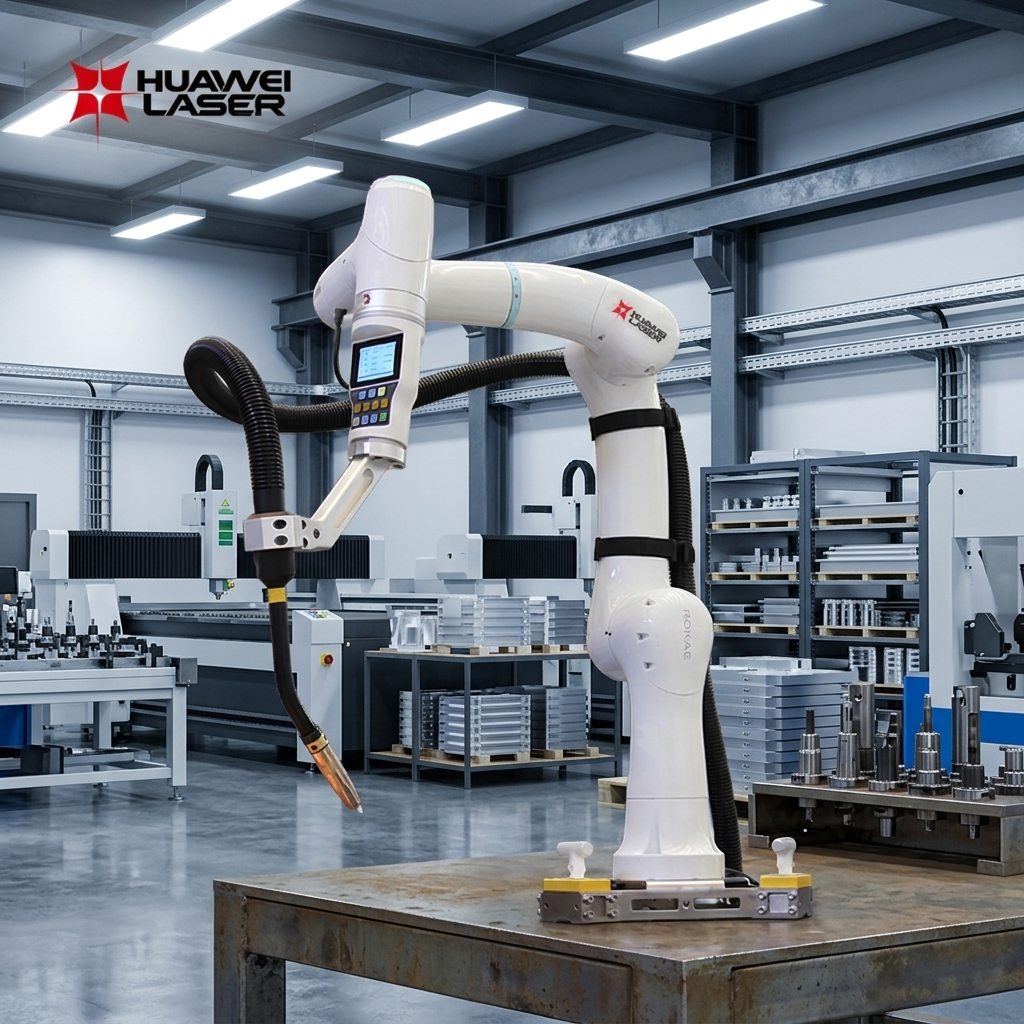

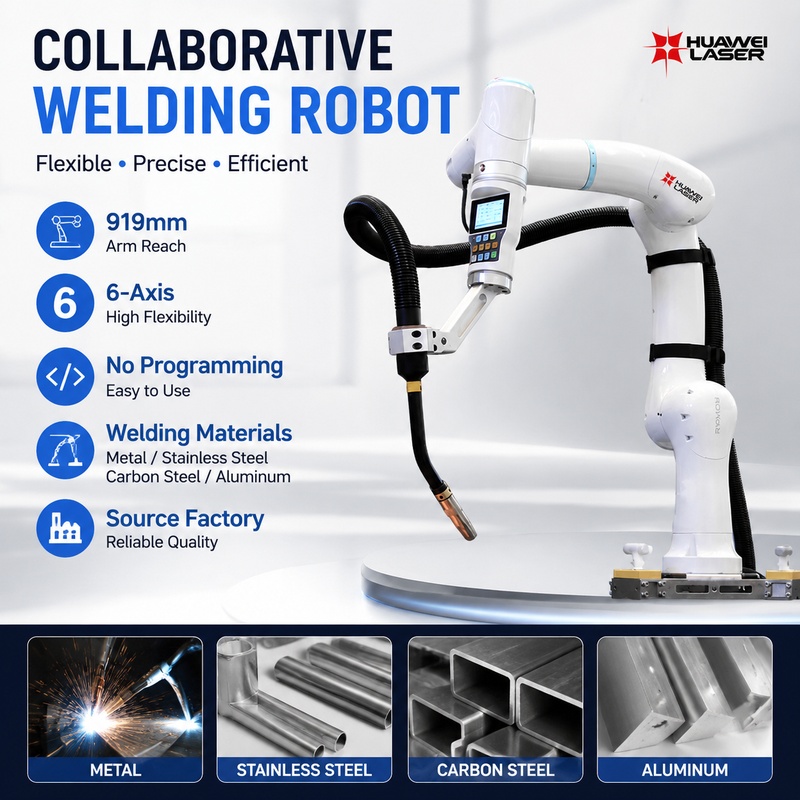

Welding Robot 919mm 1434mm for Metal Fabrication from Huawei Laser is an intelligent robotic welding solution designed for flexible metal fabrication and industrial manufacturing applications. Featuring a six-axis collaborative robot arm, high-precision motion control and intelligent teaching technology, the system provides stable and efficient welding performance for different workpieces. Available in 919mm and 1434mm working radius configurations, it supports various production requirements from small components to larger metal structures. With flexible operation, reliable welding quality and customized workstation options, Huawei Laser helps manufacturers improve productivity and achieve smarter welding automation.

Send Inquiry

Product Description

The Welding Robot 919mm 1434mm for Metal Fabrication developed by Huawei Laser is designed for manufacturers seeking efficient and flexible welding automation solutions.

Different from traditional manual welding processes, robotic welding technology provides more stable movement control and repeatable welding performance. By combining a six-axis robot arm, intelligent programming system and professional welding equipment, the system can complete welding tasks with higher consistency and reduced dependence on skilled manual operators.

With two robot arm options, including 919mm compact working radius and 1434mm extended working radius, Huawei Laser provides suitable solutions for different workpiece sizes, production layouts and welding requirements.

The system is widely used in metal fabrication, machinery manufacturing, steel structures and customized welding applications.

Robot Model Selection

Specification	HW-X00-919	HW-X00-1434
Payload	5kg	12kg
Working Radius	919mm	1434mm
Repeatability	±0.02mm	±0.02mm
Maximum Tool Speed	≤2.0m/s	≤3.0m/s
Robot Weight	16.5kg	41kg
Application	Small & medium workpieces	Medium & large workpieces
Welding Application	MIG Welding	MIG Welding / Heavy Welding

Product Advantages

1. Flexible Robot Arm Options for Different Production Needs

Huawei Laser provides two robot configurations to match different fabrication requirements.

The compact 919mm model is suitable for small and medium workpieces, while the 1434mm model provides longer reach and higher payload capability for larger components.

Advantages:

Multiple working radius options

Suitable for different workpiece sizes

Flexible workstation integration

Adaptable to customized production

The flexible selection allows manufacturers to choose the right automation solution according to their welding requirements.

2. High Precision Motion Control for Consistent Welding Quality

The robotic welding system adopts advanced motion control technology to maintain stable movement accuracy during welding operations.

The optimized control system helps the robot follow programmed welding paths accurately and achieve consistent weld results.

Advantages:

High repeatability accuracy

Stable welding trajectory

Reduced welding variation

Improved production consistency

The precise motion capability helps manufacturers maintain reliable welding quality during continuous production.

3. Intelligent Teaching System for Easy Programming

Equipped with full-joint force control and torque sensing technology, the robot supports hand-guided teaching for faster program creation.

Operators can manually guide the robot arm to record welding paths, reducing programming complexity.

Advantages:

Hand-guided teaching function

Faster welding program adjustment

Reduced operator training requirements

Suitable for multi-product production

The intelligent programming system improves flexibility for manufacturers handling customized orders.

4. Six-Axis Flexible Movement for Complex Welding Tasks

The six-axis robot structure provides multi-directional movement capability, allowing the welding torch to reach different welding positions.

Advantages:

Six-axis motion flexibility

Multi-angle welding capability

Complex trajectory processing

Improved welding accessibility

The flexible movement design makes the robot suitable for components with complicated structures.

5. Safe Collaborative Operation Design

Huawei Laser welding robots integrate safety functions to support flexible cooperation between operators and equipment.

Through collision detection and force sensing technology, the system improves operational safety in suitable working environments.

Advantages:

Collision detection

Automatic stop protection

Force sensing safety control

Flexible workstation arrangement

The collaborative design helps manufacturers create safer and more efficient production environments.

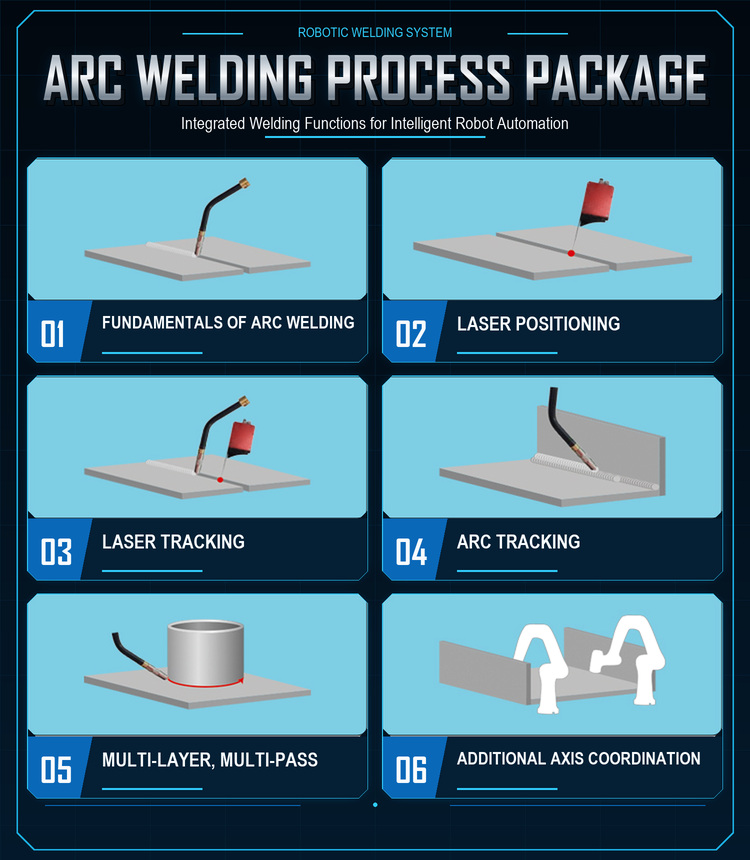

Arc Welding Process Package

Huawei Laser provides flexible welding process solutions to improve automation capability and welding quality for different manufacturing requirements.

Basic Arc Welding

Robot performs standard arc welding operations with programmed welding paths.

Laser Positioning

Uses laser positioning technology to quickly locate welding seams before operation.

Laser Seam Tracking

Automatically detects welding deviation and adjusts robot trajectory during welding.

Arc Tracking

Uses welding current and voltage feedback to optimize torch movement without additional sensors.

Multi-Layer & Multi-Pass Welding

Supports thick plate welding through multiple welding layers and passes.

External Axis Coordination

Enables synchronization between robot movement and positioners for complex welding applications.

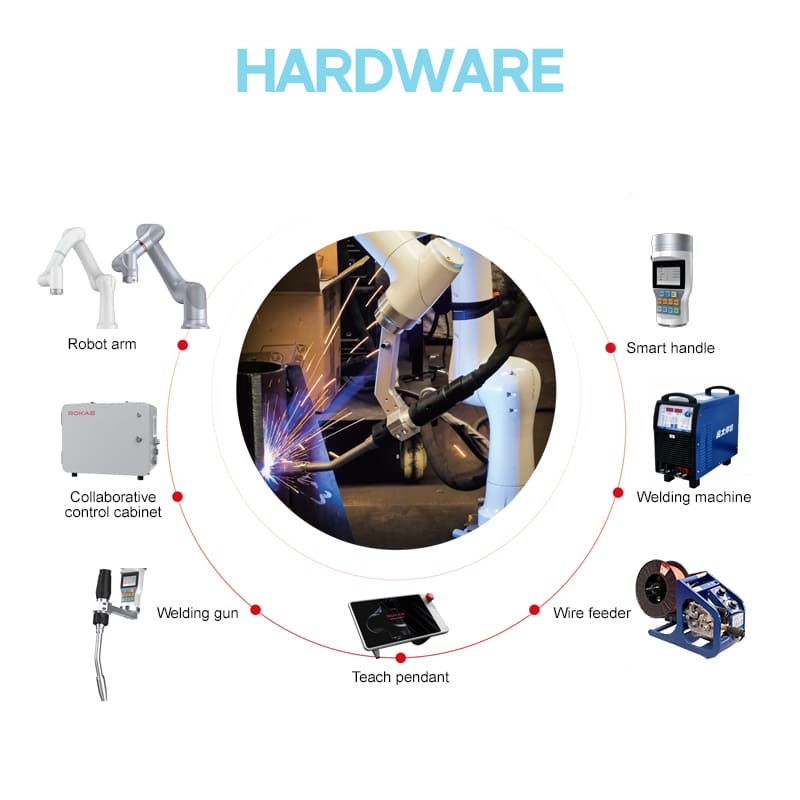

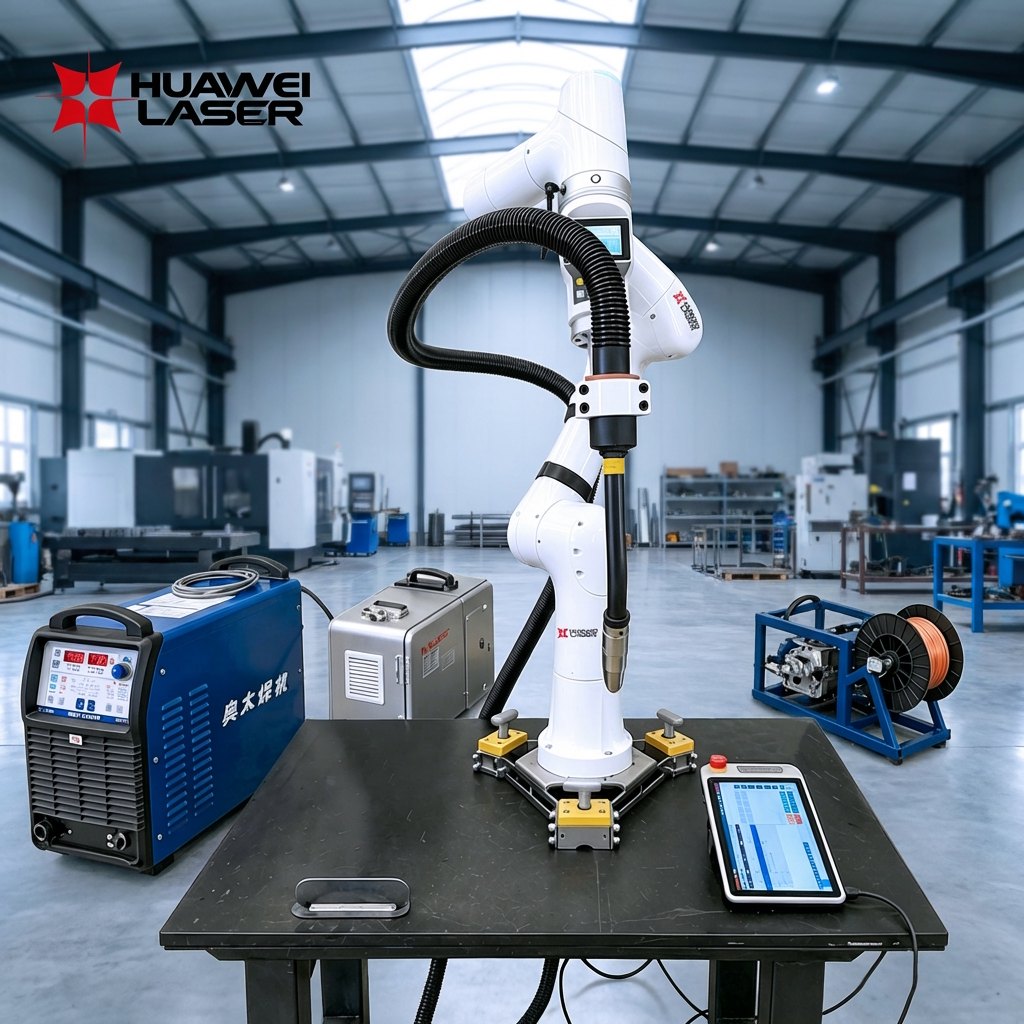

Robotic Welding System Configuration

Complete Welding Automation Solution

Huawei Laser provides integrated robotic welding systems combining robot motion control, welding equipment and intelligent programming functions.

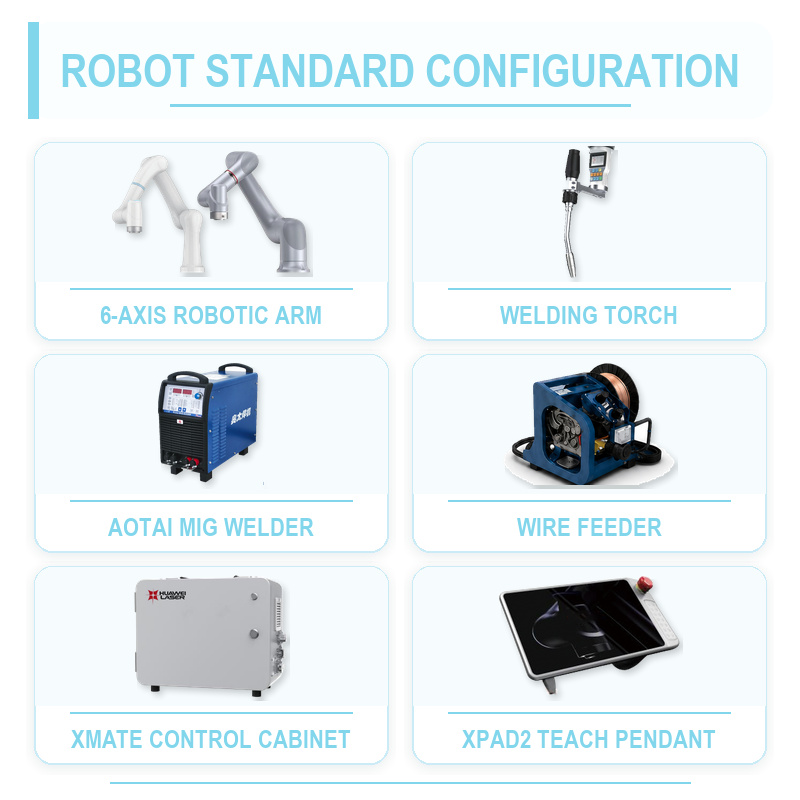

Component	Function	Features
Six-Axis Robot Arm	Welding movement control	5kg/12kg payload, 919mm/1434mm reach
Welding Torch	Performs welding operation	Accurate positioning, calibration support
MIG Welder	Provides welding power	Stable arc, low spatter
Wire Feeder	Controls welding wire supply	Smooth feeding performance
Control Cabinet	Robot system management	Intelligent motion control
Teach Pendant	Programming operation	Easy parameter adjustment

Optional Configurations

Huawei Laser provides additional options to improve system flexibility according to different production environments.

Option	Function
Smart Handle	Fast hand-guided programming
Laser Sensor	Automatic seam tracking
Magnetic Base	Quick installation
Mobile Trolley	Easy workstation movement
Linear Track	Extended working range
Gantry System	Large-scale welding applications

Working Principle

The Welding Robot 919mm 1434mm for Metal Fabrication uses intelligent robotic control technology to automatically execute welding programs.

During operation, the robot arm follows preset trajectories while maintaining accurate torch positioning, welding speed and movement direction.

Through coordinated control between the robot system and welding equipment, the machine achieves stable welding performance, reduces manual operation requirements and improves production efficiency.

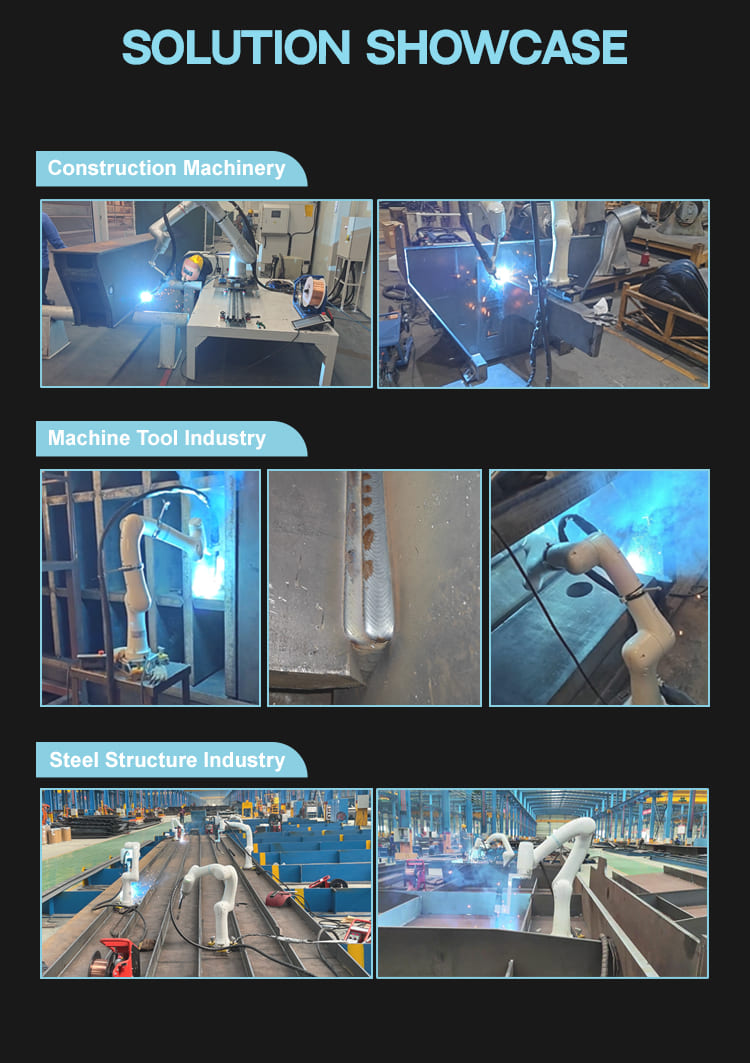

Product Applications

Metal Fabrication

The welding robot is suitable for customized metal fabrication projects requiring stable and repeatable welding performance.

Applications:

Metal frames

Steel components

Fabricated structures

Customized parts

Machinery Manufacturing

The system provides reliable welding solutions for industrial equipment and machinery production.

Applications:

Machine frames

Equipment components

Mechanical assemblies

Industrial structures

Steel Structure Production

The extended working range model is suitable for larger metal structures requiring flexible welding movement.

Applications:

Steel frames

Structural components

Heavy metal assemblies

Customized Welding Production

The flexible programming system makes the robot suitable for manufacturers handling different product models.

Applications:

Prototype production

Small batch manufacturing

Customized orders

Factory Strength & Service

Huawei Laser specializes in laser and automation equipment manufacturing, providing intelligent welding solutions for global industrial customers.

With professional engineering capability, strict quality control and complete technical support, Huawei Laser delivers reliable robotic welding systems for different manufacturing industries.

Manufacturing Advantages:

Professional automation equipment production

Stable component selection

Complete machine testing

Customized welding solutions

Technical support service

Global Service Capability:

Customers in 40+ countries and regions

50+ robot products developed

8 global service locations

Huawei Laser continues to help manufacturers improve welding efficiency and achieve intelligent production upgrades.

FAQ

1. What is the working radius of this welding robot?

Huawei Laser provides two models with working radius options of 919mm and 1434mm to meet different welding requirements.

2. What materials can this robot weld?

The system is suitable for stainless steel, carbon steel and other metal fabrication materials.

3. Can the robot be used for customized production?

Yes. The welding robot supports flexible programming and can be configured according to different workpieces and production layouts.

4. What welding process does the system support?

The standard configuration supports MIG welding applications. Other welding solutions can be customized according to requirements.

5. Is robot programming difficult?

No. The system supports intelligent teaching functions, allowing operators to create welding programs more efficiently.
