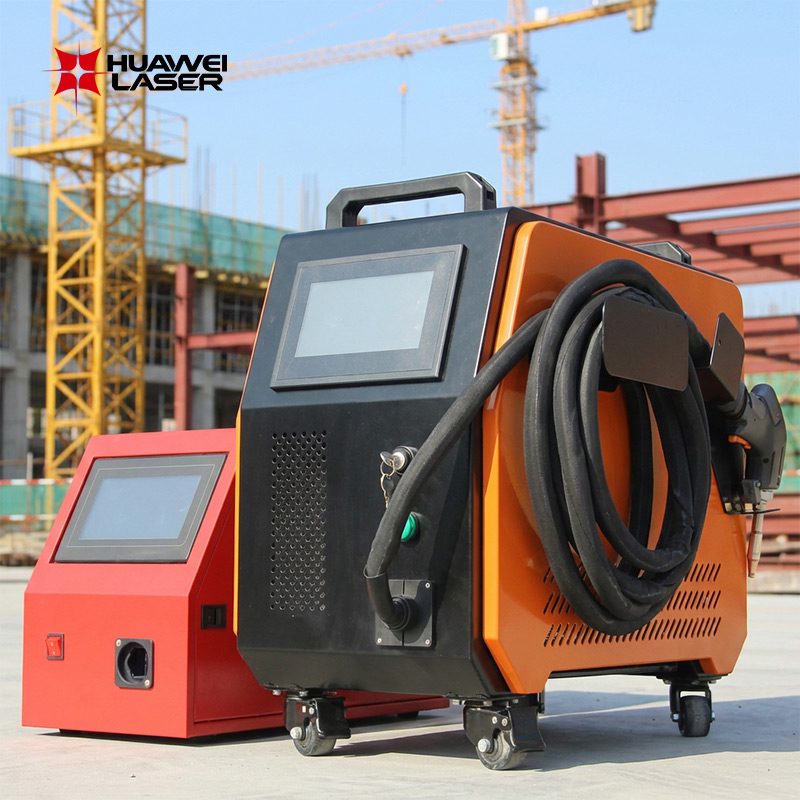

Small Footprint Handheld Laser Welding Machine for Flexible Metal Welding

Small Footprint Handheld Laser Welding Machine for Flexible Metal Welding developed by Huawei Laser is designed for customers who require a practical and adaptable welding solution for modern metal fabrication.

Unlike traditional welding equipment that may require large installation space and complex supporting systems, this machine adopts an integrated air cooling structure and compact design, allowing it to be easily placed in different working environments.

The handheld welding method provides operators with greater flexibility when processing different shapes, positions and customized metal components. The concentrated fiber laser beam offers precise heat input, helping achieve stable welding quality, reduced deformation and cleaner weld appearance.

With reliable performance, flexible configuration and easy operation, Huawei Laser provides an efficient welding solution for workshops, manufacturers and industrial users seeking more flexible metal processing capability.

Product Advantages

1. Small Footprint Design for Flexible Workshop Deployment

The compact structure allows the machine to fit into production environments where workspace utilization is important.

Compared with traditional welding equipment requiring larger installation areas and additional cooling systems, this model provides a more convenient solution for small workshops, customized production lines and multi-workstation applications.

Key Advantages:

Compact equipment layout

Space-saving installation

Easy movement between workstations

Suitable for limited production space

Flexible integration into different working environments

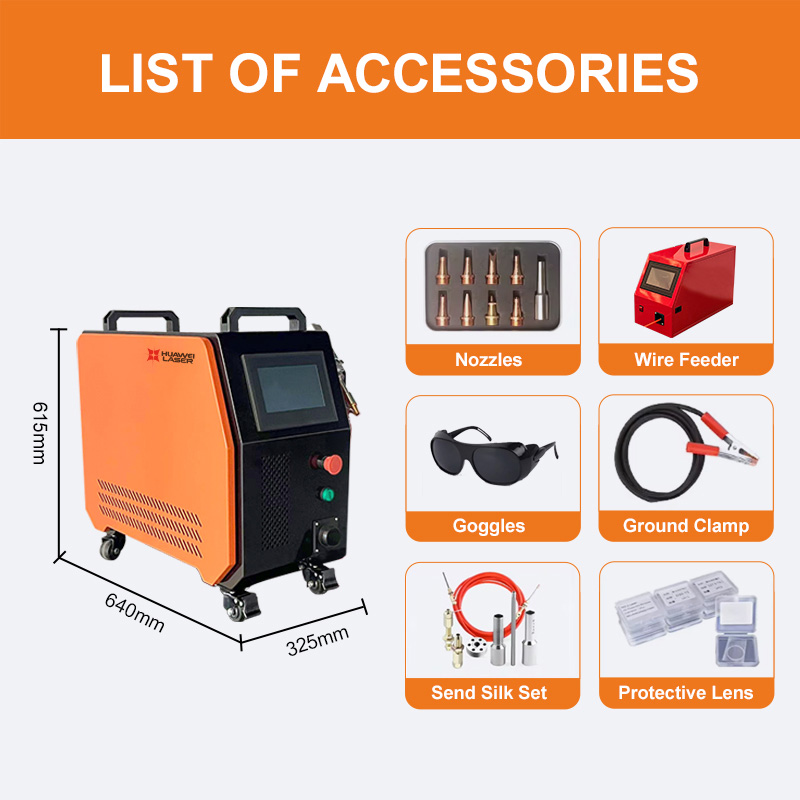

Machine Dimension: 640mm × 325mm × 615mm

2. Air Cooling System for Simple Operation and Low Maintenance

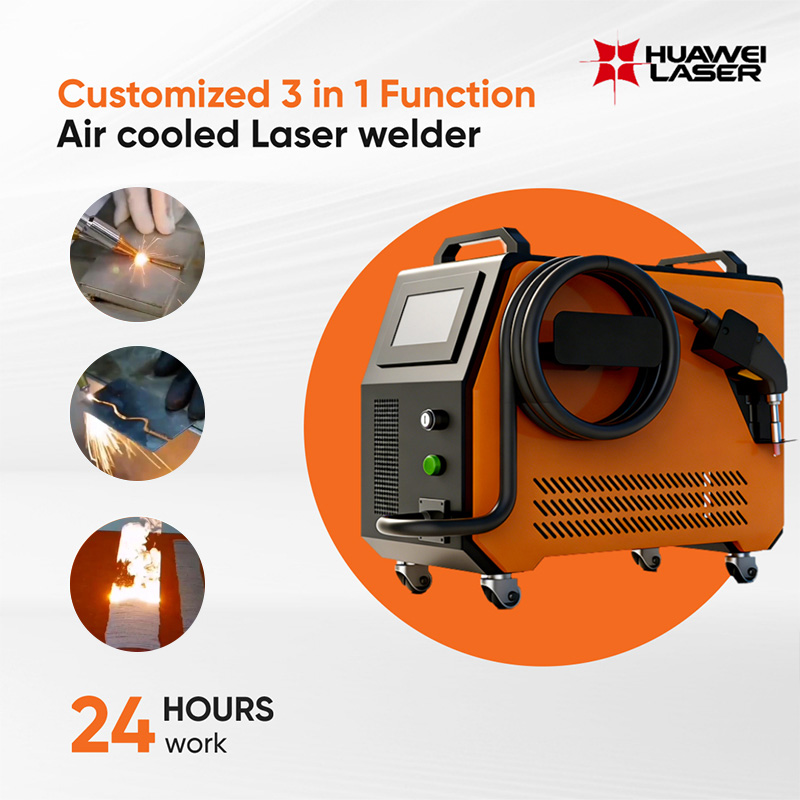

The machine adopts an integrated air cooling design, eliminating the need for an external water chiller.

This simplified structure reduces equipment complexity and helps customers lower daily maintenance requirements while improving equipment availability.

Key Advantages:

Air cooling configuration

No additional water cooling system required

Reduced installation requirements

Easier equipment maintenance

Suitable for flexible production environments

3. Lightweight Handheld Welding for Maximum Flexibility

The handheld welding design enables operators to process different workpieces from multiple angles without complicated positioning systems.

The lightweight welding gun improves operation comfort and helps reduce fatigue during continuous welding tasks.

Key Advantages:

Flexible handheld operation

Welding gun weight only 0.58kg

Easier welding of complex structures

Suitable for different welding positions

Reduced operator workload

4. Stable Fiber Laser Performance for Consistent Welding Quality

The fiber laser system provides concentrated energy delivery and accurate heat control during welding.

By controlling the welding heat area effectively, the machine helps reduce unnecessary thermal influence on the workpiece and improves weld consistency.

Available power configurations:

800W

1200W

Key Advantages:

Stable laser output

Precise heat input control

Consistent welding performance

Suitable for different metal thickness requirements

Reduced deformation risk

5. Easy Operation with SUPER Laser Intelligent Control System

The machine integrates the SUPER Laser control system, including the control panel, handheld welding gun and wire feeding system.

The intuitive interface allows operators to adjust welding parameters efficiently and complete daily welding tasks with less operation difficulty.

Key Advantages:

User-friendly control interface

Quick parameter adjustment

Integrated welding control system

Supports wire feeding welding

Lower operator learning requirements

6. Wide Material Compatibility for Different Applications

Designed for modern metal processing, the machine supports various commonly used industrial materials.

The flexible welding capability allows manufacturers to handle different production requirements with one welding solution.

Applicable Materials:

Stainless Steel

Carbon Steel

Aluminum

Mild Steel

Metal Components

Customized Fabrication Parts

Product Specifications

Working Principle

Small Footprint Handheld Laser Welding Machine for Flexible Metal Welding uses fiber laser technology to generate a high-energy-density laser beam.

The laser beam is transmitted through the optical system and focused onto the metal surface, creating a controlled melting area between the workpieces. As the operator moves the handheld welding gun along the welding joint, the molten metal cools and forms a strong and uniform weld seam.

Through accurate laser energy control and flexible handheld operation, the machine achieves stable welding performance with lower heat impact, reduced deformation and improved welding efficiency compared with conventional welding methods.

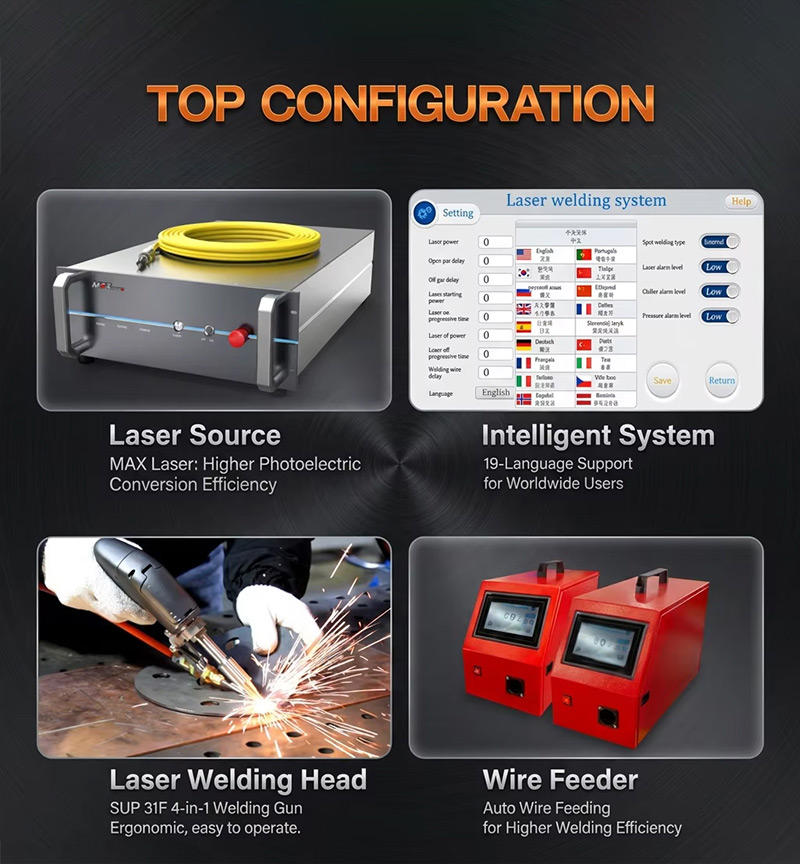

Machine Structure

The machine adopts an integrated structure combining laser source, control system, cooling system and welding components to provide a complete handheld welding solution.

Fiber Laser Source

The machine supports MAX and Raycus fiber laser source options, providing stable laser output and reliable welding performance for different metal processing requirements.

SUP 23T Handheld Welding Head

Equipped with the professional SUP 23T handheld laser welding head, the system provides flexible operation and precise laser beam control.

The ergonomic design helps operators complete welding tasks comfortably in different working positions.

SUPER Laser Control System

The control panel, welding gun and wire feeder are provided by SUPER Laser, offering convenient parameter adjustment and reliable system control.

Air Cooling System

The integrated air cooling design reduces equipment complexity and eliminates the need for an external water cooling system, making the machine easier to install and maintain.

Wire Feeding System

The optional wire feeding function helps improve welding performance for different joint designs and material requirements.

Product Applications

Sheet Metal Fabrication

The Small Footprint Handheld Laser Welding Machine for Flexible Metal Welding is suitable for customized sheet metal processing, including:

Metal cabinets

Equipment covers

Panels

Metal frames

Customized sheet metal structures

The flexible handheld design allows operators to process different workpiece sizes and shapes efficiently.

Stainless Steel Product Manufacturing

The machine is widely used for stainless steel products requiring good appearance and welding consistency.

Applications include:

Stainless steel furniture

Kitchen equipment

Decorative metal products

Stainless steel structures

The laser welding process helps achieve cleaner weld seams and reduces additional grinding and polishing work.

Hardware Manufacturing

Suitable for hardware components, metal accessories and customized metal products.

The compact design allows manufacturers to easily integrate the equipment into small production workshops and flexible manufacturing environments.

Metal Fabrication Workshops

For small and medium fabrication businesses, this machine provides a practical welding solution with:

Easy installation

Flexible operation

Low maintenance requirements

Multiple material compatibility

Repair and Maintenance Welding

Due to its compact structure and handheld operation, the machine is suitable for repair welding applications where mobility and flexibility are important.

OEM & ODM Manufacturing Service

Huawei Laser provides professional OEM and ODM services for global distributors, wholesalers and industrial partners.

With flexible customization capabilities, customers can develop laser welding solutions according to their market requirements.

Customization Options:

OEM logo customization

Machine appearance customization

Voltage and plug customization

Software language customization

Packaging customization

User manual customization

Private label manufacturing

From product configuration and manufacturing to quality inspection and delivery support, Huawei Laser provides complete cooperation solutions for international partners.

Factory Strength & Global Service

Huawei Laser is a professional laser equipment manufacturer specializing in fiber laser welding machines and industrial metal processing solutions.

With advanced manufacturing capabilities, experienced engineering teams and strict quality control systems, Huawei Laser provides reliable laser welding equipment and customized solutions for customers worldwide.

From product development and manufacturing to quality inspection and technical support, Huawei Laser focuses on delivering stable equipment performance and long-term value for global partners.

Manufacturing Advantages

Professional laser equipment manufacturing experience

Complete production and quality inspection process

Stable manufacturing and supply capability

Experienced engineering and technical teams

Customized equipment solutions for different applications

Global Service Capability

Huawei Laser has established long-term cooperation with customers in different industries and regions, providing professional laser solutions and technical support worldwide.

Serving customers in 40+ countries and regions

Multiple laser equipment product series

Professional technical support team

Long-term cooperation with global distributors and industrial partners

Professional After-sales Support

To ensure smooth operation and long-term performance of laser welding equipment, Huawei Laser provides comprehensive technical support throughout the entire equipment lifecycle.

Our services include:

Equipment installation guidance

Remote technical support

Operator training

Welding process assistance

Maintenance guidance

Original spare parts support

With reliable manufacturing capability and complete service support, Huawei Laser is committed to building long-term partnerships with global metal fabrication customers and helping them achieve more efficient and stable production.

FAQ

1. What materials can this handheld laser welding machine weld?

The machine is suitable for stainless steel, carbon steel, aluminum and various metal fabrication materials.

2. What laser power options are available?

Huawei Laser provides 800W and 1200W power configurations according to different welding requirements.

3. Does this machine require a water chiller?

No. This model adopts an air cooling system, which simplifies installation and reduces maintenance requirements.

4. What is the advantage of a small footprint laser welding machine?

The compact structure saves workspace, allows flexible equipment placement and is suitable for workshops with limited production space.

5. Which laser sources can be selected?

Huawei Laser provides fiber laser source options from MAX and Raycus according to customer requirements.

6. What welding head is used on this machine?

The machine uses the SUP 23T handheld laser welding head, which provides flexible operation and stable welding performance.

7. Does Huawei Laser provide OEM services?

Yes. Huawei Laser supports OEM, ODM and customized laser welding equipment solutions for global customers.

8. Is operator training required?

The machine features an intuitive control system and handheld operation design, allowing operators to quickly learn basic operation with Huawei Laser technical support.
