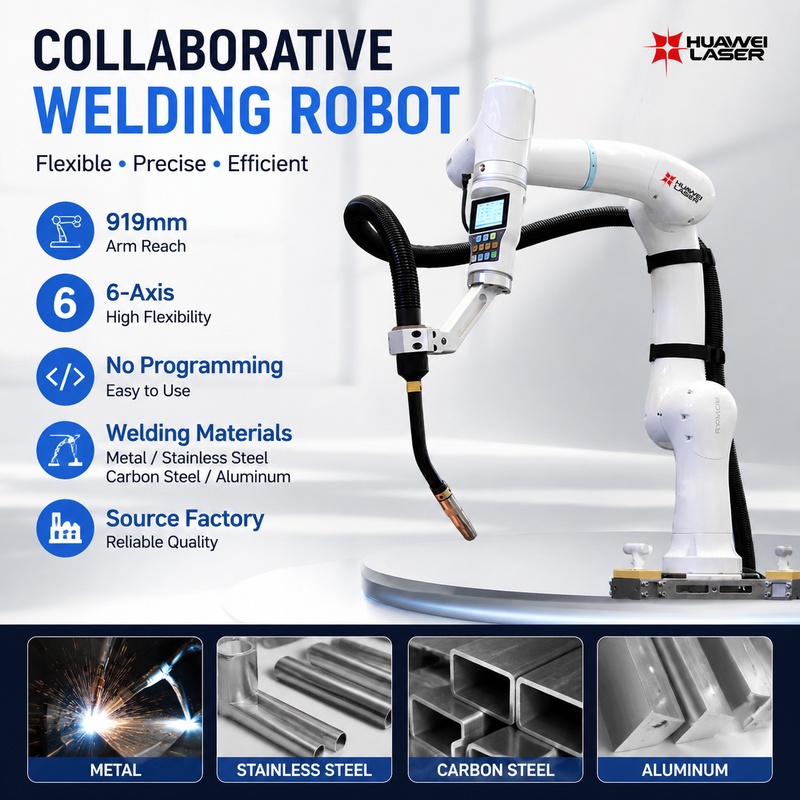

Robot Welding Machine for Pipe Welding and Steel Fabrication

Manufactured by Huawei Laser, Robot Welding Machine for Pipe Welding and Steel Fabrication is an advanced automated welding solution developed for manufacturers requiring stable, precise, and flexible welding performance.

Compared with traditional manual welding processes, this robotic welding machine uses intelligent motion control technology and high-precision robotic movement to maintain consistent welding paths and reduce variations caused by manual operation.

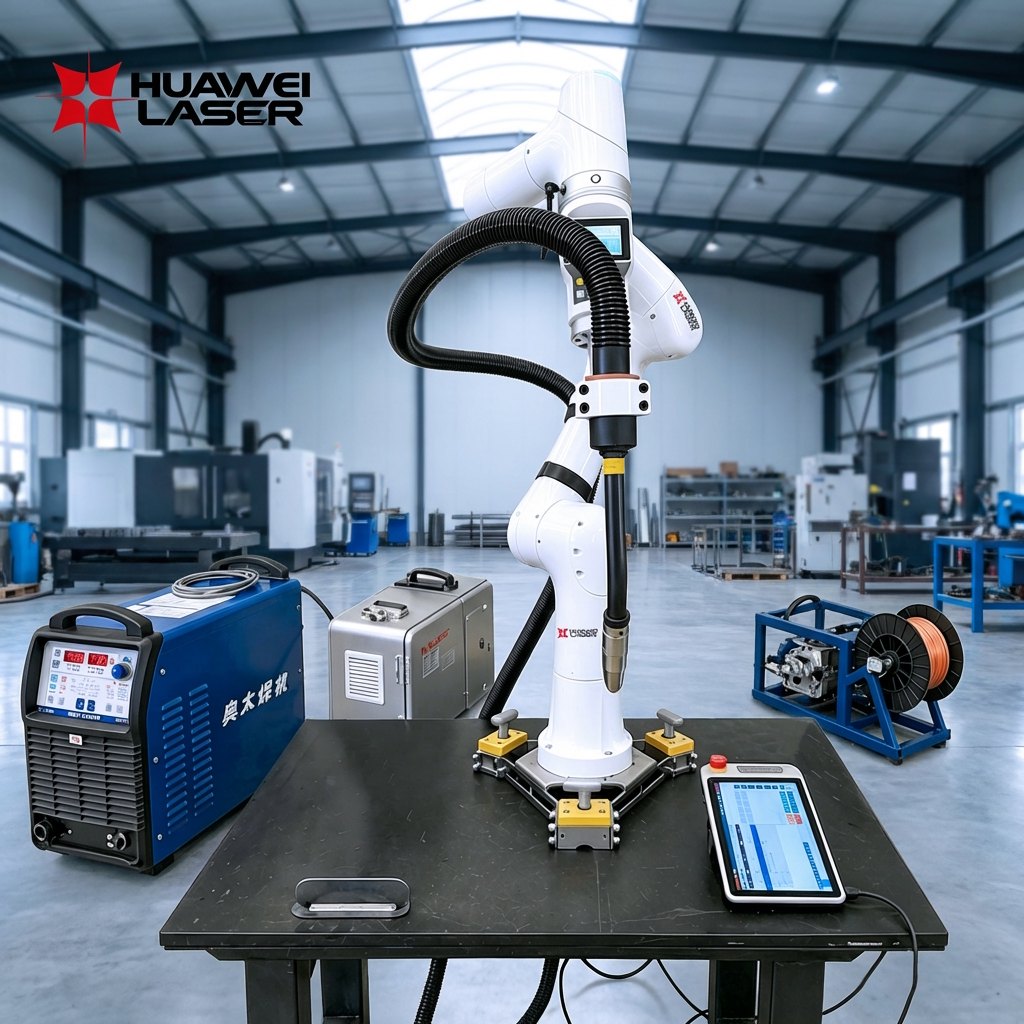

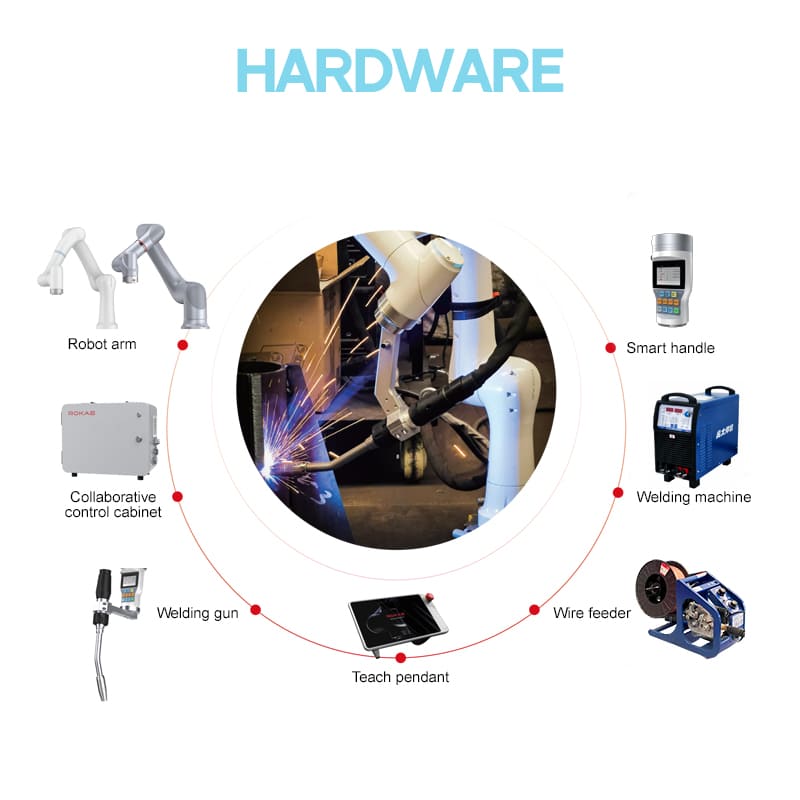

The system integrates a 6-axis robotic arm, welding torch, MIG welding machine, wire feeder, control cabinet, and teaching pendant, providing a complete solution for pipe welding, steel fabrication, and customized metal manufacturing applications.

With flexible movement capability, high repeatability, and intelligent safety functions, this robot welding machine helps manufacturers improve welding efficiency, reduce labor dependency, and achieve more consistent welding quality.

SPECIFICATIONS

Product Advantages

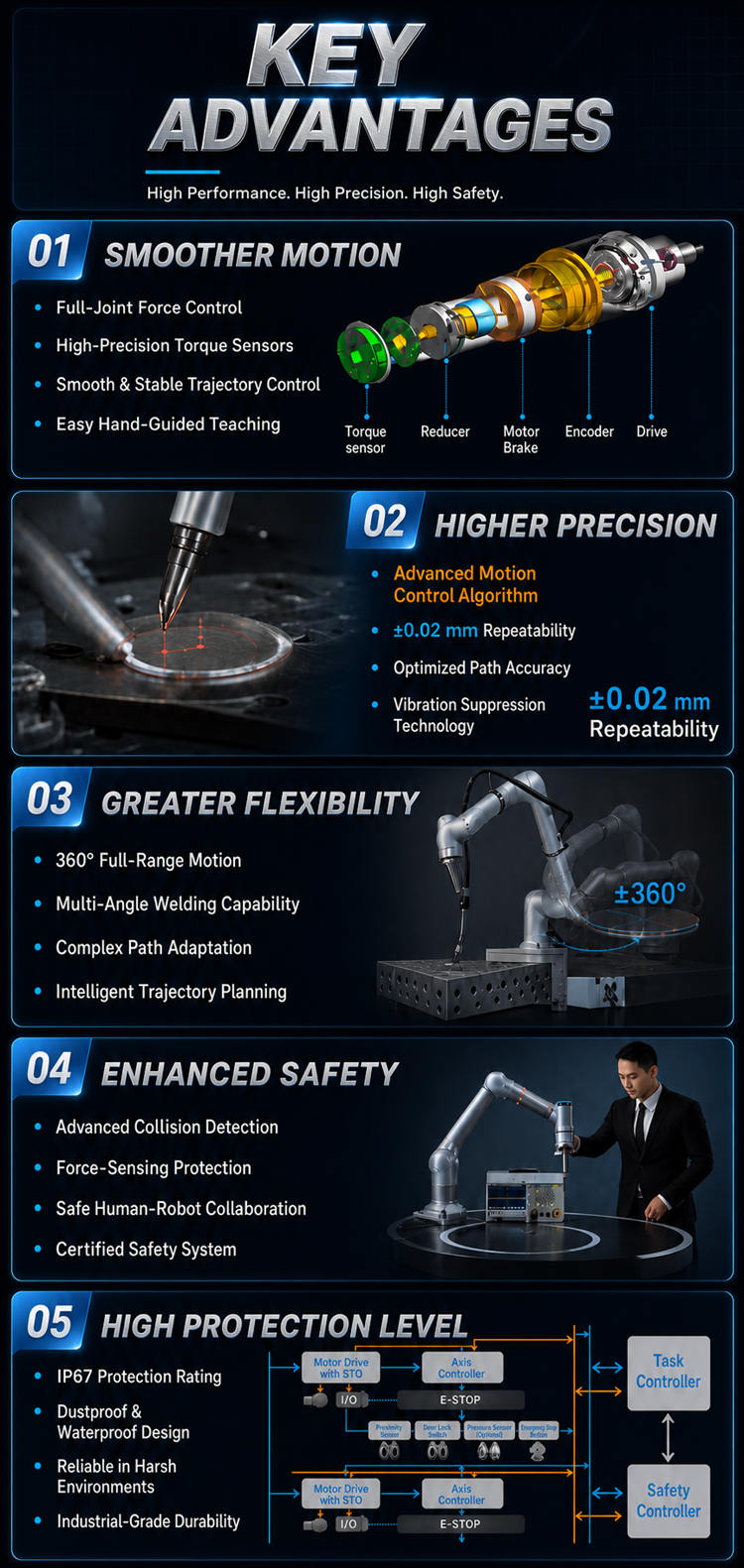

1. Smooth Motion Control for Stable Welding Process

The robot welding machine is equipped with full-joint force control technology and high-precision torque sensors to achieve smoother robot movement and more stable welding operation.

Key advantages include:

High-precision torque sensing with 0.1N force measurement resolution

Smooth trajectory control

Easy hand-guided teaching

Collision sensing capability

The force control technology allows the robot to detect external force changes and achieve flexible teaching operation, helping operators quickly create welding paths for different workpieces.

2. High Precision Welding with Consistent Results

The system uses advanced motion control algorithms and precision compensation technology to maintain accurate welding trajectories.

Features include:

Repeatability: ±0.03mm

Absolute positioning accuracy: ≤0.3mm

Path accuracy: ≤0.4mm

Vibration suppression technology

The high-precision motion system keeps the welding torch position stable, improving weld consistency and reducing quality differences caused by manual operation.

3. Flexible 6-Axis Motion for Complex Welding Applications

The 6-axis robotic arm provides excellent flexibility for pipe welding and steel fabrication applications.

With:

Reach: 919mm

Payload: 5kg

Full-joint ±360° motion range

Multi-angle welding capability

The robot can adapt to complex welding paths and different workpiece positions, making it suitable for pipes, steel structures, and customized metal fabrication.

4. Intelligent Welding Control and Easy Programming

The robot welding machine integrates an intelligent control system and professional welding software package to simplify operation.

The system supports:

Graphical programming interface

Hand-guided teaching and trajectory recording

Multi-layer and multi-pass welding path planning

Welding process monitoring

The intuitive operation method reduces programming difficulty and helps operators quickly set up welding tasks.

5. Reliable Safety and Industrial Protection

Designed for modern manufacturing environments, the robot welding machine provides multiple safety protection functions.

Safety features include:

Collision detection

Force-sensing protection

Human-robot collaboration safety functions

IP67 protection design for robot arm The high protection level improves equipment durability and allows stable operation in demanding welding environments.

Product Configuration

6-Axis Robotic Arm SR5-C

The system is equipped with SR5-C 6-axis robotic arm, providing flexible movement and precise welding control for pipe welding and steel fabrication applications.

Key specifications:

Payload: 5kg

Reach: 919mm

Repeatability: ±0.03mm

Protection Level: IP54

With full-joint force control and multi-axis flexible motion, the robotic arm can achieve smooth movement, accurate positioning, and stable welding performance for complex welding tasks.

Welding Torch

The robotic welding system is equipped with a professional welding torch designed for automatic welding applications.

Features:

XYZ multi-direction adjustment

Motion error <0.6mm

Full parameter compensation

The welding torch works together with the robot motion system to maintain accurate torch positioning and improve welding consistency.

AOTAI MIG Welding Machine

The system can be equipped with AOTAI MIG welding machines to provide stable arc output and reliable welding performance.

The welding power source supports stable current control, low spatter welding, and continuous automatic welding operation.

Wire Feeder

The wire feeder provides stable and continuous wire feeding during robotic welding.

Advantages:

Smooth wire feeding

Accurate wire speed control

Reliable operation for long-time welding

It works together with the welding machine and robot system to maintain stable welding quality.

XMATE Control Cabinet

The XMATE control cabinet provides intelligent motion control and system management for the robotic welding system.

Specifications:

Protection Level: IP54

Working Temperature: 0-50℃

Dimension: 450×250×350mm

Equipped with intelligent control technology, it supports robot motion control, communication management, and stable system operation.

XPAD2 Teach Pendant

The XPAD2 teach pendant provides an intuitive interface for robot programming and operation.

Specifications:

Screen: 10.1-inch LCD

Resolution: 1920×1200

Protection Level: IP54

It supports graphical programming, hand-guided teaching, welding parameter adjustment, and real-time operation monitoring.

Welding Software Package

The intelligent welding software package simplifies robot programming and welding process management.

Functions include:

Graphical programming

Hand-guided teaching and trajectory recording

Multi-layer and multi-pass welding path planning

Welding process monitoring

The software reduces programming difficulty and helps operators quickly create and manage welding tasks.

Additional Configuration Options

To meet different welding requirements, Huawei Laser also provides optional configurations, including:

Smart Handle for more convenient robot operation and adjustment

Laser Sensor for real-time weld seam tracking and improved welding accuracy

Magnetic Base for flexible installation and quick positioning

Non-Powered Trolley for easier robot movement between workstations

Linear Track for extending robot working range and supporting larger workpieces

Inverted Multi-Robot Gantry for multi-robot collaborative welding applications

Simple Inverted Gantry for space-saving installation of large workpiece welding solutions

10m Extension Cable for flexible equipment layout and stable system connection

Applications

Pipe Welding

Robot Welding Machine for Pipe Welding and Steel Fabrication is suitable for automatic pipe welding applications requiring stable welding quality and consistent production performance.

The flexible 6-axis robotic arm can adapt to different welding positions and complex pipe structures, helping manufacturers improve welding efficiency and reduce manual operation requirements.

Steel Fabrication

The robotic welding machine is designed for steel fabrication industries, including:

Steel frames

Structural components

Metal supports

Customized steel structures

With precise trajectory control and stable welding output, it helps manufacturers achieve consistent weld quality for repeated production.

Metal Fabrication

The system is suitable for customized metal processing applications such as:

Metal structures

Equipment frames

Fabricated components

Heavy-duty metal products

The flexible robot movement allows manufacturers to handle different workpiece shapes and welding requirements.

Machinery Manufacturing

For machinery and equipment manufacturers, the robotic welding solution provides stable welding performance for:

Machine parts

Industrial components

Metal assemblies

The automation process helps improve production efficiency and reduce differences caused by manual welding.
