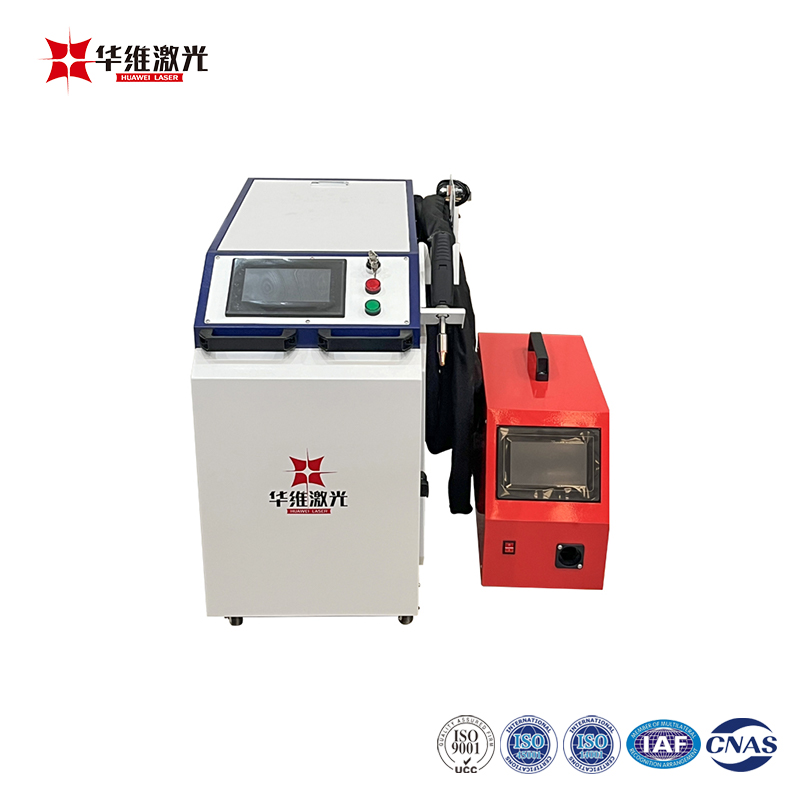

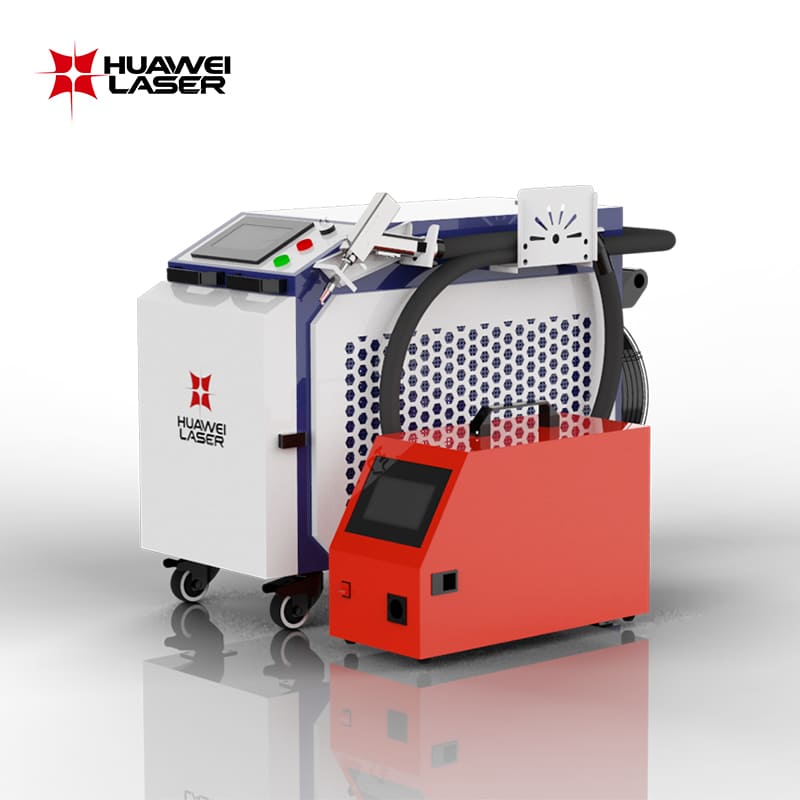

High Precision Fiber Laser Welding Machine for Complex Metal Welding Applications

High Precision Fiber Laser Welding Machine for Complex Metal Welding Applications developed by Huawei Laser is designed for manufacturers who deal with more than one type of metal or welding job.

In real fabrication work, the challenge is often not simply making a weld. Operators may need to work around corners, different joint shapes and changing workpiece sizes, while still keeping the weld clean and consistent. The handheld design gives operators the freedom to change welding direction and position without being tied to a fixed working path. With its 4-in-1 functionality, the machine can be used for welding, weld seam cleaning, laser cleaning and cutting, giving fabrication workshops more flexibility when handling different jobs.

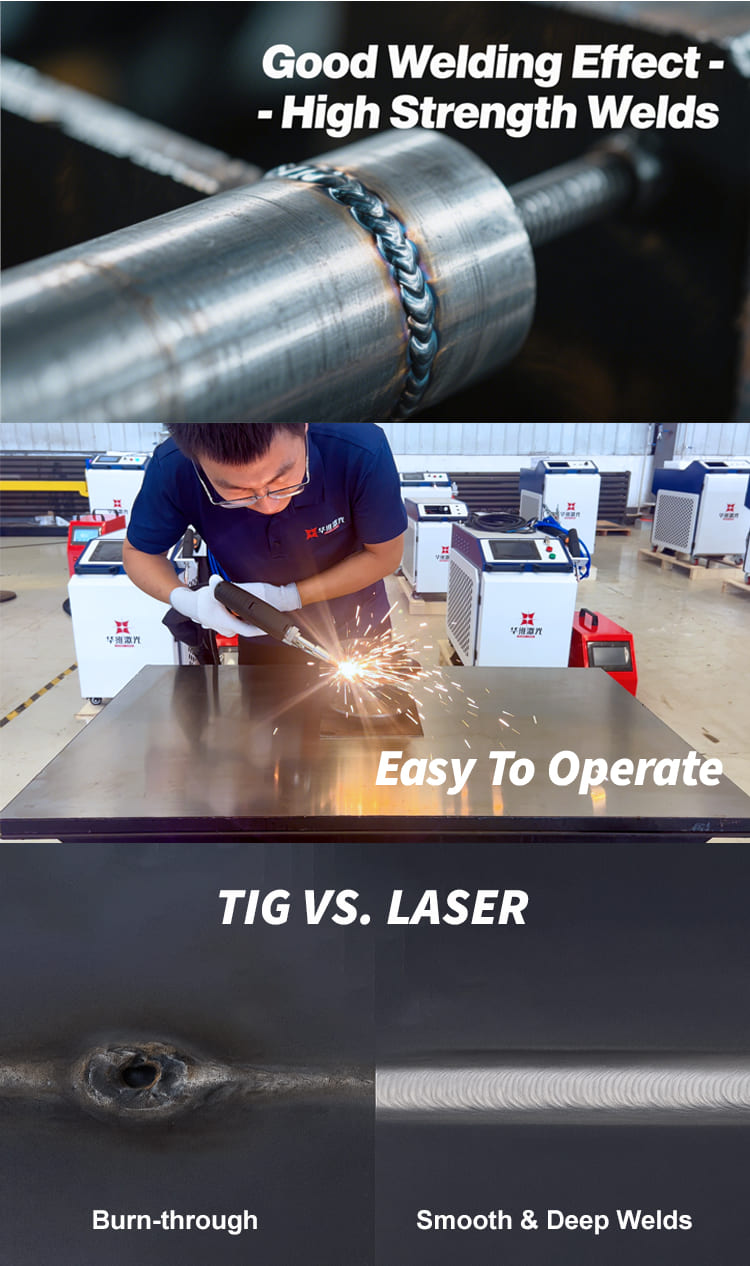

Product Advantages

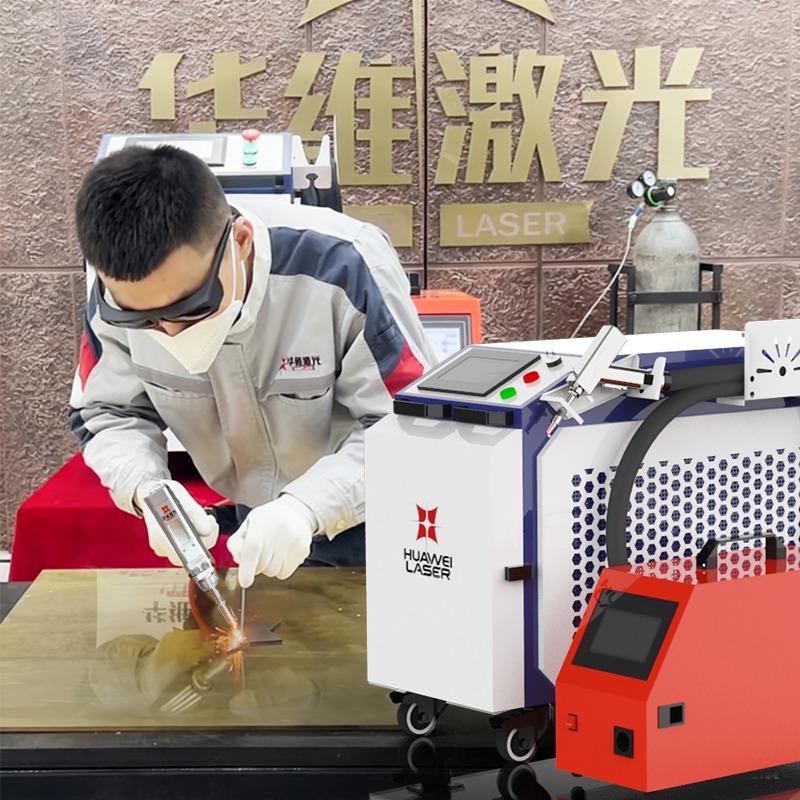

1. Flexible Handheld Welding for Complex Workpieces

Complex metal structures are rarely convenient to weld from one fixed position. The handheld welding design allows the operator to move naturally around the workpiece and adjust the welding direction according to the actual joint.

The SUP 23T handheld welding head weighs approximately 0.9kg, providing a more manageable operating experience for daily fabrication work.

Key Benefits:

0.9kg handheld welding head

Flexible welding direction

Suitable for different welding positions

Easier handling of irregular workpieces

2. Three Power Options for Different Welding Requirements

Not every metal fabrication job requires the same laser power. Huawei Laser provides 1500W, 2000W and 3000W options, allowing customers to choose according to material and thickness.

3. Water Cooling for Continuous Welding

For higher-power handheld welding, stable temperature control matters during long production periods.

The machine uses a Hanli water cooling system and supports continuous working mode. This provides stable cooling for the laser system during ongoing welding operations.

Key Benefits:

Hanli industrial water chiller

Water-cooled design

Continuous working mode

Suitable for long-duration welding

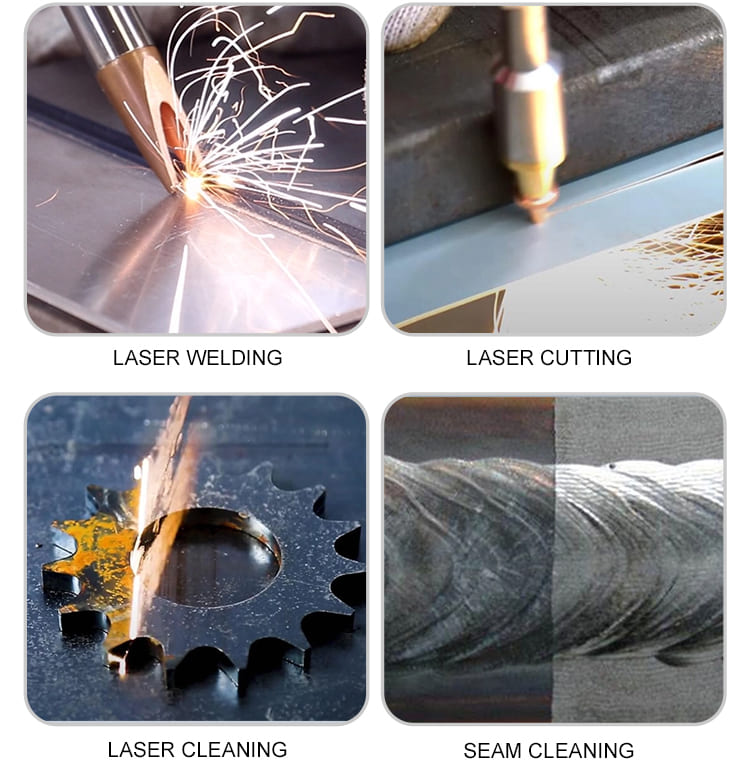

4. One Machine for Four Metal Processing Functions

A fabrication workshop may need to weld a component today, clean a weld seam tomorrow and remove surface contamination from another workpiece.

The 4-in-1 configuration combines:

Laser Welding

For joining metal components and structures.

Weld Seam Cleaning

For cleaning weld areas and improving surface appearance.

Laser Cleaning

For removing rust, oil, paint and other surface contaminants.

Laser Cutting

For selected metal cutting applications.

This multifunctional setup can reduce the need to purchase separate equipment for every processing task.

Product Specifications

Working Principle

The High Precision Fiber Laser Welding Machine for Complex Metal Welding Applications uses a fiber laser to concentrate high-density laser energy onto the metal joint.

As the laser beam moves along the welding area, the metal is locally melted and then solidifies to form the weld.

The handheld welding head allows the operator to control the welding path according to the shape and position of the workpiece. This makes the system particularly suitable for customized fabrication and metal structures where workpieces are not always identical.

Application Fields

Stainless Steel Fabrication

Suitable for stainless steel frames, equipment structures, cabinets, kitchen equipment and customized stainless steel products.

Carbon Steel Fabrication

Designed for carbon steel components, brackets, frames and fabricated metal structures requiring stable welding performance.

Aluminum Fabrication

Suitable for selected aluminum components and structures where controlled heat input and flexible operation are important.

Sheet Metal Processing

Can be used for sheet metal cabinets, enclosures, panels and customized metal products.

Machinery Manufacturing

Suitable for welding machine frames, equipment components and metal assemblies.

Customized Metal Fabrication

The handheld configuration is particularly useful for workshops handling different workpiece shapes, sizes and small-batch production orders.

Why Choose Huawei Laser?

Choosing a welding machine is rarely just about the laser power.

For a fabrication business, the equipment also needs to fit the way people actually work: different materials, different workpieces, changing orders and sometimes very little room for complicated setup.

Huawei Laser combines handheld operation, water cooling, multiple power options and 4-in-1 processing functions to provide a flexible solution for these everyday production requirements.

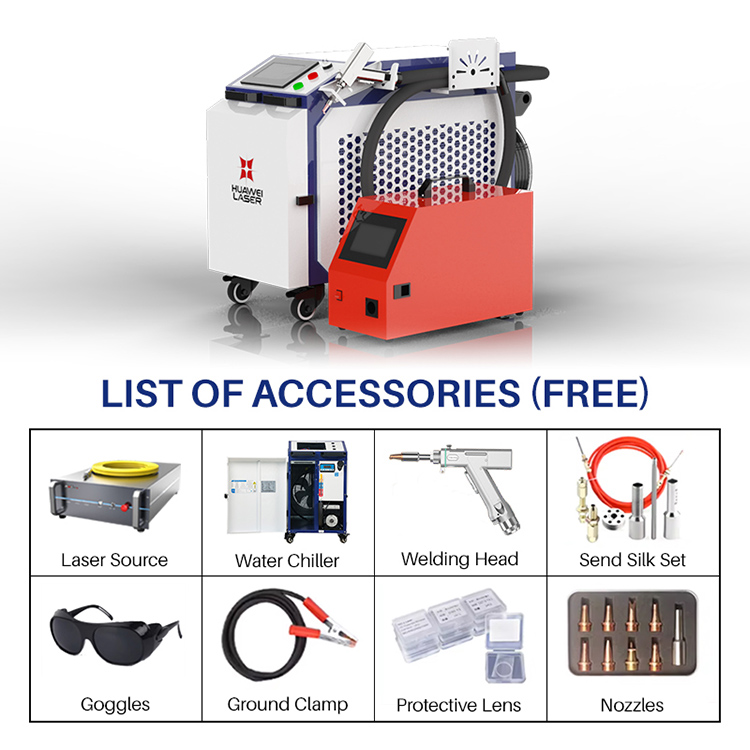

Huawei Laser provides:

1500W / 2000W / 3000W configurations

Water-cooled laser welding systems

SUPER Laser welding components

MAX / Raycus laser source options

OEM and customized solutions

Technical support and after-sales service

Contact Huawei Laser

Find the Right Laser Welding Configuration for Your Work

Looking for a High Precision Fiber Laser Welding Machine for Complex Metal Welding Applications?

Huawei Laser provides water-cooled handheld laser welding solutions in 1500W, 2000W and 3000W configurations, with professional welding components and flexible 4-in-1 processing functions.

Tell us your material, thickness and application, and Huawei Laser can help you select a suitable configuration for your production needs.

Huawei Laser — practical laser welding solutions built around the way manufacturers actually work.
