Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing
  • Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business ManufacturingCost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing
  • Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business ManufacturingCost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing
  • Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business ManufacturingCost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing
  • Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business ManufacturingCost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing
  • Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business ManufacturingCost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing

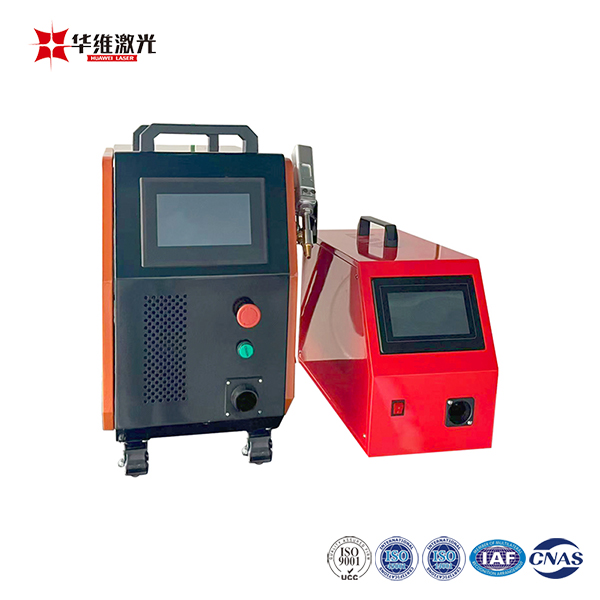

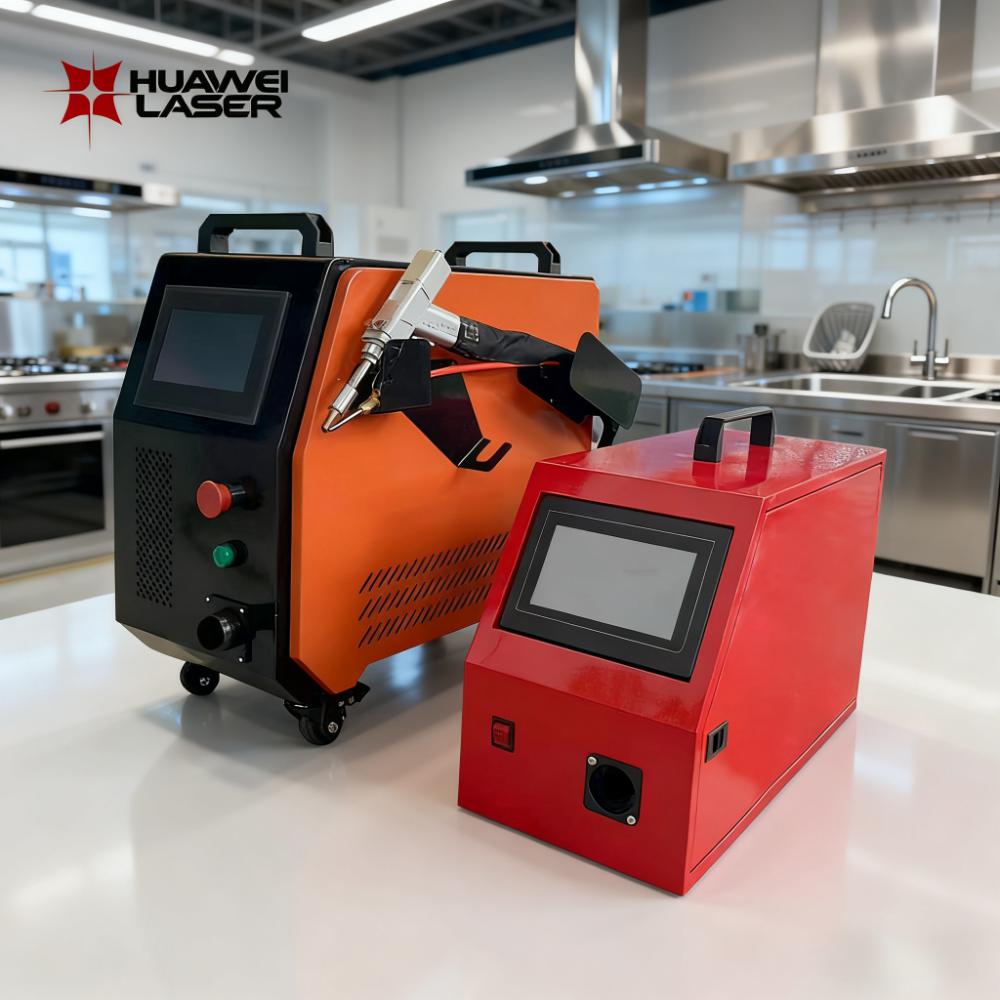

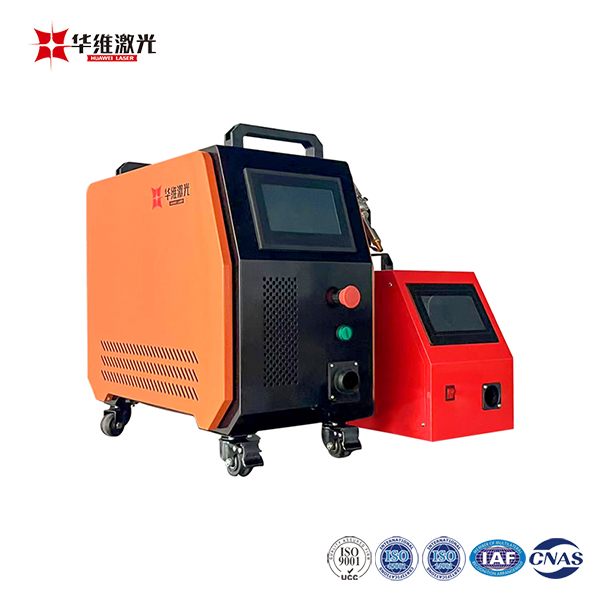

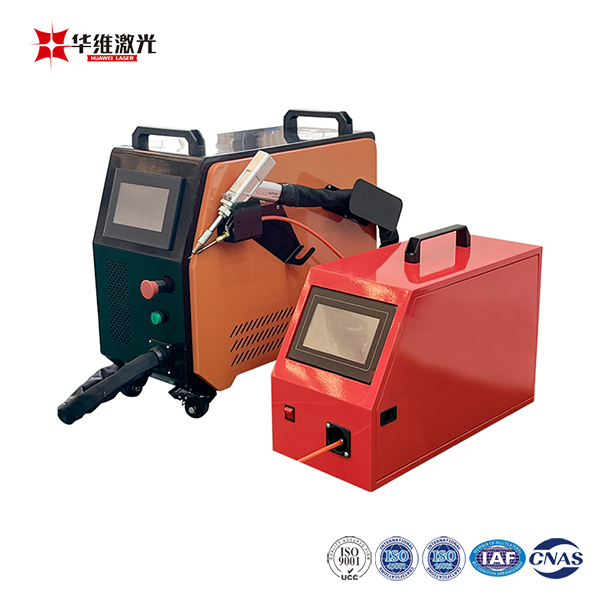

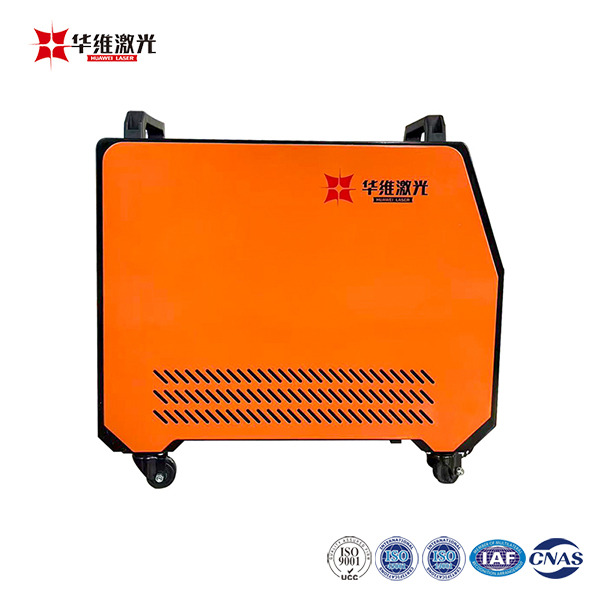

Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing

The Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine is designed to deliver efficient, reliable, and affordable welding performance for small business manufacturing involving stainless steel, carbon steel, aluminum, and other thin metal materials. Its air-cooled fiber laser system enables stable operation without the need for external water cooling, significantly reducing equipment cost, energy consumption, and maintenance requirements. With smooth weld seams, low heat distortion, and consistent welding quality, this compact and easy-to-use handheld machine is ideal for small workshops, metal fabrication shops, repair services, and light industrial production environments seeking cost-effective and dependable welding solutions.

Model:HW-AIR

Send Inquiry

Product Description

The HUAWEI LASER Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing is a practical Handheld Laser Welding Machine designed to deliver reliable and cost-effective welding performance for small business metal fabrication needs. Its air-cooled system ensures stable operation with low maintenance, while the handheld design offers flexibility and easy handling for daily use. The HUAWEI LASER Cost-Smart 800W 1200W Air-Cooled Handheld Laser Welding Machine for Small Business Manufacturing produces clean weld seams, consistent output, and minimal heat distortion on stainless steel, carbon steel, aluminum, and other metals — making it an ideal solution for workshops, repair jobs, and light manufacturing applications where performance and value matter.



Attributes

Condition
New
Place of Origin
Liaoning, China
Weight
<39kg
Key Selling Points
Easy to Operate
Applicable Industries
Metal processing, Machinery manufacturing, Metal welding
Marketing Type
New product 2024
Core Components
Laser source
Brand Name
HUAWEI LASER
Single Pulse Energy
Other
Pules Width
Other
Focal Spot Diameter
Other
Dimensions

588mm*265mm*512mm

667mm*276mm*542mm

Laser Head Brand
MAX Photonics
Control System Brand
Max Photonics
Product Name
Air cooling laser welding machine
Application
Metal welding: weld carbon steel,stainless steel,aluminum,copper
Laser power supply
800w 1200w 1500w
Function
Handheld Welding
Key word
Air cooling, Portable, Handheld laser welding machine, High quality
Laser Source
Max Photonics
Welding gun
Max Photonics
Power Supply
AC220V 50HZ
Welding mode
Continuous welding
Cooling System

Air cooled


Product Specifications

Product model
HW-AIR 800
HW-AIR 1200
Weight
<29kg
<38kg
Volume
<0.08m
<0.1m°
Dimensions
588mm*265mm*512mm
667mm*276mm*542mm
Welding gun weight
0.68kg
0.68kg
Working mode
Continuous/Pulse
Continuous/Pulse
Laser swing
0-4mm
0-4mm
Input voltage
220VAC
220VAC
Power consumption
2500W
6000W



Welding Capability

Product Model

Welding Material

Stainless Steel
Carbon Steel
Galvanized Sheet
Aluminum
Brass
Copper
HW-AIR 1500

Single side penetration

4.5mm
4.5mm
4.0mm
3.0mm
3.0mm
1.5mm
HW-AIR 1200
Single side penetration
4.0mm
4.0mm
4.0mm
3.0mm
3.0mm
1.5mm
HW-AIR 800
Single side penetration
3.0mm
3.0mm
3.0mm
2.0mm
2.0mm
1.0mm


Welding materials


Welding samples



Quality Inspection Process


Exhibition


FAQ

1.Q: I don’t know which one is suitable for me ?

A :Just tell us below information

1) Materials and welding thickness: To match the right Power of laser generator for you.

2) Business industries: We sell a lot and give advice on this business line.

2.Q: When I got this machine, but I don’t know how to use it. What should I do?

 A: We will send training video and English manual with the machine in time. If you still have some doubts, we can talk by telephone or Whatsapp.

3.Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

4.Q: How can I do if the machine goes wrong?

A: If confronted with such problems, Non-professionals should not repair the machine,please contact us ASAP. We will response within 24 hours as quick as we can to solve it for you.
