Automatic Welding Robot for Steel Structure Fabrication

The Automatic Welding Robot for Steel Structure Fabrication developed by Huawei Laser is designed for manufacturers requiring reliable and efficient welding automation for large and medium-sized metal structures.

Traditional steel structure welding often relies heavily on skilled welders, where welding quality can be affected by operator experience, working conditions and long production cycles.

Huawei Laser robotic welding systems integrate a six-axis robot arm, intelligent programming functions and professional welding equipment to provide stable welding paths and consistent welding quality.

The robot can automatically follow programmed welding trajectories and maintain accurate torch positioning during continuous welding operations. This makes it suitable for steel structures, machinery frames, industrial equipment and customized metal fabrication.

With flexible workstation configuration and optional accessories, Huawei Laser provides practical welding automation solutions for manufacturers looking to improve production efficiency and welding reliability.

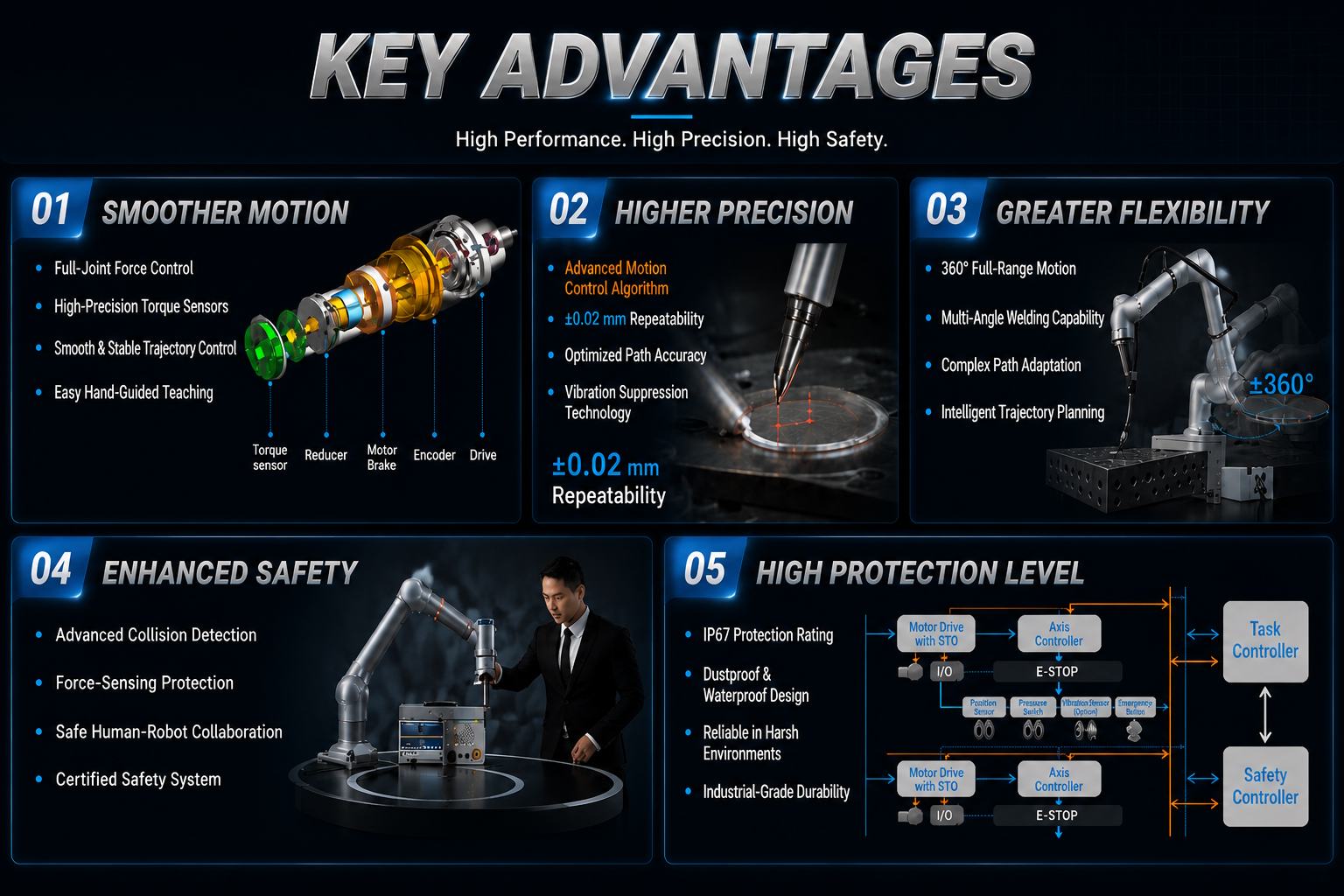

Product Advantages

1. Flexible Automatic Robot Design

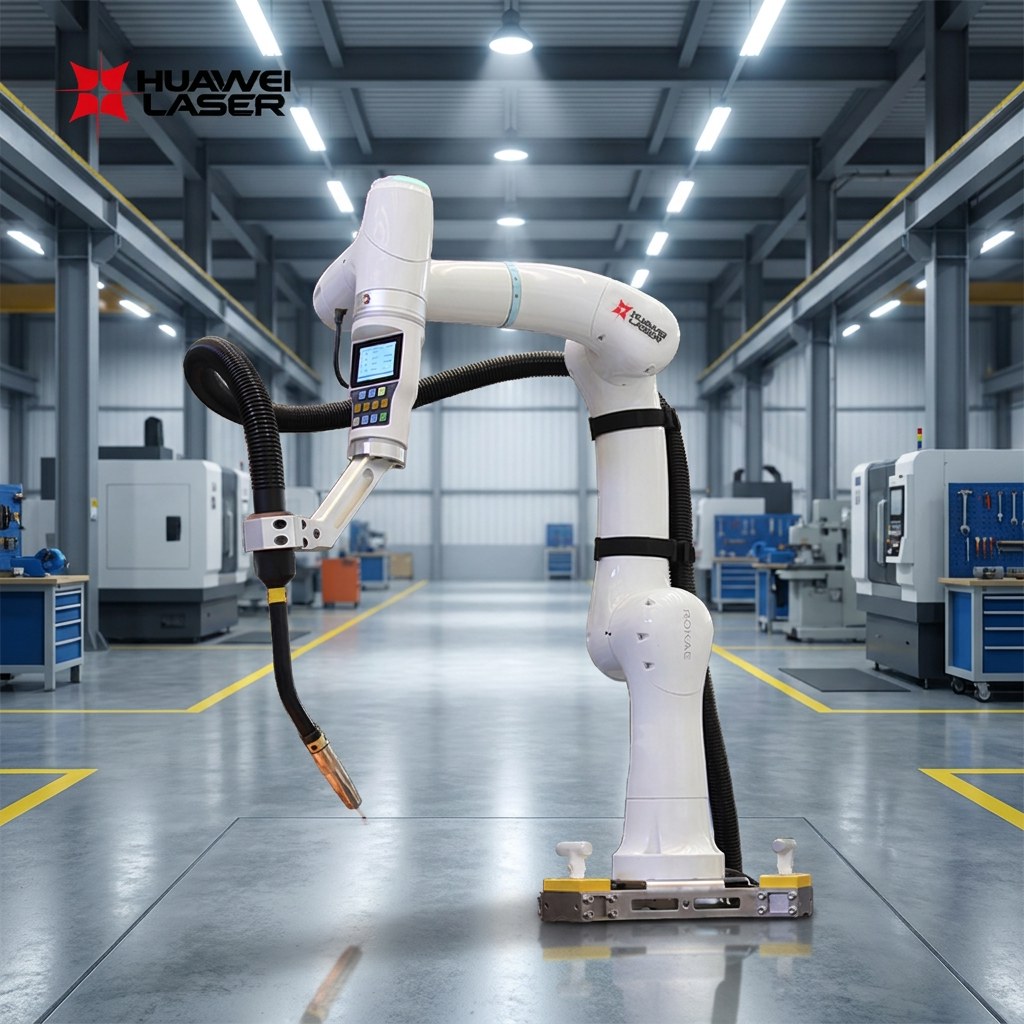

The six-axis automatic robot arm provides excellent movement flexibility, allowing the welding torch to reach different positions and complex welding paths.

Key Benefits:

Six-axis flexible movement

Multi-angle welding capability

Suitable for different workpiece shapes

Easy workstation integration

The flexible structure allows manufacturers to quickly adapt to changing production requirements.

2. High Precision Welding Performance

The robot uses advanced motion control technology to maintain accurate welding paths and stable operation.

Key Benefits:

Repeatability accuracy: ±0.02mm

Stable trajectory control

Precise torch positioning

Consistent welding quality

The high positioning accuracy helps reduce welding variation during continuous production.

3. Intelligent Teaching for Easy Programming

The automatic welding robot supports hand-guided teaching through integrated force control technology.

Operators can directly guide the robot arm to create welding paths, reducing programming complexity and improving production flexibility.

Key Benefits:

Hand-guided teaching

Full-joint force control

Faster program adjustment

Reduced operator training requirements

4. Safe Human-Robot Collaboration

Designed for flexible manufacturing environments, the robot includes safety functions that improve interaction between operators and equipment.

Key Benefits:

Collision detection

Force sensing protection

Automatic stop function

Flexible production layout

The collaborative design helps manufacturers build safer and more efficient workstations.

5. Flexible Configuration for Different Welding Needs

Huawei Laser provides customized robotic welding solutions based on different production requirements.

Available configurations include:

MIG welding system

Laser seam tracking

Linear track

Mobile workstation

Multi-robot integration

This allows customers to select suitable automation solutions according to workpiece size, welding process and factory layout.

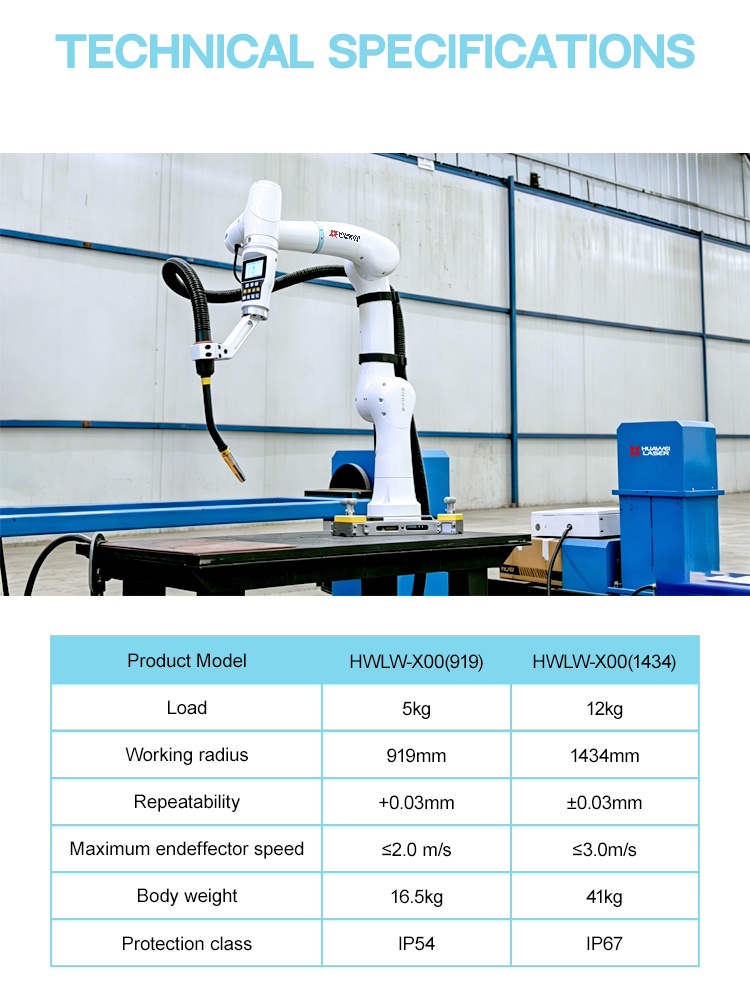

Product Specifications

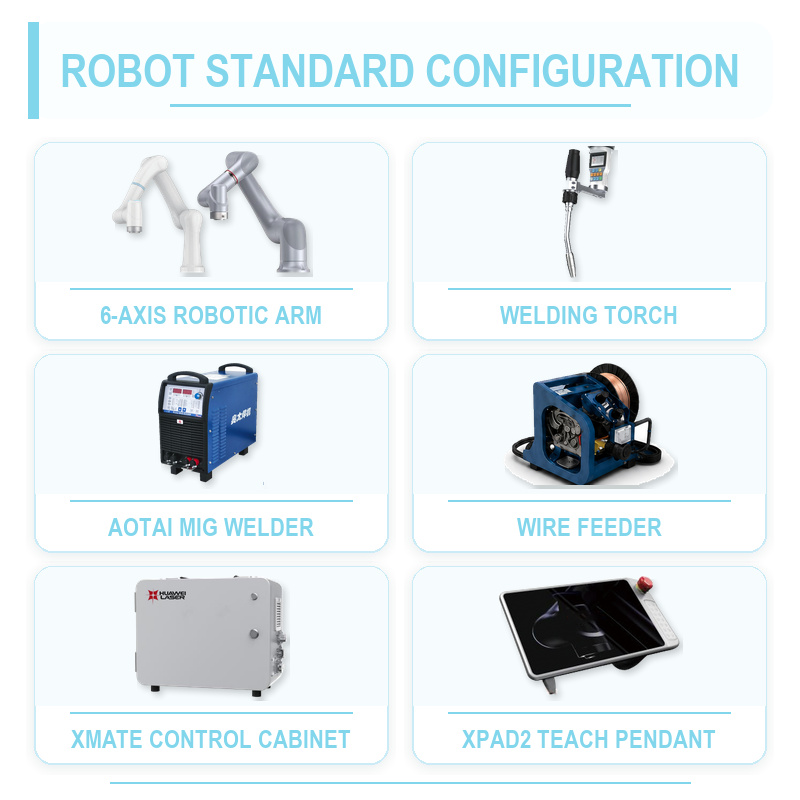

Robotic Welding System Configuration

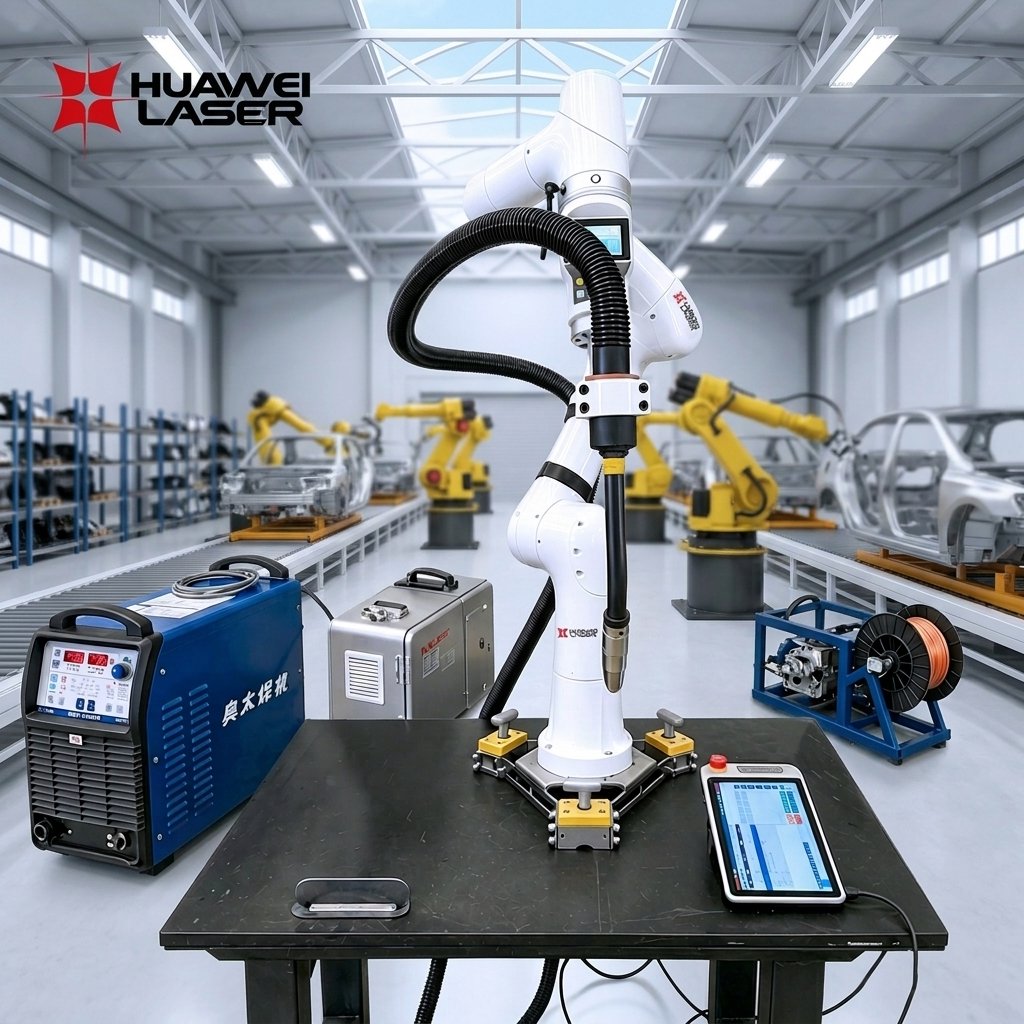

Huawei Laser provides a complete flexible welding workstation integrating robot motion control, welding equipment and programming systems.

Working Principle

The Automatic Welding Robot for Steel Structure Fabrication uses intelligent robotic control technology to complete welding tasks automatically according to preset welding programs.

During operation, the six-axis robot arm moves along the programmed trajectory while maintaining precise torch positioning, stable welding speed and consistent welding parameters.

By integrating motion control technology, welding process management and professional MIG welding equipment, the system provides:

Consistent weld quality for steel structures

Improved welding efficiency and production stability

Reduced dependence on manual welding operations

Flexible automation for different fabrication requirements

The robotic system enables manufacturers to achieve more efficient and reliable welding processes for steel frames, structural components and customized metal assemblies.

Welding Position Control

Robotic welding quality depends on accurate control of torch angle, travel direction and welding trajectory.

Huawei Laser collaborative welding systems use intelligent motion planning to maintain stable torch positioning during different welding positions.

Supported applications include:

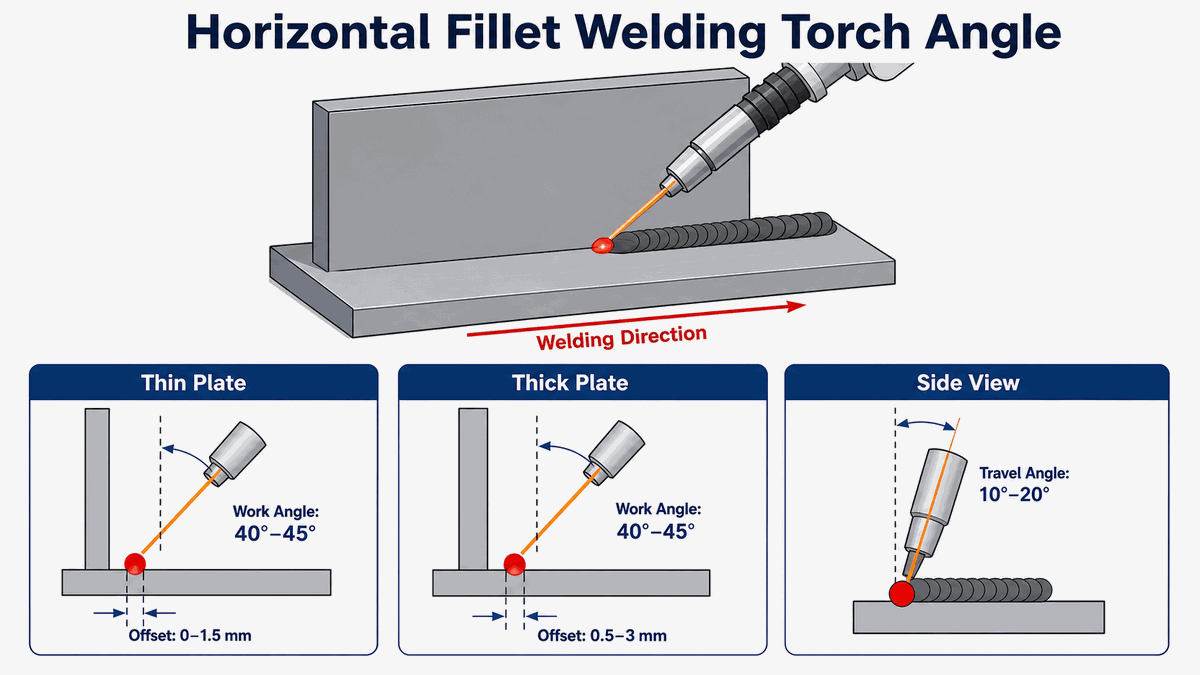

Horizontal Fillet Welding

Maintains accurate torch angle and movement direction to achieve stable weld formation.

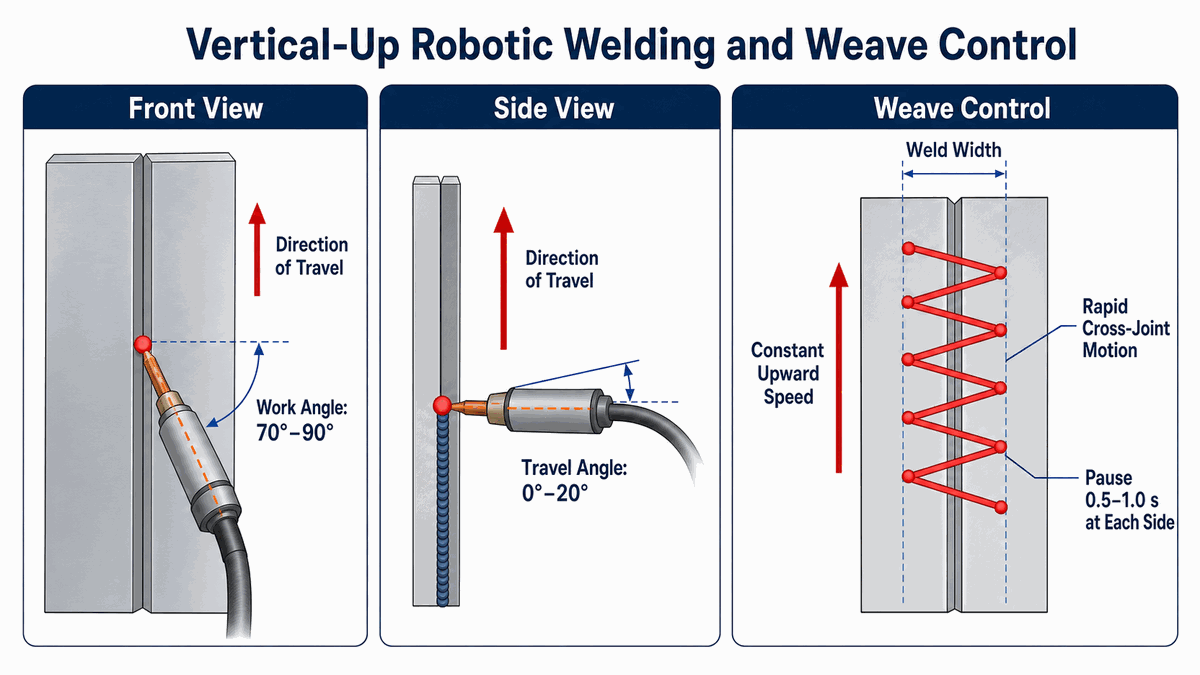

Vertical-Up Welding

Controls travel speed and welding path to improve molten pool stability.

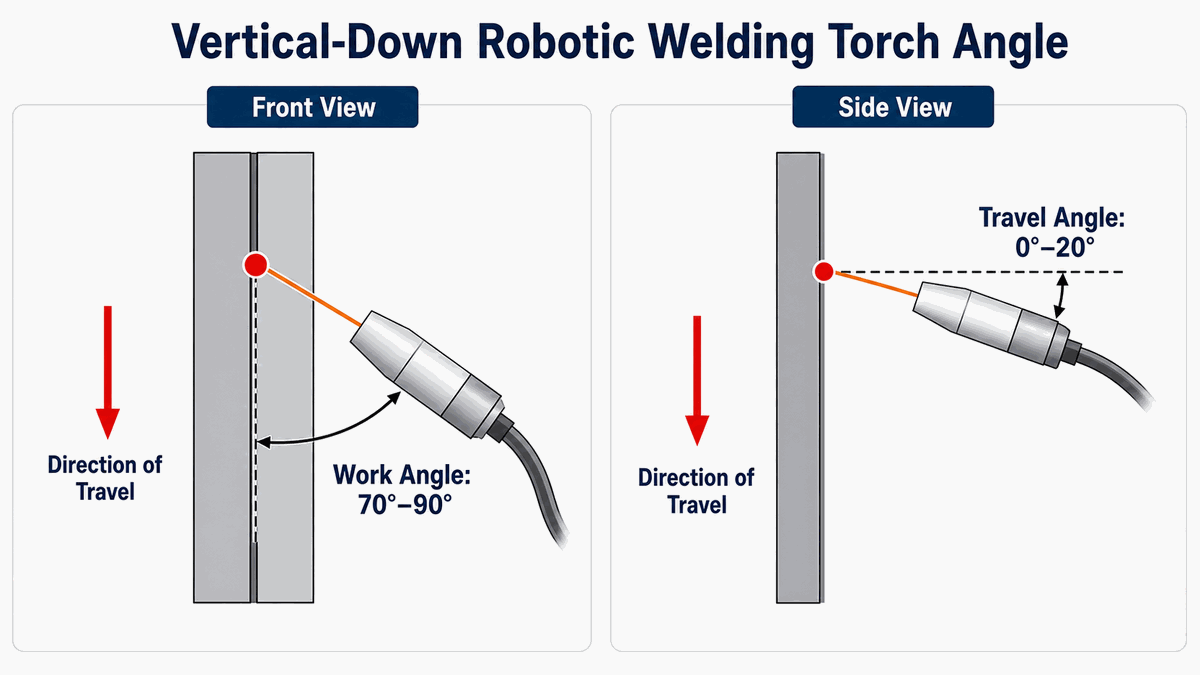

Vertical-Down Welding

Provides precise downward movement and stable welding performance.

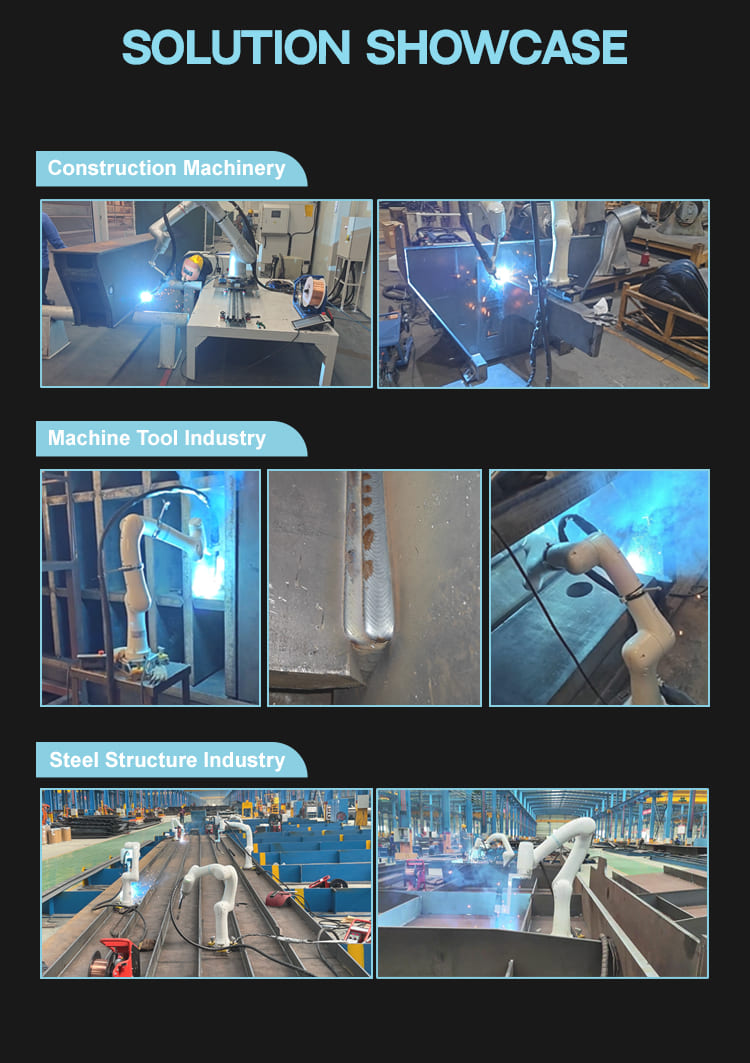

Application Fields

The Automatic Welding Robot for Steel Structure Fabrication is designed for industries that require flexible automation, stable welding performance and efficient production.

Metal Fabrication

The system is suitable for customized metal fabrication projects requiring different welding paths and frequent product changes.

Applications include:

Metal frames

Sheet metal structures

Customized brackets

Fabricated components

The flexible robot movement allows manufacturers to handle various workpieces while maintaining consistent welding quality.

Machinery Manufacturing

The collaborative welding robot provides reliable welding performance for machinery manufacturers producing industrial equipment and metal assemblies.

Applications include:

Machine frames

Equipment structures

Mechanical components

Industrial assemblies

With accurate motion control and stable welding operation, the system helps improve production efficiency and reduce manual welding workload.

Stainless Steel & Carbon Steel Products

The robot welding system supports common industrial metal materials and provides flexible welding solutions for different manufacturing requirements.

Suitable materials:

Stainless steel

Carbon steel

Mild steel

Other metal materials

The intelligent welding process helps achieve stable weld appearance and repeatable production results.

Automotive Components

For automotive component manufacturers, the collaborative welding robot provides consistent welding performance for customized and medium-volume production.

Applications include:

Metal brackets

Structural parts

Customized components

Automotive accessories

The flexible programming capability allows faster adaptation to different product models.

Customized Small-Batch Production

Unlike traditional fixed welding automation designed for large-volume production, collaborative robots provide greater flexibility for manufacturers with diverse production needs.

Applications include:

Prototype welding

Customized products

Low-volume manufacturing

Flexible production cells

The hand-guided teaching function helps operators quickly adjust welding programs and improve production responsiveness.

Factory Strength & Global Service

Huawei Laser is a professional laser equipment manufacturer specializing in laser welding, laser cutting and industrial automation solutions.

With experienced engineering teams, strict quality control and complete production capabilities, Huawei Laser provides reliable equipment and technical support for global customers.

Our advantages include:

Professional laser equipment manufacturing experience

Strict quality inspection before delivery

Stable production and supply capability

Customized equipment solutions

Technical support for different applications

With customers in 40+ countries and regions, Huawei Laser provides complete service support from equipment selection and installation guidance to operation training and after-sales assistance.

Professional services include:

Installation and operation guidance

Remote technical support

Welding process assistance

Maintenance guidance

Spare parts support

Huawei Laser is committed to building long-term partnerships with global manufacturers by providing reliable laser solutions and continuous technical support.

FAQ

1. What is a collaborative welding robot?

A automatic welding robot is an intelligent robotic welding system that combines robot automation, force control and flexible programming technology to improve welding efficiency and production adaptability.

2. What is the repeatability accuracy of this robot?

The automatic welding robot provides ±0.02mm repeatability, helping maintain stable welding paths and consistent welding quality.

3. Is programming difficult for operators?

No. The system supports hand-guided teaching, allowing operators to quickly create and modify welding programs without complicated programming procedures.

4. What welding process does the robot support?

The standard configuration supports MIG welding applications. Other welding solutions can be customized according to customer requirements.

5. Can Huawei Laser customize the robotic welding system?

Yes. Huawei Laser provides customized solutions based on:

Workpiece size

Welding requirements

Production environment

Factory layout

6. Does Huawei Laser provide OEM and ODM services?

Yes. Huawei Laser provides OEM, ODM and customized automation solutions for global distributors and manufacturers.
