Automatic Welding Robot for Metal Fabrication and Machinery Manufacturing

Automatic Welding Robot for Metal Fabrication and Machinery Manufacturing from Huawei Laser is an advanced robotic welding solution designed to help manufacturers improve welding efficiency, consistency and production flexibility. Equipped with a high-precision six-axis collaborative robot arm, professional welding components and intelligent control systems, it provides stable automatic welding performance for metal fabrication and machinery manufacturing applications. With features including full-joint force control, ±0.03mm repeatability, flexible multi-angle motion and intelligent trajectory planning, this welding robot can handle complex welding paths while reducing manual operation requirements. Huawei Laser provides reliable robotic welding solutions for global customers seeking higher productivity, safer operation and consistent welding quality.

Send Inquiry

Product Description

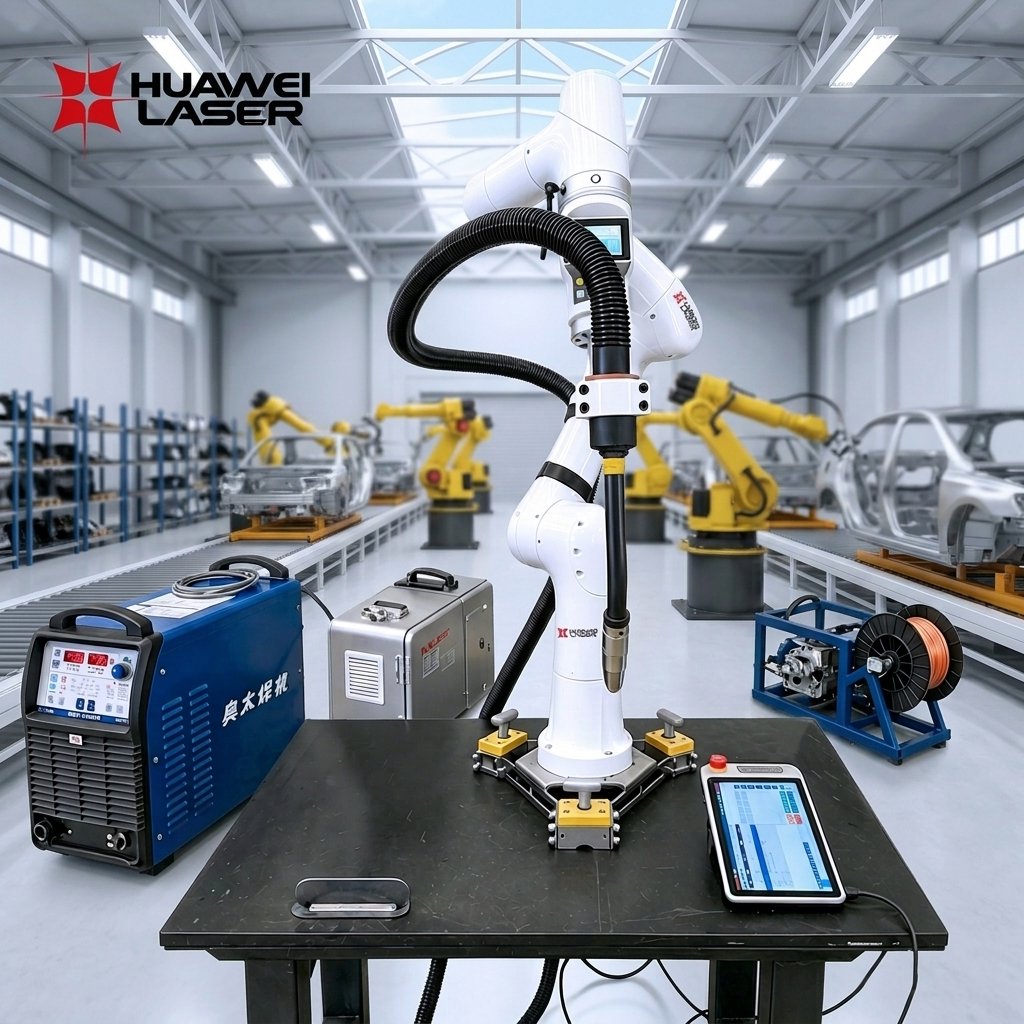

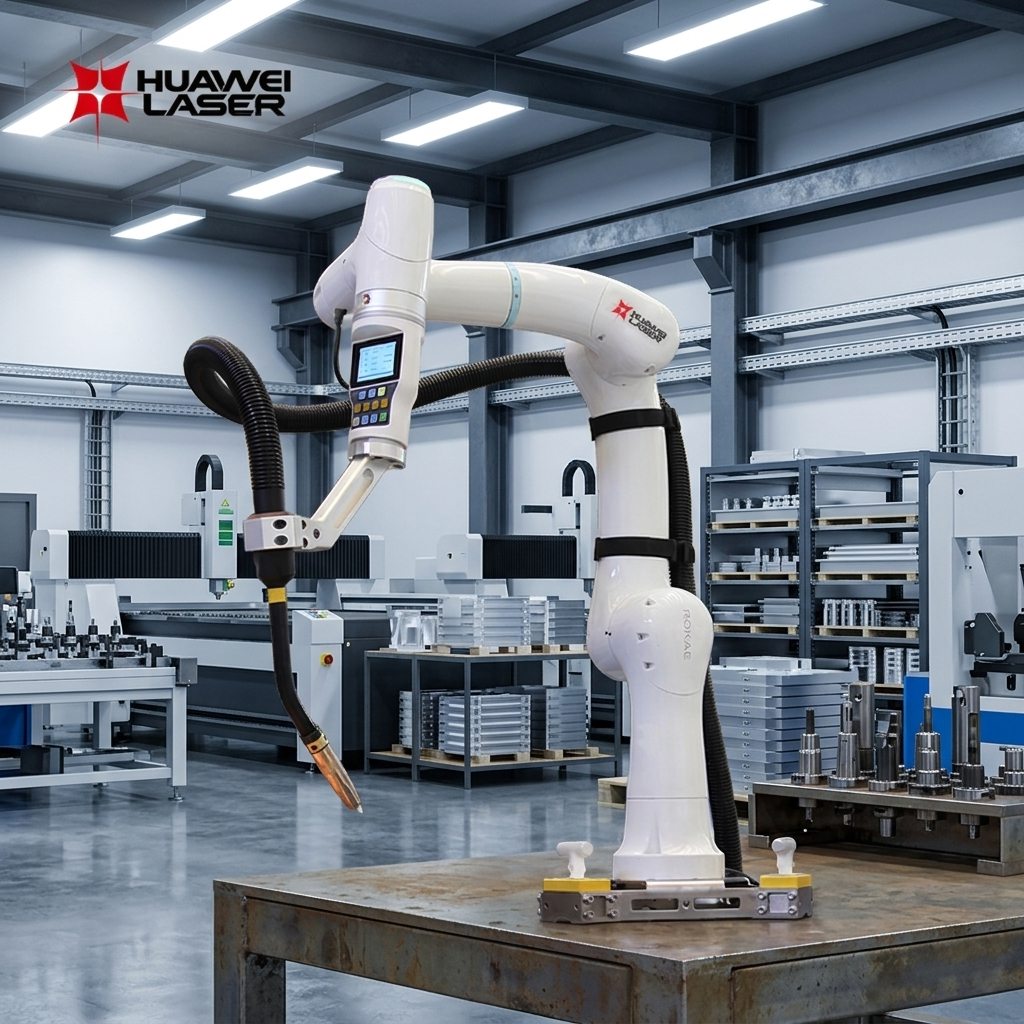

Automatic Welding Robot for Metal Fabrication and Machinery Manufacturing developed by Huawei Laser is an intelligent robotic welding system designed for modern industrial welding applications. Combining a six-axis collaborative robot arm, advanced motion control technology and professional welding equipment, this system provides an efficient solution for manufacturers who require stable welding quality and flexible production capability.

Designed for metal fabrication, machinery manufacturing and customized welding projects, the robot system helps enterprises reduce dependence on manual welding while improving production consistency. With flexible installation options, intelligent programming functions and strong environmental adaptability, Huawei Laser delivers reliable automation solutions for different industrial welding requirements.

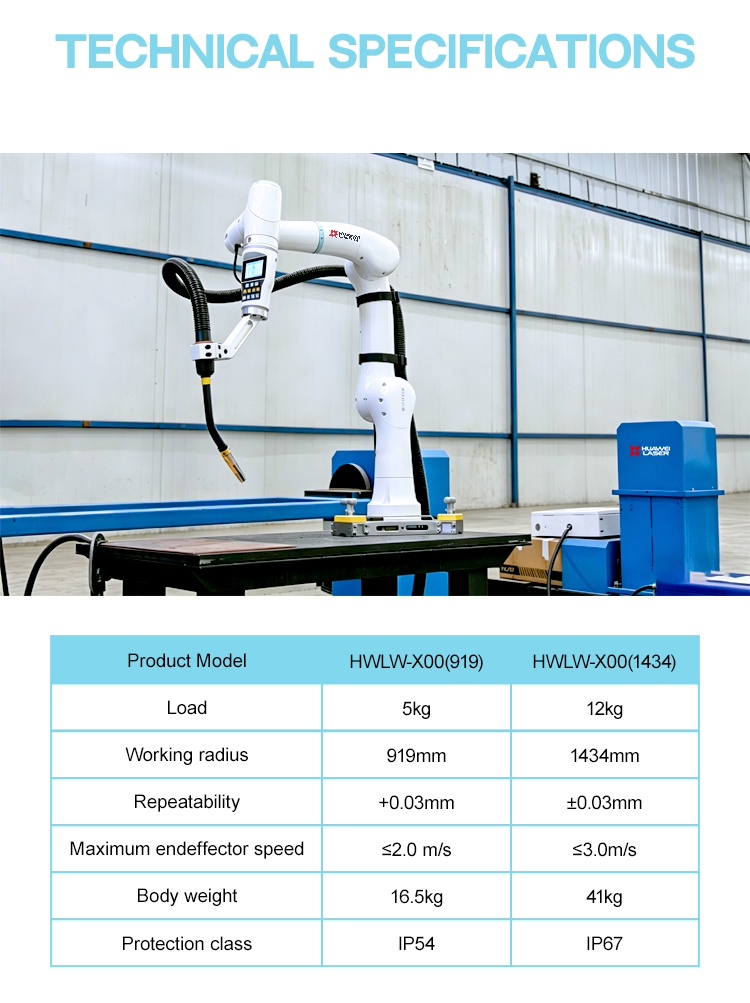

Robot Model Selection

Model	HW-X00-919	HW-X00-1434
Payload	5kg	12kg
Working Radius	919mm	1434mm
Repeatability	±0.03mm	±0.03mm
Maximum Tool Speed	≤2.0m/s	≤3.0m/s
Robot Weight	16.5kg	41kg
Application	Small & medium workpieces	Large workpieces
Suitable Welding	MIG welding	Heavy welding / Laser welding
Main Advantage	Lightweight and flexible	Longer reach and higher load capacity

Product Advantages

1. Smoother Motion & Easy Teaching

Equipped with full-joint force control and high-precision torque sensors, the robot provides smoother motion and supports hand-guided teaching for faster programming.

Key Features:

Torque measurement resolution: 0.1Nm

Force control frequency: >10kHz

Hand-guided teaching force: <3N

2. High Precision Welding Performance

Advanced motion control algorithms and vibration suppression technology ensure accurate and stable welding paths.

Key Features:

Repeatability accuracy: ±0.03mm

Path accuracy optimization

Stable trajectory control

3. Flexible Six-Axis Motion

The six-axis collaborative robot supports wide-angle movement, enabling complex welding paths and multi-position welding applications.

Key Features:

±360° joint rotation

Multi-angle welding

Intelligent trajectory planning

4. Safe Human-Robot Collaboration

With collision detection and force sensing protection, the robot supports safer cooperation between operators and machines.

Key Features:

Collision detection

Automatic stop protection

No large safety fence required

5. Industrial-Grade Protection

Designed for demanding welding environments with high protection performance.

Key Features:

IP67 robot protection

Dustproof & waterproof design

Suitable for welding workshops

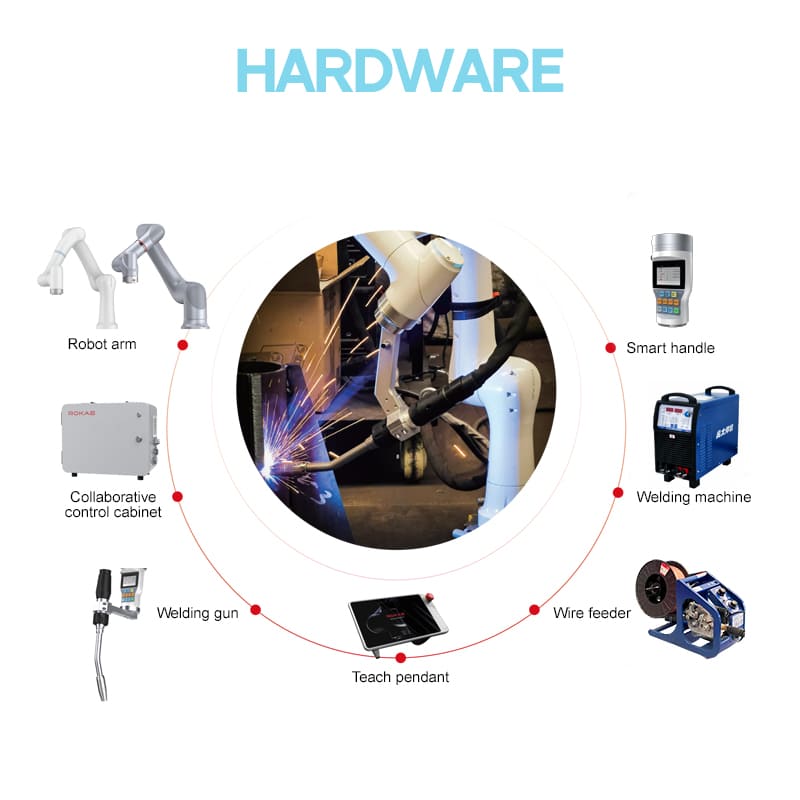

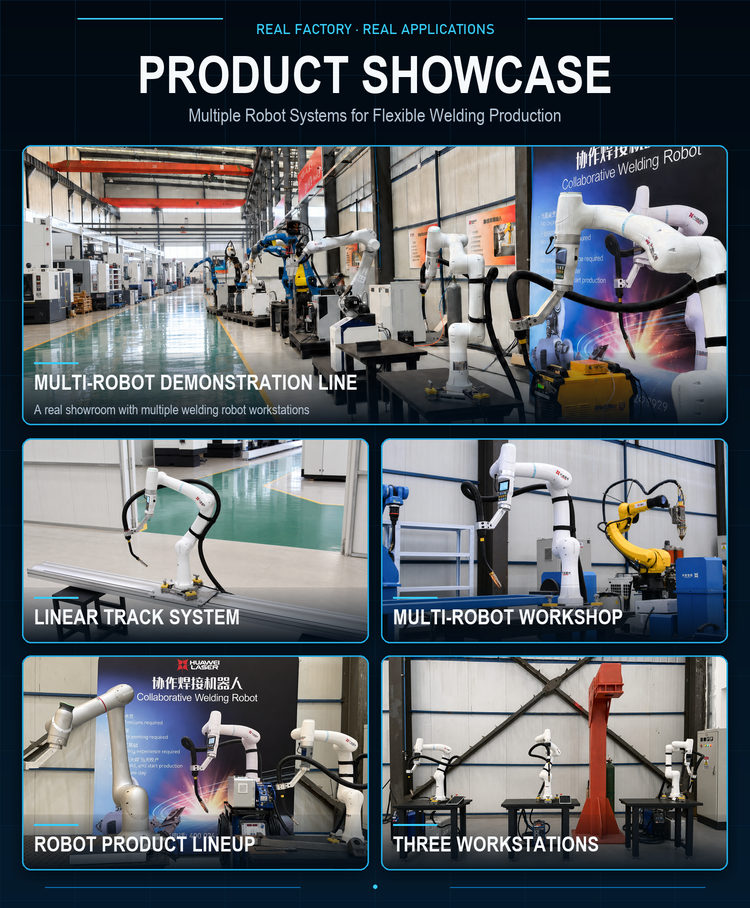

Robotic Welding System

Complete Standard Robot Workstation Configuration

Huawei Laser provides a complete robotic welding workstation integrating robot motion control, welding equipment and intelligent programming systems. The standard system includes six core components to deliver stable and efficient automated welding performance.

Component	Main Function	Key Features
6-Axis Robotic Arm	Carries welding torch and performs flexible welding movements	Payload 5kg/12kg, 919mm/1434mm reach, ±0.03mm repeatability
Welding Torch	Executes precise welding operations	XYZ calibration, <0.6mm motion error, parameter compensation
AOTAI MIG Welder	Provides stable welding power output	Stable arc, low spatter, continuous industrial welding
Wire Feeder	Ensures continuous wire delivery	Smooth feeding, accurate speed control
xMate Control Cabinet	Controls robot motion and system operation	IP54 protection, intelligent motion control
xPad2 Teach Pendant	Robot programming and operation interface	10.1-inch LCD, graphic programming

Optional Configurations

Huawei Laser provides flexible expansion options to adapt robotic welding systems to different production requirements.

Optional Configuration	Function
Smart Handle	Hand-guided teaching for fast programming
Laser Sensor	Automatic seam tracking and welding deviation compensation
Magnetic Base	Quick robot installation and positioning
Non-Powered Trolley	Easy movement and workstation adjustment
Linear Track	Extends robot working range
Inverted Multi-Robot Gantry	Supports multi-robot collaborative production
Simple Inverted Gantry	Saves floor space for large workpiece welding

Factory Strength

As a professional laser and automation equipment manufacturer, Huawei Laser focuses on providing reliable industrial automation solutions for global customers.

With strong R&D capabilities, strict quality control and complete technical support, Huawei Laser delivers robotic welding systems designed for stable operation and long-term industrial use.

Global Service Capability:

40+ Countries and regions

50+ Robot products

8 Global branches

Huawei Laser continues to provide efficient automation solutions for metal fabrication, machinery manufacturing and industrial production.

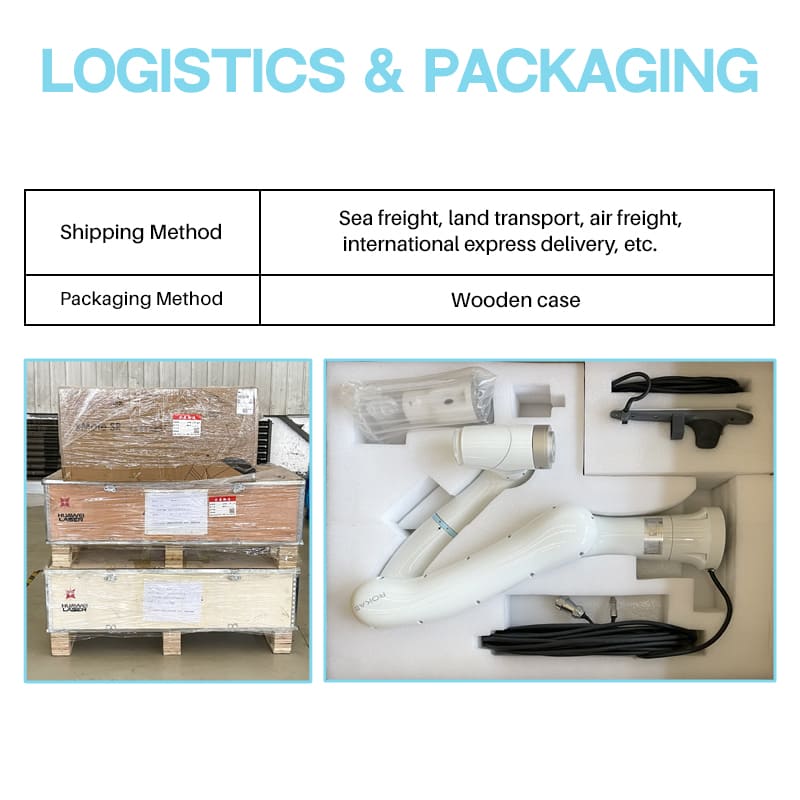

After-sales Service & Logistics

Professional After-sales Support

Huawei Laser provides comprehensive technical support to ensure customers can operate their robotic welding systems smoothly.

Services include:

Installation guidance

Remote technical support

Robot operation training

Welding process assistance

Maintenance support

Spare parts service

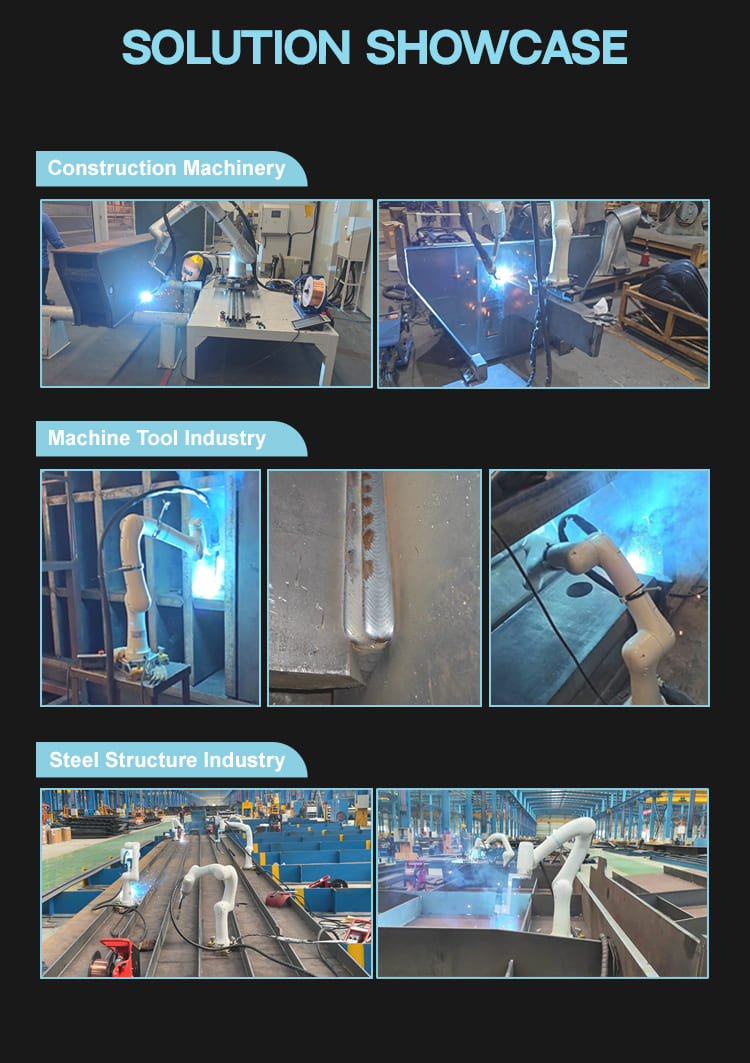

Designed for More Industries

Automotive Manufacturing

The automatic welding robot provides consistent and efficient welding performance for automotive components, metal structures and customized parts, helping manufacturers improve production efficiency and welding quality.

Metal Fabrication

Suitable for sheet metal processing, steel structures and customized fabrication projects requiring stable welding accuracy and repeatable performance.

Machinery Manufacturing

Ideal for machinery components, equipment frames and industrial parts that require continuous and reliable welding operations.

Steel Structure Production

The robotic welding system helps improve welding consistency for large metal structures while reducing manual welding workload.

Heavy Equipment Manufacturing

With flexible movement and higher payload options, the system is suitable for demanding welding applications in heavy machinery production.

Custom Welding Applications

Huawei Laser provides flexible robotic welding solutions for customized production requirements, including different workpieces, welding processes and factory layouts.

Contact Us

Looking for an efficient robotic welding solution for your manufacturing needs?

Contact Huawei Laser today for professional Automatic Welding Robot solutions, customized configurations and complete technical support to improve your welding efficiency and production capability.
