Robot Welding Machine for Stainless Steel Fabrication Applications

Robot Welding Machine for Stainless Steel Fabrication Applications developed by Huawei Laser is designed for manufacturers who want to make welding more consistent without turning every production change into a complicated programming job.

For stainless steel fabrication, weld appearance and repeatability matter just as much as welding speed. A robot can follow a programmed welding path with consistent movement, helping reduce variations that naturally occur during manual operation.

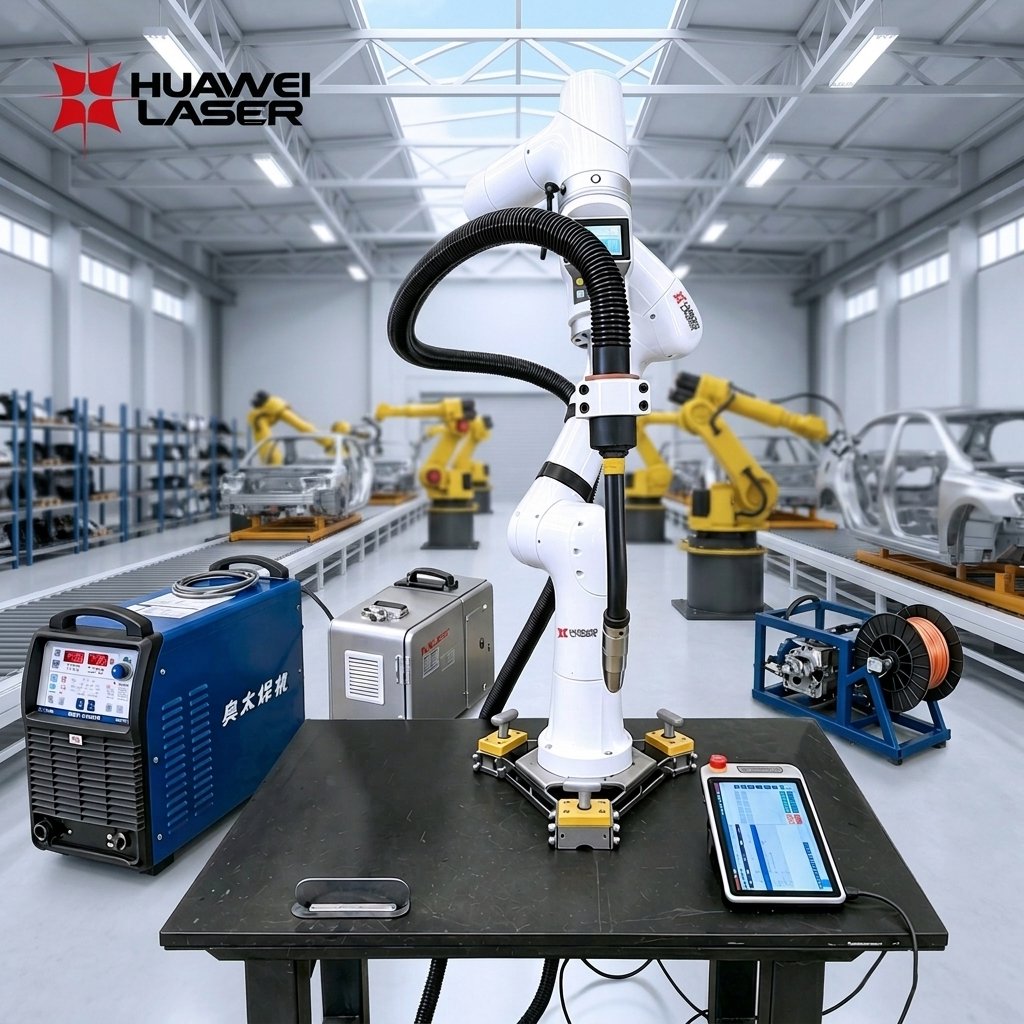

The system combines a six-axis robot arm, welding torch, welding power source, wire feeder and control system into a complete robotic welding workstation. With a repeatability of ±0.02mm, the robot provides precise movement for repeatable welding tasks. For manufacturers working with different stainless steel products, the system can also be configured with functions such as hand-guided teaching, laser seam tracking and other workstation options according to production requirements.

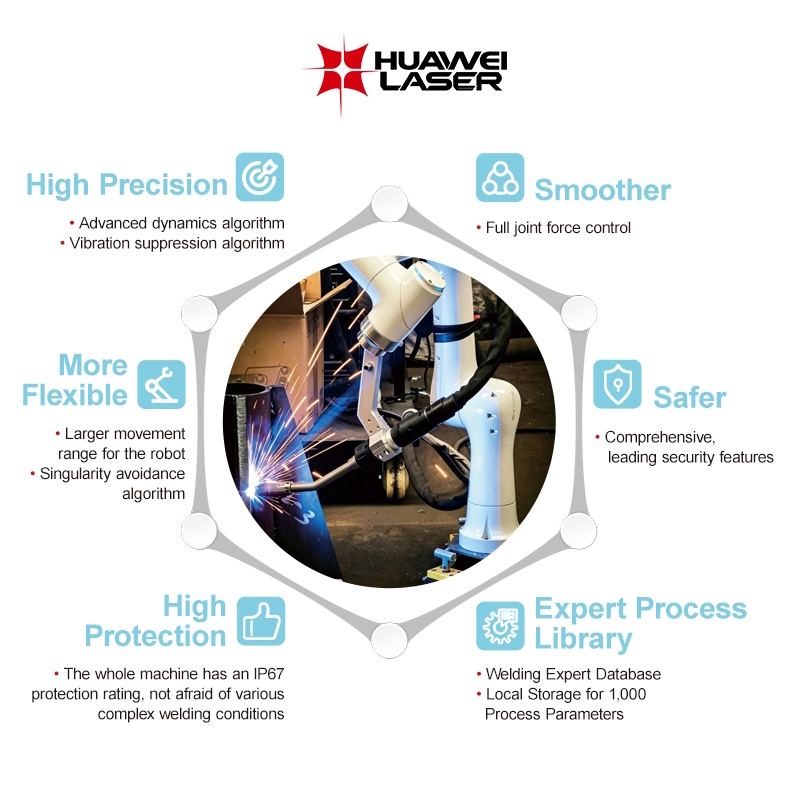

Product Advantages

1. Consistent Welding with ±0.02mm Repeatability

Manual welding quality can vary with operator experience, working position and production fatigue. The robotic system follows programmed paths with a repeatability of ±0.02mm, helping keep welding movement more consistent from one workpiece to the next.

Key Benefits:

±0.02mm repeatability

Consistent welding trajectory

Stable torch positioning

Reduced variation between workpieces

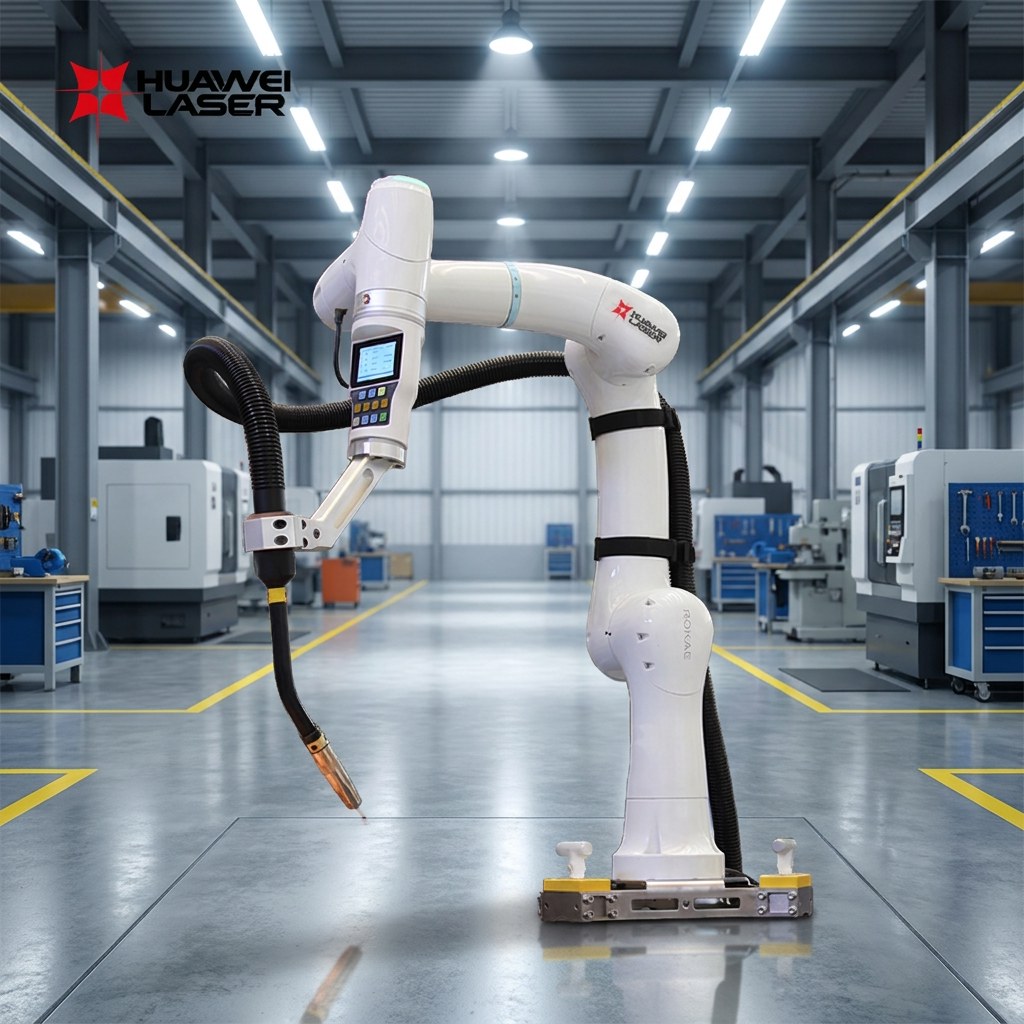

2. Six-Axis Movement for Stainless Steel Structures

Stainless steel products rarely come in only one shape. Frames, cabinets, equipment components and customized structures can require different welding angles and positions.

The six-axis robot arm provides flexible movement, allowing the welding torch to approach different joints and workpiece positions without relying on a fixed movement direction.

Key Benefits:

Six-axis flexible movement

Multi-angle welding

Suitable for complex workpieces

Flexible welding path control

3. Hand-Guided Teaching Makes Programming Easier

Not every manufacturer has a dedicated robot programmer. That's why the system supports hand-guided teaching.

Operators can guide the robot along the required welding path and record the movement, making it easier to create or adjust programs when production changes. The system uses full-joint force control and torque sensing technology to support this teaching method.

Key Benefits:

Hand-guided teaching

Faster path creation

Easier program adjustment

Lower programming difficulty

4. Designed for Flexible Stainless Steel Fabrication

The robot is not limited to one fixed product. It can be integrated into different workstations according to the customer's workpiece size, production volume and factory layout.

For businesses handling customized stainless steel products or multiple product models, this flexibility can be particularly useful.

Suitable for:

Stainless steel frames

Stainless steel cabinets

Equipment structures

Metal components

Customized stainless steel products

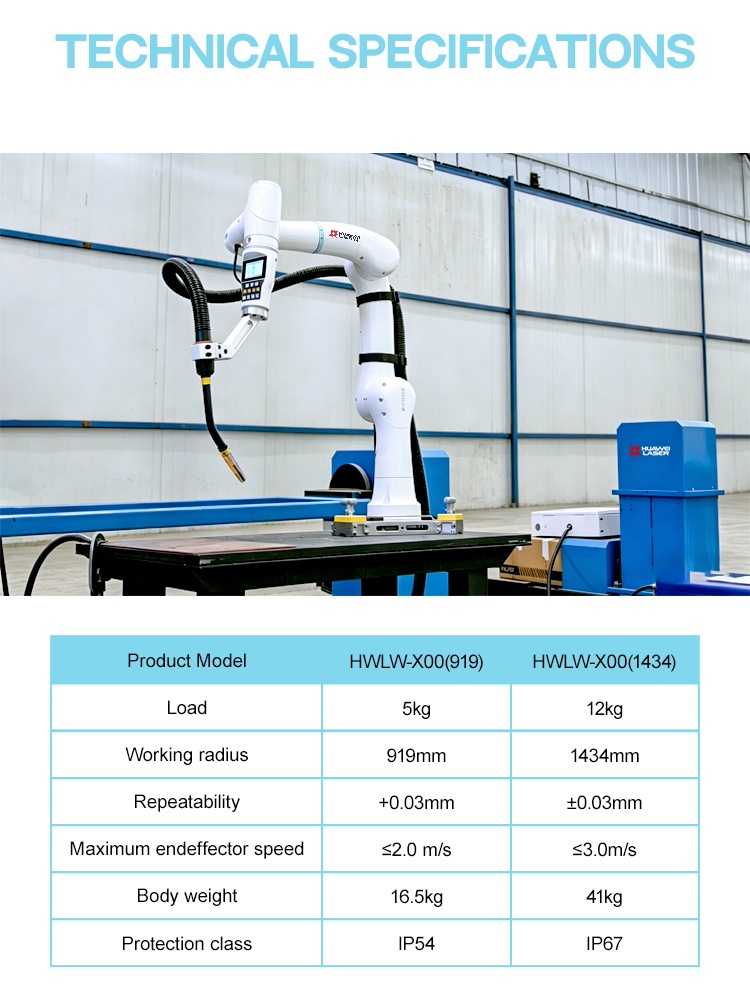

Robot Specifications

Working Radius Options

The robot is available with 919mm and 1434mm working radius options, allowing manufacturers to select a suitable configuration according to workpiece size and welding area.

919mm — suitable for compact welding cells and small to medium workpieces

1434mm — provides a larger working range for bigger workpieces and wider welding areas

Optional Configurations

Different factories have different welding habits and workstation layouts. Huawei Laser provides optional functions that can be added according to the actual application.

Working Principle

The Robot Welding Machine for Stainless Steel Fabrication Applications works by combining robotic motion control with the welding system.

After the welding path is programmed, the six-axis robot moves the welding torch along the required trajectory while maintaining the programmed welding direction and movement.

For repeated production, the same program can be reused and adjusted when necessary, helping manufacturers achieve more consistent welding results across different batches.

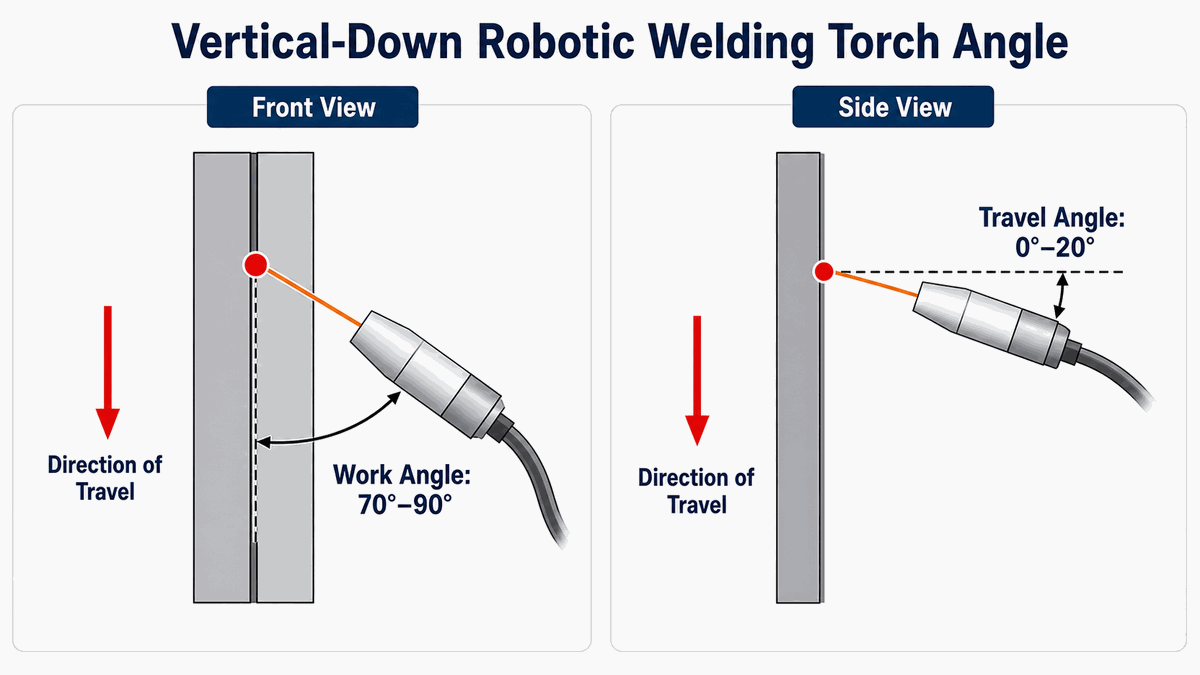

Welding Position Control

For stainless steel fabrication, simply reaching the welding joint is not enough. Torch angle, travel direction and movement speed all influence the final weld.

The robotic system can be programmed for different welding positions, including:

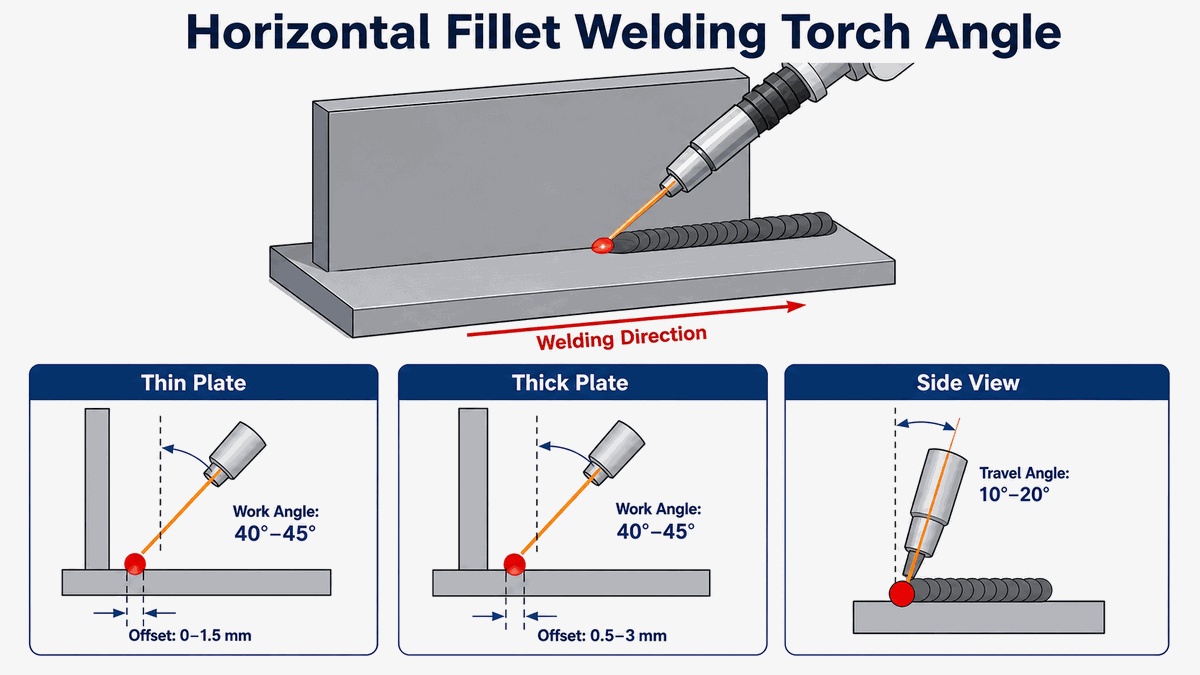

Horizontal fillet welding

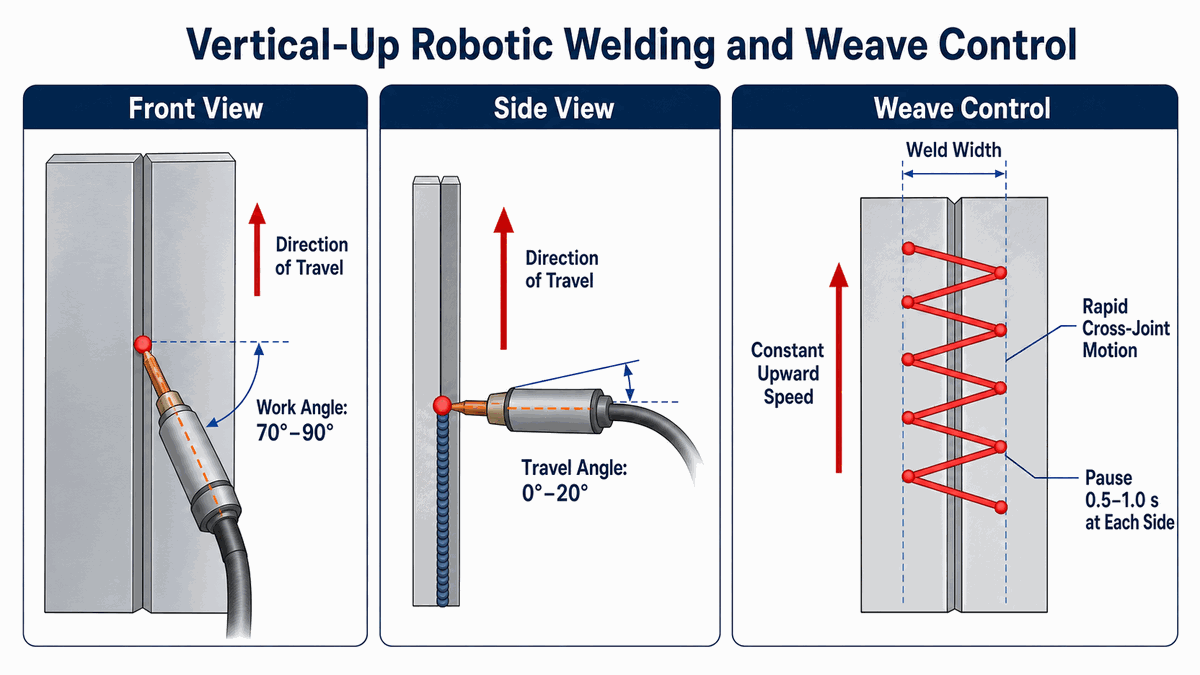

Vertical-up welding

Vertical-down welding

Precise trajectory control helps maintain a more consistent torch position and welding path during these operations.

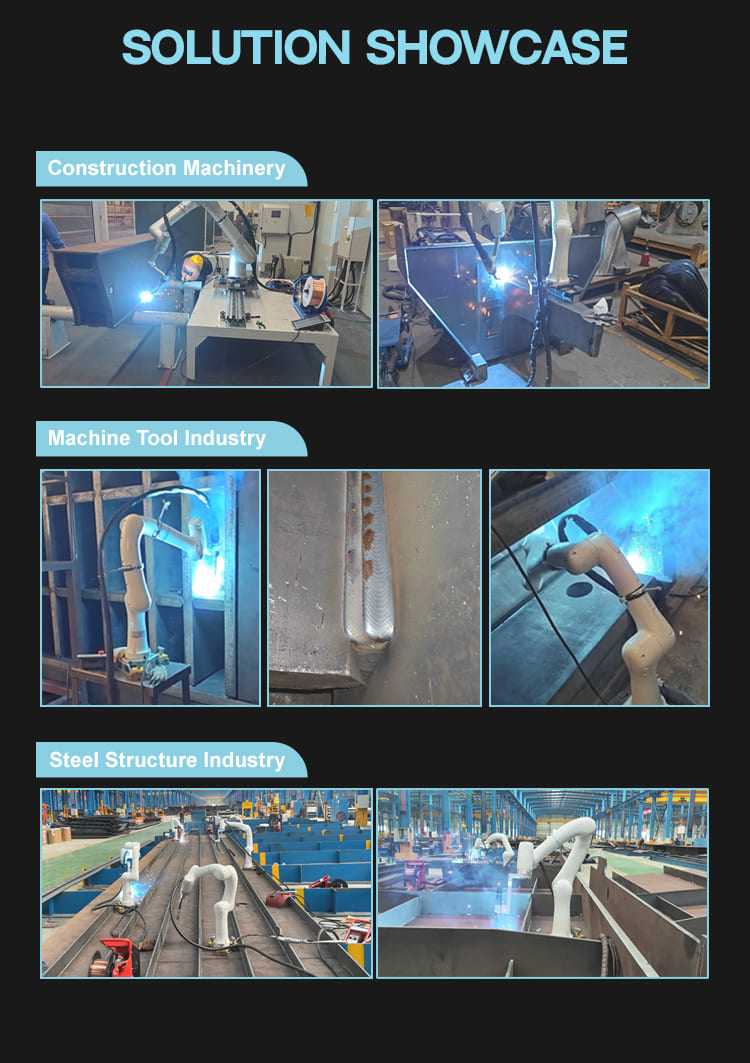

Application Fields

Stainless Steel Fabrication

Designed for stainless steel frames, cabinets, equipment structures and customized stainless steel components where repeatable welding quality is important.

Metal Fabrication

Suitable for metal structures, fabricated components and customized products requiring stable automated welding.

Machinery Manufacturing

Can be integrated into the production of machine frames, equipment components and mechanical assemblies.

Automotive Components

Suitable for selected automotive metal components and brackets requiring repeatable welding paths.

Customized Production

The programmable system is suitable for manufacturers producing multiple product models, prototypes or small-batch customized orders.

Why Choose Huawei Laser?

A welding robot is not simply about replacing a person with a machine. For many manufacturers, the real value is having a welding process that is easier to repeat, easier to adjust and less dependent on individual operator experience.

Huawei Laser provides robotic welding systems with equipment integration, customized workstation options and technical support for different manufacturing requirements.

Huawei Laser provides:

Robotic welding equipment

Customized workstation solutions

Installation guidance

Robot operation training

Welding process assistance

Remote technical support

Maintenance support

Spare parts service

The company currently serves customers in 40+ countries and regions, with 50+ robot products developed and 8 global service locations according to its existing company materials.

Contact Huawei Laser

Make Stainless Steel Welding More Consistent

Looking for a reliable Robot Welding Machine for Stainless Steel Fabrication Applications?

Huawei Laser provides robotic welding solutions for stainless steel fabrication, metal manufacturing and customized production.

Tell us about your material, workpiece size, welding process and production requirements, and our team can help you select a suitable robot configuration and workstation solution.

Huawei Laser — practical welding automation for manufacturers who want consistent results without making production more complicated.
