Portable Handheld Laser Welding Machine for Sheet Metal Fabrication

The Portable Handheld Laser Welding Machine for Sheet Metal Fabrication is designed for manufacturers and workshops that need flexible welding equipment without a large or complicated setup.

Unlike fixed welding systems, the handheld design allows operators to move around the workpiece and weld different shapes, angles and positions directly. With air cooling, continuous working mode and a 0.58kg welding gun, the machine is built around practical day-to-day operation. Huawei Laser offers the HWAIR-800 and HWAIR-1200 models, giving customers two power options for different metal fabrication requirements.

Product Advantages

1. Portable Design for Flexible Welding

The Portable Handheld Laser Welding Machine for Sheet Metal Fabrication is designed for flexible use across different workstations.

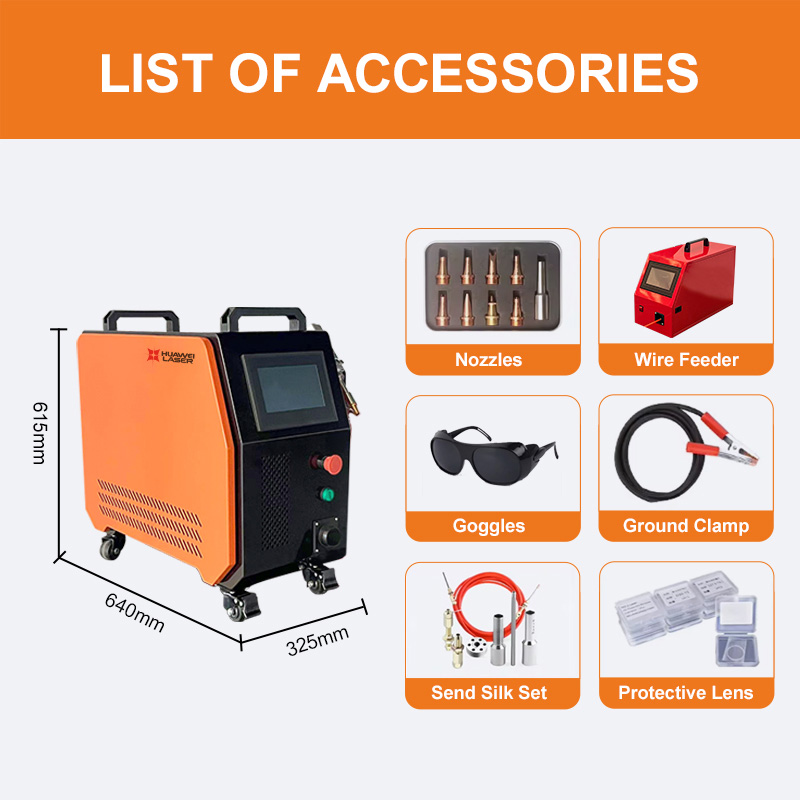

The HWAIR-800 measures 640 × 325 × 615mm and weighs ≤50kg, making it easier to move and position according to different production needs.

Key Benefits:

Compact machine structure

Easy to move between workstations

Flexible equipment placement

Suitable for workshops with limited space

Convenient for different welding tasks

2. Lightweight 0.58kg Welding Gun for Easier Handling

The machine is equipped with the SUPER Laser SUP23T handheld welding head, with a welding gun weight of approximately 0.58kg.

A lightweight welding gun makes it easier for operators to change welding angles and reach different areas of the workpiece during manual welding.

Key Benefits:

Approx. 0.58kg welding gun

Easier handheld operation

Flexible welding angles

Better access to complex positions

Reduced handling burden

3. Air Cooling for Easy Setup and Maintenance

The HWAIR series uses an integrated air cooling system, eliminating the need for a separate external water chiller.

With fewer external components, the machine is easier to arrange, install and maintain in daily workshop use.

Key Benefits:

Integrated air cooling

No external water chiller

Simple equipment setup

Easier daily maintenance

More convenient workshop arrangement

4. 800W and 1200W Power Options for Different Jobs

Huawei Laser provides 800W and 1200W configurations, giving users the flexibility to select a suitable power level for their welding requirements.

The 800W configuration is suitable for general metal fabrication, while the 1200W configuration provides higher laser output when greater welding capability is needed.

Both configurations operate in continuous working mode.

Power Options:

HWAIR-800 — 800W

HWAIR-1200 — 1200W

Fiber laser technology

Continuous working mode

5. 0–4mm Laser Swing for Flexible Weld Seam Control

The machine provides a 0–4mm laser swing width, allowing operators to adjust the laser movement according to different weld joints.

This is useful when working with sheet metal components, corners and customized metal structures where welding conditions can vary from one workpiece to another.

Key Benefits:

Adjustable 0–4mm swing width

Flexible weld seam control

Suitable for different joint conditions

Supports customized fabrication

Convenient for varied workpieces

6. Fiber Laser Welding with Cleaner Weld Results

The fiber laser concentrates energy on the welding area, creating localized heating during the welding process.

This helps limit unnecessary heat input and can reduce deformation and additional finishing work when compared with conventional welding processes.

Key Benefits:

Concentrated laser energy

Reduced heat impact

Cleaner weld appearance

Less deformation

Reduced post-welding finishing

Technical Specifications

Welding Performance

The machine uses concentrated fiber laser energy to create a localized melting area at the welding joint. Its 800W and 1200W configurations provide different levels of laser output for metal fabrication applications, while the 0–4mm laser swing width allows adjustment for different weld joint requirements. The continuous working mode is designed for regular welding operations rather than intermittent pulse welding.

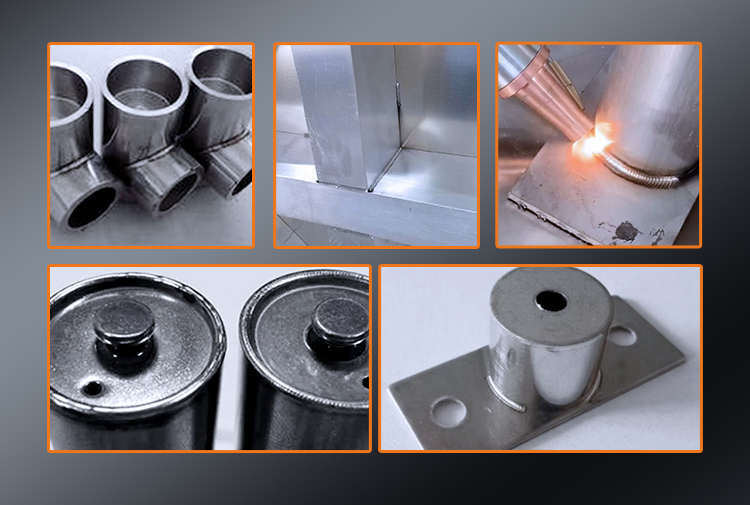

Applications

Sheet Metal Fabrication

The machine is suitable for welding sheet metal components such as:

Metal cabinets

Enclosures

Panels

Brackets

Sheet metal structures

Stainless Steel Products

Suitable for stainless steel products where weld appearance and flexible handheld operation are important.

Typical applications include:

Kitchen equipment

Stainless steel furniture

Metal enclosures

Decorative metal products

Carbon Steel Fabrication

The machine can be used for carbon steel components and fabricated structures, including:

Steel frames

Metal brackets

Machine components

Customized steel parts

Hardware Manufacturing

The compact welding system is suitable for hardware workshops producing different metal components and customized products.

Repair & Maintenance

The handheld configuration allows operators to access different areas of a workpiece, making it suitable for general metal repair and maintenance welding.

Why Choose Huawei Laser?

For everyday metal fabrication, welding equipment needs to be more than powerful. It needs to be easy to move, simple to set up and comfortable enough for operators to use throughout the working day.

The Portable Handheld Laser Welding Machine for Sheet Metal Fabrication combines these practical requirements in one compact system.

Huawei Laser provides:

800W and 1200W configurations

Fiber laser technology

Integrated air cooling

Lightweight SUP23T welding head

Continuous working mode

MAX / Raycus laser source options

Customized equipment solutions

Technical support

FAQ

1. What power options are available?

The HWAIR series is available in 800W and 1200W configurations.

2. Is the machine pulse welding or continuous welding?

The machine uses continuous working mode.

3. Does the machine require a water chiller?

No. The HWAIR series uses an integrated air cooling system.

4. How heavy is the welding gun?

The SUPER Laser SUP23T welding gun weighs approximately 0.58kg.

5. What materials can it weld?

The machine is suitable for carbon steel, stainless steel, aluminum and other metal materials.

6. What is the laser swing width?

The laser swing width is 0–4mm.

7. What laser sources are available?

Huawei Laser provides MAX and Raycus laser source options.

Contact Huawei Laser

Looking for a Portable Handheld Laser Welding Machine for Sheet Metal Fabrication?

Huawei Laser provides compact fiber laser welding solutions with 800W and 1200W power options, air cooling and flexible handheld operation.

Contact Huawei Laser to discuss your material, welding requirements and equipment configuration.
