Guide to Laser Welding Accessories for Industrial Applications

In industrial laser welding applications, the correct selection of accessories and safety equipment can not only improve welding quality but also ensure stable equipment operation and personnel safety. The following is a brief introduction to some common and important laser welding accessories and auxiliary equipment.

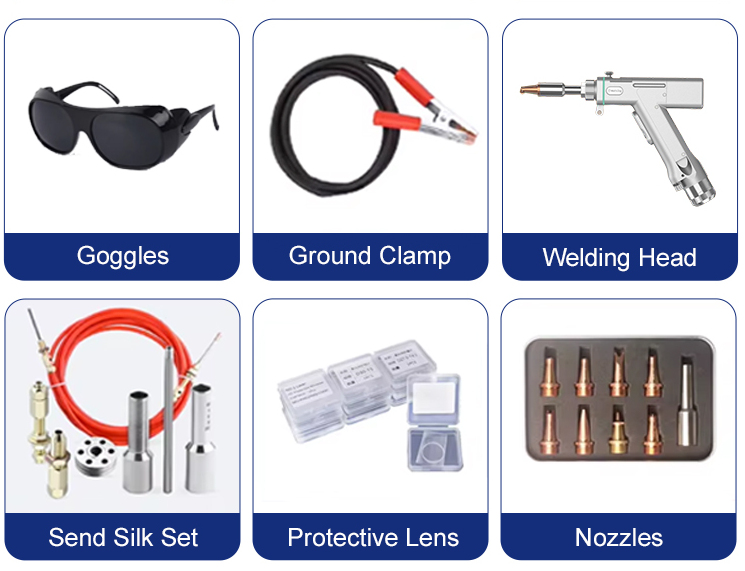

1. Welding and Optical Core Components

Laser Welding Wire

Function

Laser welding wire is used to fill the weld seam, improving welding strength and forming quality.

Features

The appropriate type of welding wire needs to be determined based on the characteristics of the welding material.

It has high adaptability to the base material.

Wide range of applications, uniform weld seam composition.

Laser Welding Nozzle

Function

The nozzle protects the welding material and controls the direction and shape of the laser beam, ensuring stability and accuracy during the laser welding process.

Features

It can protect the welding material from overheating.

The gas channel provides protective gas to prevent oxidation and other adverse reactions.

Welding stability and weld seam quality can be improved by optimizing parameters such as structural form, nozzle size, gas type, and flow rate.

Different welding requirements require different nozzle structures and nozzle sizes.

Laser Lens

Function

Laser lenses are used to focus or collimate the laser beam, directly affecting welding accuracy and energy density.

Features

High transmittance, high temperature resistance;

Requires regular cleaning and replacement;

It is a key optical component affecting welding quality.

2. Safety Protection and Operation Guarantee Equipment

Laser Safety Glasses

Function

Used to protect operators’ eyes from laser radiation damage.

Features

Confirm the laser wavelength and customize for different laser wavelengths;

Laser Safety Barrier

Function

Blocks high-power laser beams, protecting eyes and skin from laser damage.

Features

Multi-layer protection, can block Class 4 lasers, complies with EN12254 standard.

Modular design, easy to build, relocate or expand.

Optional windows for quick access by personnel and tools.

Stable structure, heavy base, equipped with smooth braking wheels.

3. Gas Source and Auxiliary Equipment

Nitrogen Generator

Function

Provides stable nitrogen protective gas for laser welding.

Features

nitrogen generators provide gas purity up to 99.99%, ultra-pure nitrogen, ideal for welding and industrial use.

Helps to form bright, clean weld seams free of rust or marks.

Low energy consumption during long-term operation, saving costs.

Air Compressor

Function

Provides a stable air source for air knives, blowing, and some auxiliary systems.

Features

Compatible with various laser welding machines;

Helps cool the machine and prevent overheating;

Requires the use of a filtration and drying system.

4. Fixtures and Welding Auxiliary Equipment

Laser Welding Positioner

Function

The automatic positioner rotates and flips the workpiece to maintain it in the most suitable position for welding or processing.

Features

Suitable for various sizes, easily handling both large and small parts.

Increases the degrees of freedom of the workpiece, enabling complex trajectory welding.

A laser welding system is not just the welding machine itself, but also includes laser welding accessories, optical components, safety protection, air supply systems, and tooling accessories. Scientifically configuring these components can significantly improve welding quality, operational safety, and equipment lifespan.
