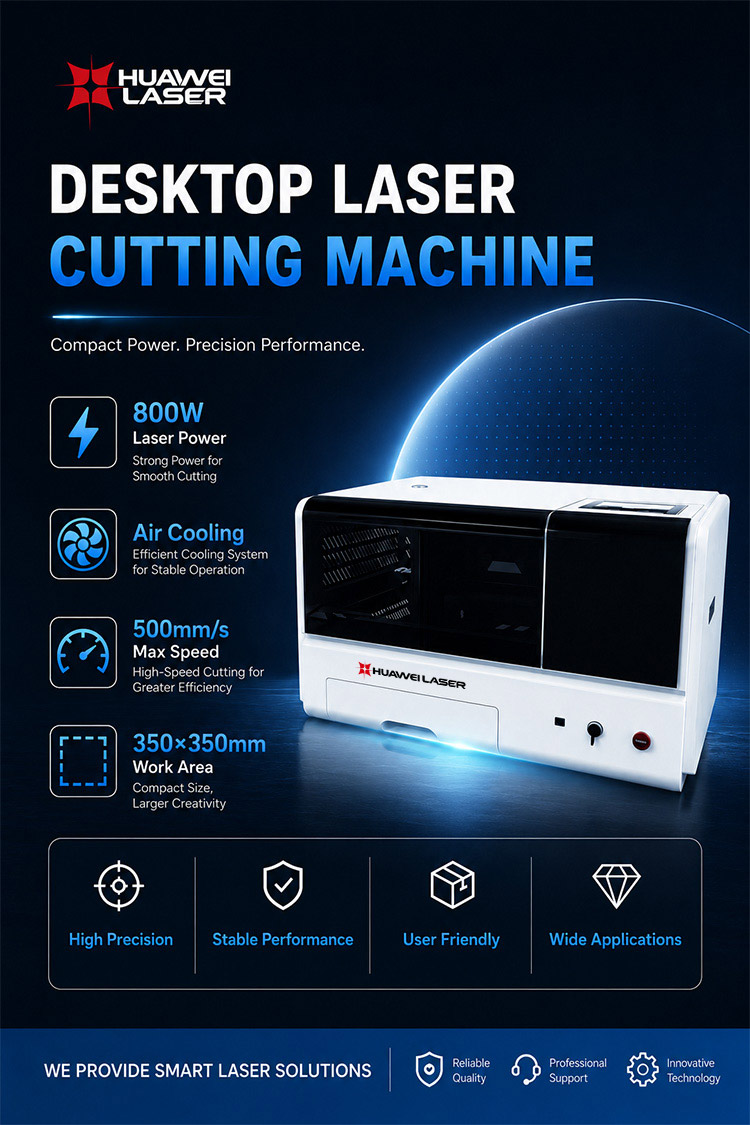

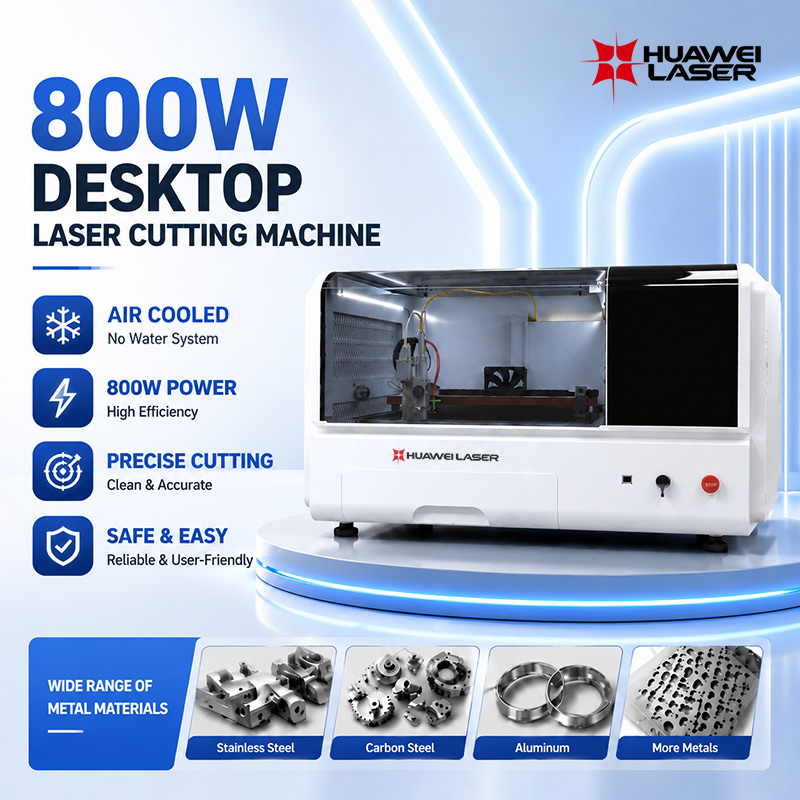

High Precision Desktop Laser Cutting Machine for Small Metal Parts Manufacturing

The High Precision Desktop Laser Cutting Machine for Small Metal Parts Manufacturing from HUAWEI LASER is designed for manufacturers, workshops and customized fabricators that need accurate metal cutting without the footprint of a large-format laser system.

Its compact desktop structure measures only 896 × 585 × 560mm and weighs approximately 50kg, making it easier to install in workshops, laboratories, design studios and other space-limited production environments.

The machine is equipped with an 800W Raycus fiber laser source, Au3Tech AM50 laser cutting head and NexCut CNC control system. The combination provides controlled laser output, precise cutting-head positioning and digital processing control for small metal components.

With a 350 × 350mm working area, 500mm/s maximum speed and 0.8G maximum acceleration, the machine is particularly suitable for small metal parts, prototypes, customized components and short-run production where flexibility and controlled processing are more important than a large cutting format.

Product Advantages

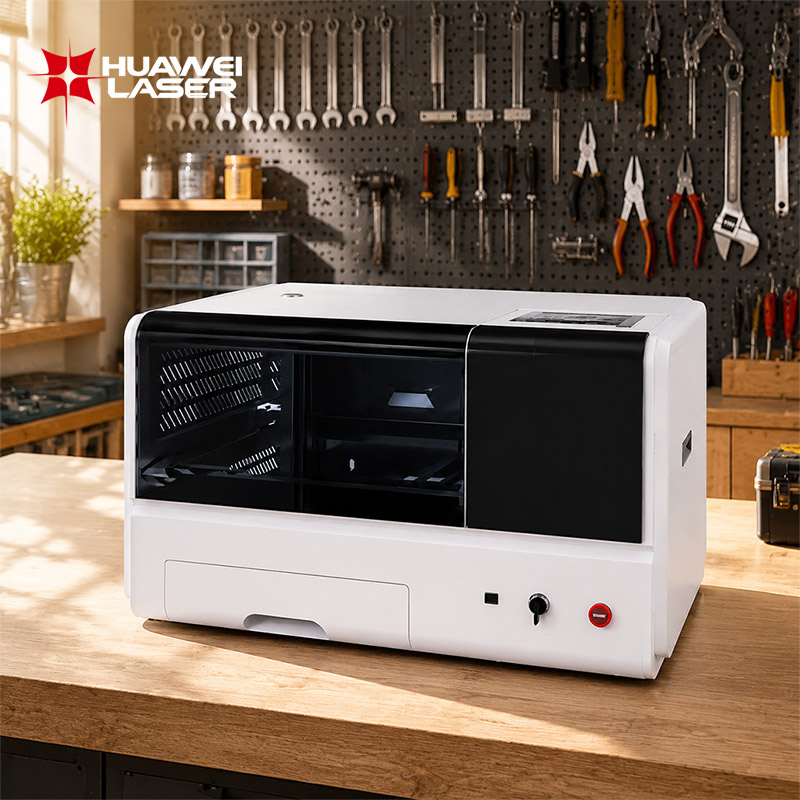

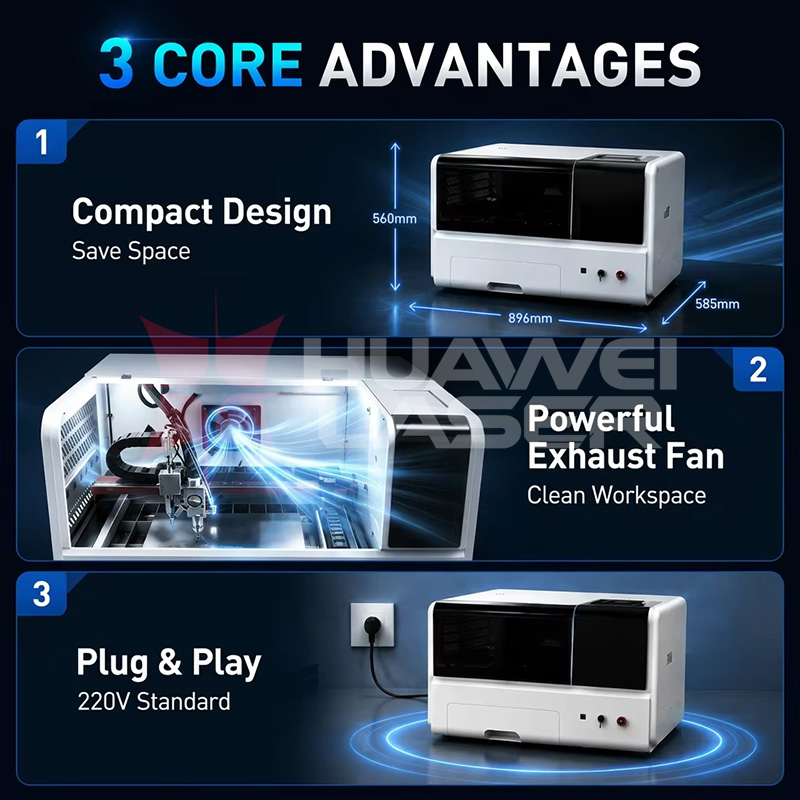

1. Compact Desktop Structure for Space-Limited Manufacturing

Large-format laser cutting machines are not always practical for small parts or limited production spaces. HUAWEI LASER uses a compact desktop configuration to reduce the physical footprint of the equipment while retaining a dedicated fiber laser cutting system.

Key specifications:

Machine dimensions: 896 × 585 × 560mm

Machine weight: ≈50kg

Working area: 350 × 350mm

Input voltage: AC 220V

Cooling method: Air cooling

The compact dimensions and standard 220V input make the machine easier to integrate into small workshops, laboratories, development areas and customized manufacturing environments.

2. 800W Fiber Laser Source for Controlled Metal Cutting

The machine uses an 800W Raycus fiber laser source with a 1064nm wavelength to provide the laser energy required for metal cutting applications.

The fiber laser configuration is suitable for commonly processed metals including stainless steel, carbon steel and aluminum.

Laser system specifications:

Laser power: 800W

Laser type: Fiber Laser

Laser wavelength: 1064nm

Laser source: Raycus

Cooling method: Air cooling

The 800W configuration provides a practical processing range for small metal components and thin-to-medium metal sheets without requiring a larger laser system.

3. 350 × 350mm Working Area for Small Metal Parts

The machine provides a dedicated 350 × 350mm working area, matching the needs of small components and customized metal parts.

Instead of using a large-format cutting bed for small workpieces, the compact processing area keeps the machine focused on precision component manufacturing and small-batch fabrication.

Suitable workpieces include:

Small metal brackets

Precision components

Metal covers

Customized parts

Prototype components

Decorative metal parts

The defined working area also makes the machine suitable for manufacturers whose products are generally smaller than conventional sheet-metal production formats.

4. 500mm/s Cutting Speed and 0.8G Acceleration

The motion system reaches a maximum speed of 500mm/s and a maximum acceleration of 0.8G.

These specifications provide measurable support for efficient movement during cutting operations, particularly when processing small components with multiple contours or short cutting paths.

Motion performance:

Maximum speed: 500mm/s

Maximum acceleration: 0.8G

For small-part production, faster positioning between cutting paths can help reduce unnecessary machine movement and support more efficient processing cycles.

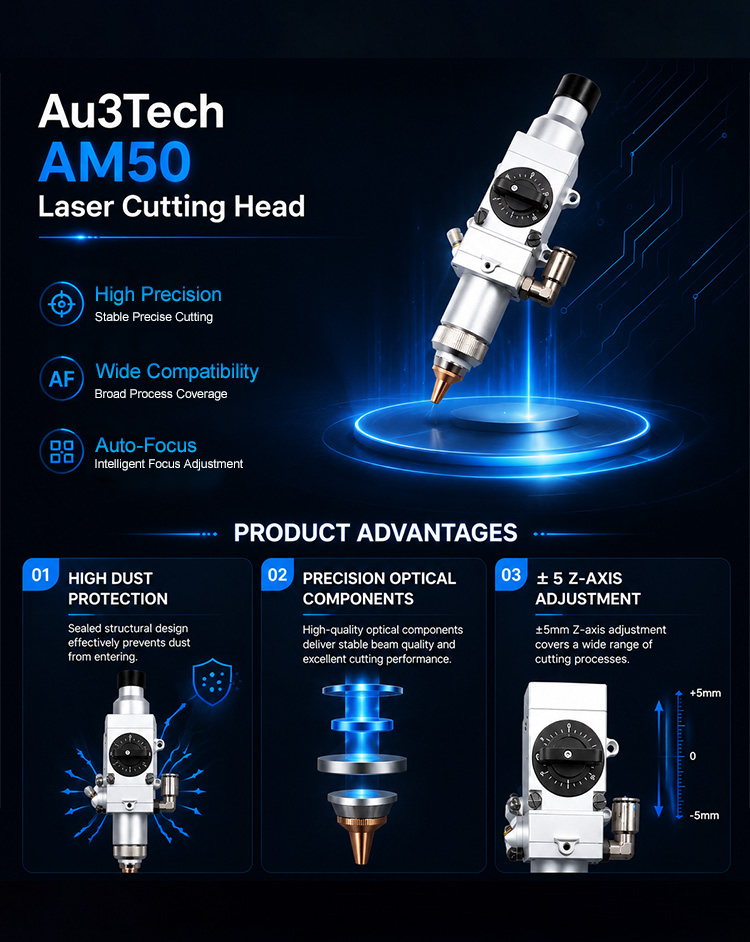

5. Au3Tech AM50 Cutting Head for Stable Processing

The machine is equipped with an Au3Tech AM50 laser cutting head, designed to provide controlled beam transmission and focus adjustment during metal cutting.

Key features include:

Precision optical components

Stable laser transmission

Auto-focus adjustment

High dust protection

±5mm Z-axis adjustment

The ±5mm Z-axis adjustment provides additional height adjustment for focus optimization when processing materials with different thicknesses.

The sealed cutting-head structure also helps reduce the entry of dust and particles into internal optical components during operation.

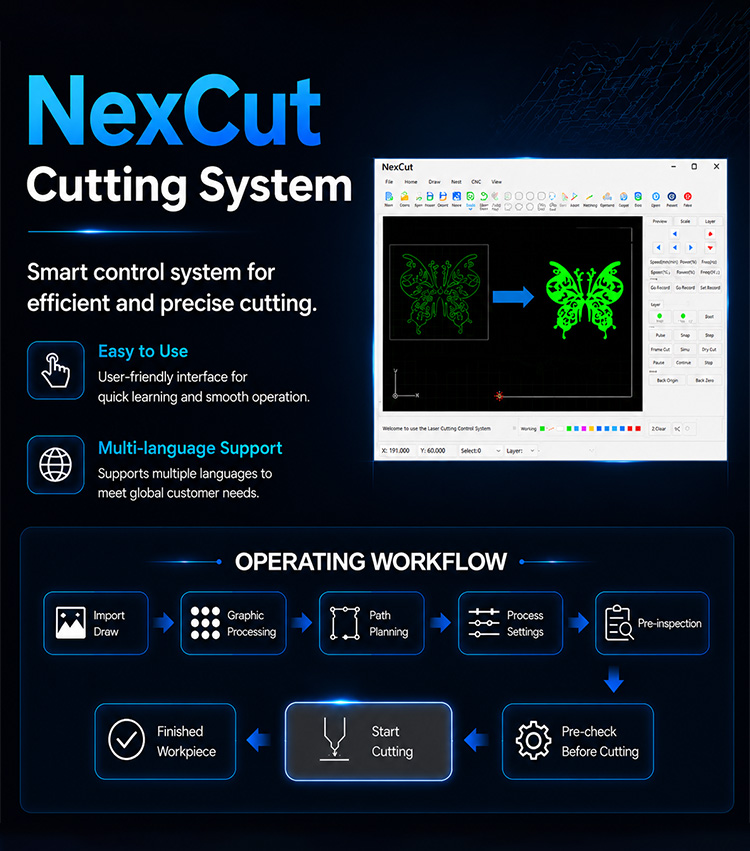

6. NexCut CNC Control for Easier Operation

The NexCut CNC control system manages machine movement and cutting operations through a digital operating interface.

The control system is designed to simplify parameter adjustment and processing setup, allowing operators to manage cutting tasks without complicated manual machine control.

Control features:

Digital operation interface

Intelligent path planning

Parameter adjustment

Multi-language support

This makes the machine suitable for both experienced metal-processing operators and businesses introducing fiber laser cutting into their production workflow.

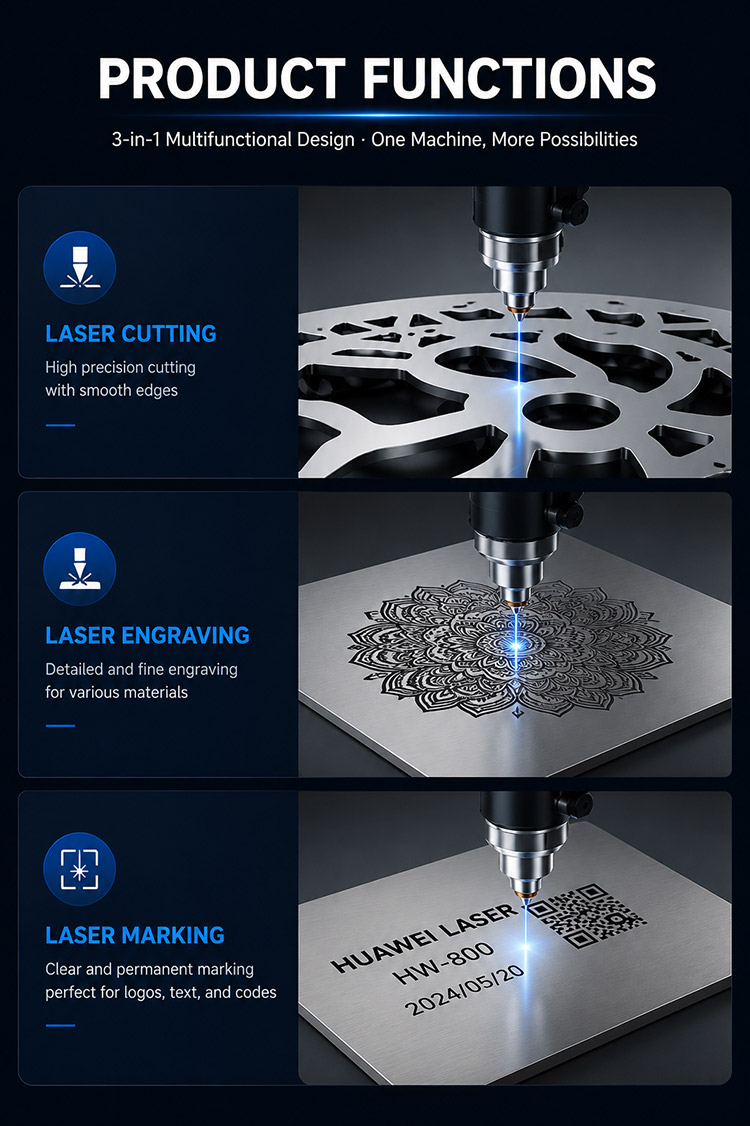

7. One Machine for Cutting, Engraving and Marking

The machine combines three laser processing functions in one compact platform:

Laser Cutting

For:

Small metal components

Customized parts

Metal brackets

Precision components

Laser Engraving

For:

Decorative patterns

Customized designs

Product personalization

Laser Marking

For:

Logos

Serial numbers

Product identification

The multifunctional configuration allows users to handle different processing requirements on one machine rather than purchasing separate equipment for cutting, engraving and marking.

Applications for Small Metal Parts Manufacturing

Precision Metal Components

The High Precision Desktop Laser Cutting Machine for Small Metal Parts Manufacturing is suitable for producing small metal components that require controlled dimensions and detailed cutting paths.

Applications include:

Small brackets

Mounting plates

Metal covers

Mechanical components

Customized parts

Electronics & Electrical Components

The compact working area is suitable for manufacturers producing small metal housings and structural components for electronic and electrical products.

Applications include:

Equipment covers

Metal housings

Mounting components

Electrical enclosures

Customized panels

Prototype & Product Development

The desktop configuration is suitable for prototype production where product designs may change frequently.

Operators can cut small metal components for:

Product prototypes

Functional samples

Design verification

Engineering development

Customized components

The 350 × 350mm working area is particularly suitable for smaller prototype parts.

Customized Metal Fabrication

For workshops handling customized orders, the machine provides cutting, engraving and marking functions within one compact platform.

It can be used for:

Personalized metal products

Custom nameplates

Decorative components

Small-batch parts

Custom metal accessories

Advertising & Sign Making

The multifunctional laser system can process small metal signs and identification components.

Applications include:

Metal logos

Nameplates

Decorative letters

Product labels

Customized signs

Technical Specifications

Quality Control Before Delivery

HUAWEI LASER carries out inspection and testing before the machine is delivered to customers.

Inspection includes:

Laser output testing

Cutting accuracy verification

CNC control system inspection

Electrical safety testing

Complete machine operation testing

Each machine is also prepared with professional export packaging to help protect the equipment during transportation.

FAQ

1. What materials can this desktop laser cutting machine cut?

The machine is designed for stainless steel, carbon steel, aluminum and other metal sheets. Air, nitrogen and oxygen can be selected as assist gases according to the material and cutting process.

2. Is this machine suitable for small metal parts?

Yes. Its 350 × 350mm working area is designed for smaller components, prototypes, customized parts and small-batch metal fabrication.

3. What is the maximum cutting speed?

The machine has a maximum movement speed of 500mm/s and maximum acceleration of 0.8G. Actual cutting speed depends on material, thickness and cutting parameters.

4. What laser source does the machine use?

The machine uses an 800W Raycus fiber laser source with a 1064nm wavelength.

5. Does the machine require a three-phase power supply?

No. The machine uses a standard AC 220V input, making it easier to deploy in small workshops and other environments with standard electrical infrastructure.

Contact HUAWEI LASER

Find the Right Desktop Laser Cutting Solution for Your Small Metal Parts

The High Precision Desktop Laser Cutting Machine for Small Metal Parts Manufacturing combines an 800W fiber laser source, 350 × 350mm working area, 500mm/s maximum speed and compact 896 × 585 × 560mm structure in one flexible metal processing system.

It is designed for manufacturers that need controlled cutting performance for small components, prototypes, customized parts and small-batch metal production without occupying the space of a large-format laser cutter.

Contact HUAWEI LASER to discuss your material, part size and cutting requirements and get a suitable desktop fiber laser cutting solution.
