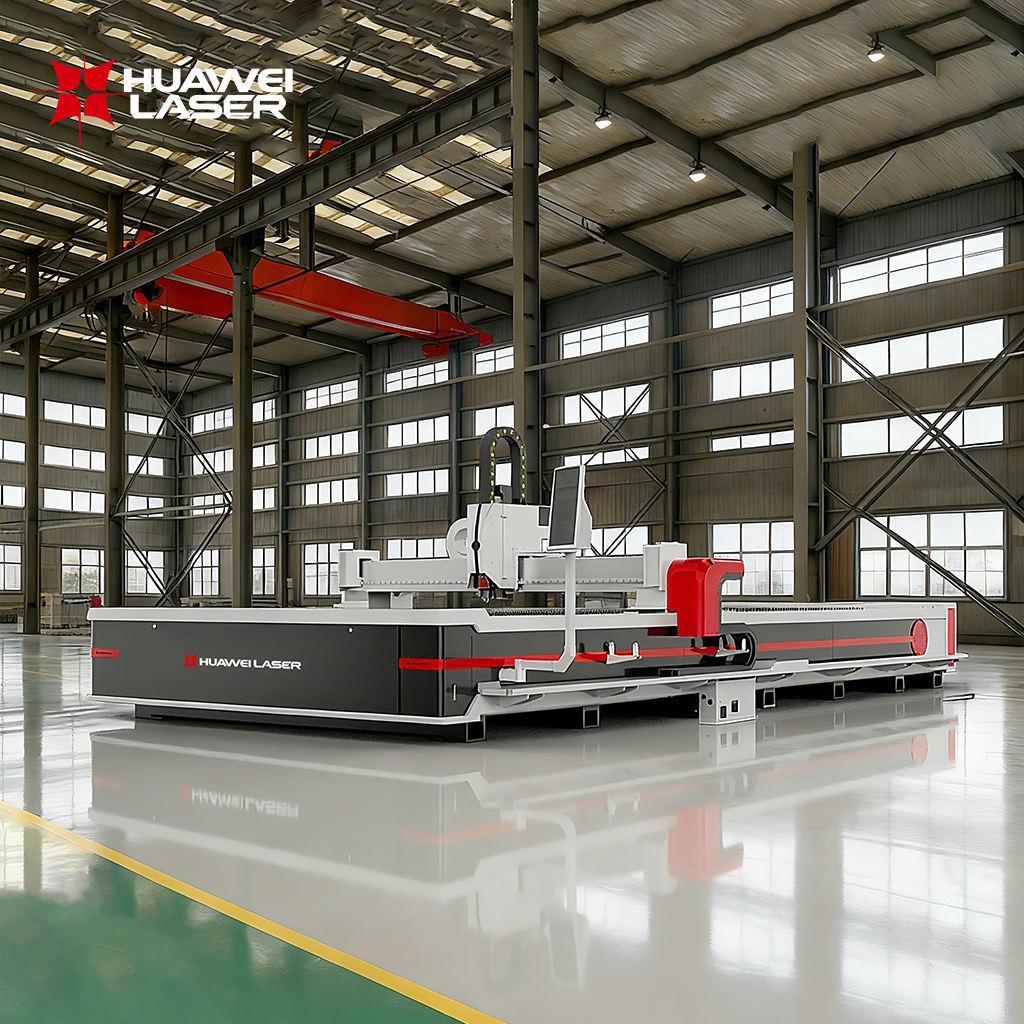

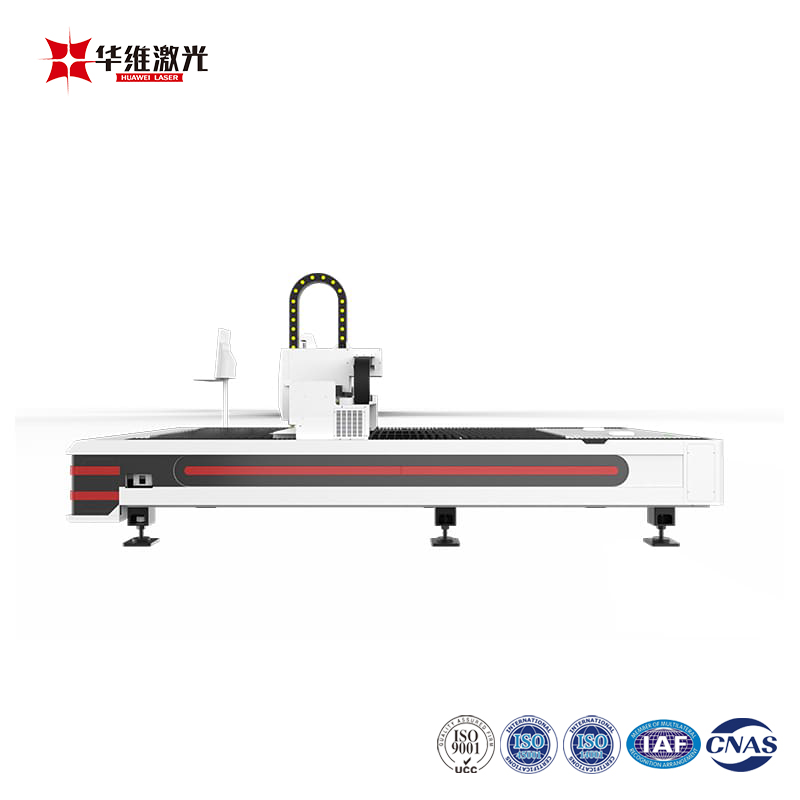

High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting

The High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting from Huawei Laser is built for manufacturers that process metal sheets, structural parts and customized components on a regular production basis.

Its open-bed configuration provides a spacious cutting platform for handling different sheet sizes, while the gantry structure, fiber laser system and CNC automatic control work together to deliver a practical solution for daily metal fabrication. Available in multiple machine sizes and laser power configurations, it can be matched to different material dimensions, cutting requirements and production volumes.

The HW-3015K, HW-4020K, HW-6025K and HW-13031K models cover working areas from 1500 × 3000mm to 3100 × 13000mm, with customized configurations available for specific production needs.

Product Advantages

1. Open Bed Design for Convenient Metal Loading and Processing

The open bed structure provides direct access to the cutting area, making it easier to load, position and remove metal sheets during production.

The available working areas range from 1500 × 3000mm to 3100 × 13000mm, allowing the equipment to accommodate different sheet sizes and fabrication requirements.

Design advantages:

Open working structure

Convenient sheet loading and unloading

Multiple working area configurations

Large-format processing capability

Suitable for customized machine dimensions

For manufacturers processing different sheet sizes, the open bed configuration provides greater flexibility when arranging material and production workflows.

2. Flexible 1500W–12000W Fiber Laser Configuration

The machine supports laser power configurations from 1500W to 12000W, allowing customers to select equipment according to material type, thickness and production requirements.

Different laser power levels provide different processing capabilities, so the configuration can be matched to the customer's actual application rather than using one fixed specification for every production environment.

Available laser power range:

1500W / 2000W / 3000W / 6000W / 12000W

The fiber laser system is suitable for processing:

Carbon steel

Stainless steel

Aluminum

This configuration flexibility makes the machine suitable for customized fabrication as well as continuous metal processing.

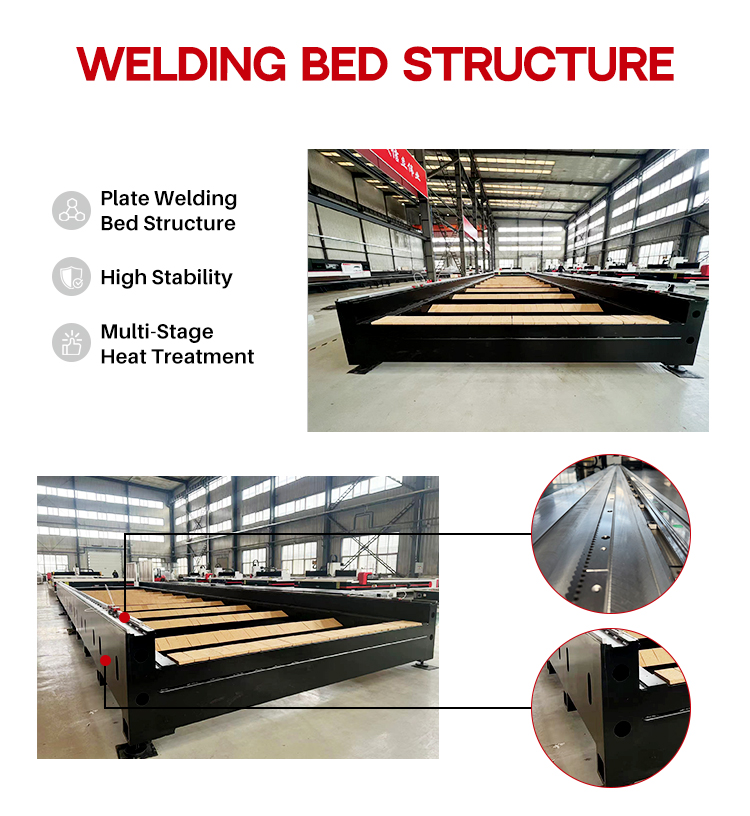

3. Gantry Structure for Stable Machine Movement

The High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting adopts a gantry-type machine structure designed for large-format CNC movement.

The gantry structure provides a stable platform for the laser cutting head while the guide rail and servo drive system control movement along the working area.

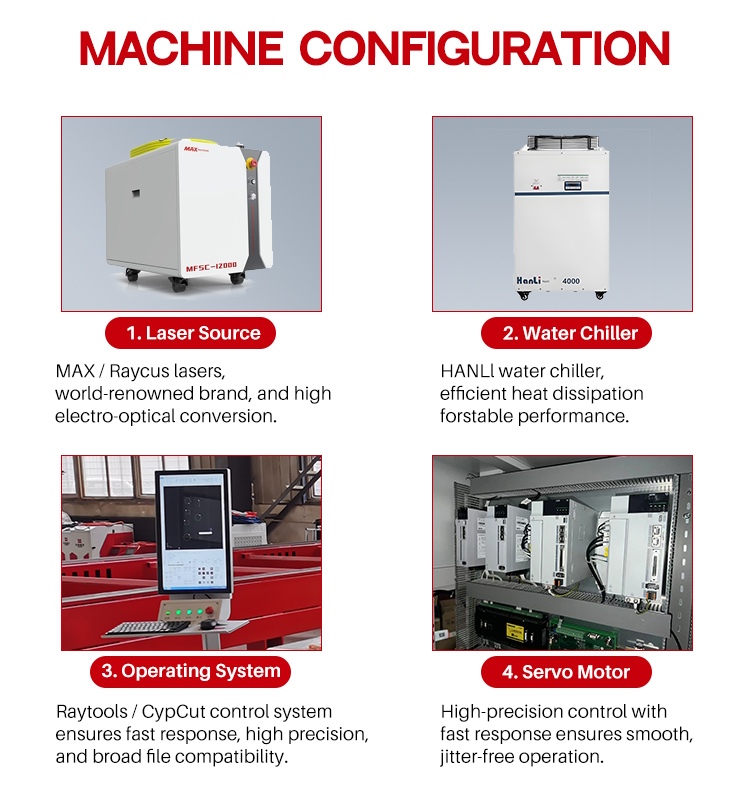

The configuration includes:

Gantry-type machine structure

Hiwin guide rail

Beitto / HCFA / Panasonic servo motor options

CNC automatic cutting

Water cooling system

The combination of the mechanical structure and motion components supports stable positioning during repeated cutting operations.

4. CNC Automatic Cutting for Repeatable Production

The machine uses a CNC control system to convert digital cutting files into automated machine movements.

The system supports common production file formats including:

DXF

LXD

AI

PLT

G-code

Operators can import the required cutting design, configure processing parameters and execute the cutting process through the CNC system.

This reduces dependence on manual cutting operations and makes the machine suitable for repeated production of metal components with consistent cutting paths.

Technical Specifications

Materials & Applications

The High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting is designed for a wide range of metal fabrication requirements, supporting carbon steel, stainless steel and aluminum with laser power configurations from 1500W to 12000W.

Its open-bed structure and working areas up to 3100 × 13000mm make it suitable for both standard sheet processing and large-format metal fabrication. Typical applications include:

With CNC automatic cutting, multiple working area options and customizable configurations, Huawei Laser provides a flexible solution for manufacturers handling different materials, sheet dimensions and production requirements.

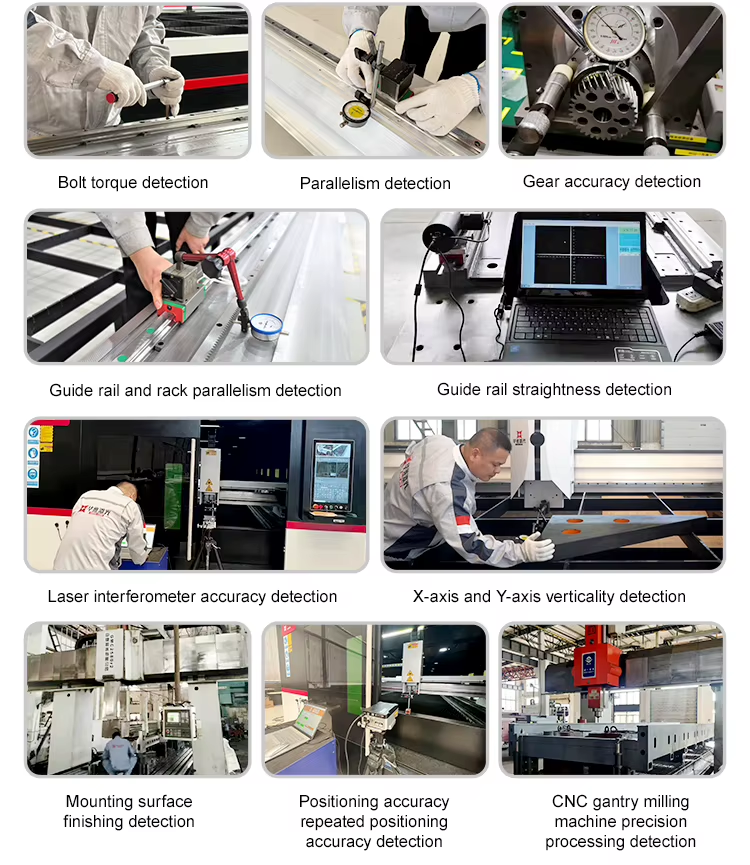

Precision Inspection & Quality Control

Huawei Laser performs inspection and adjustment procedures during machine manufacturing to verify the mechanical and electrical systems before delivery.

Quality control focuses on:

Machine structure

Guide rail installation

Motion system

Laser cutting system

CNC control system

Electrical components

Overall machine operation

The inspection process helps ensure that the High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting is properly adjusted before shipment and ready for customer installation and commissioning.

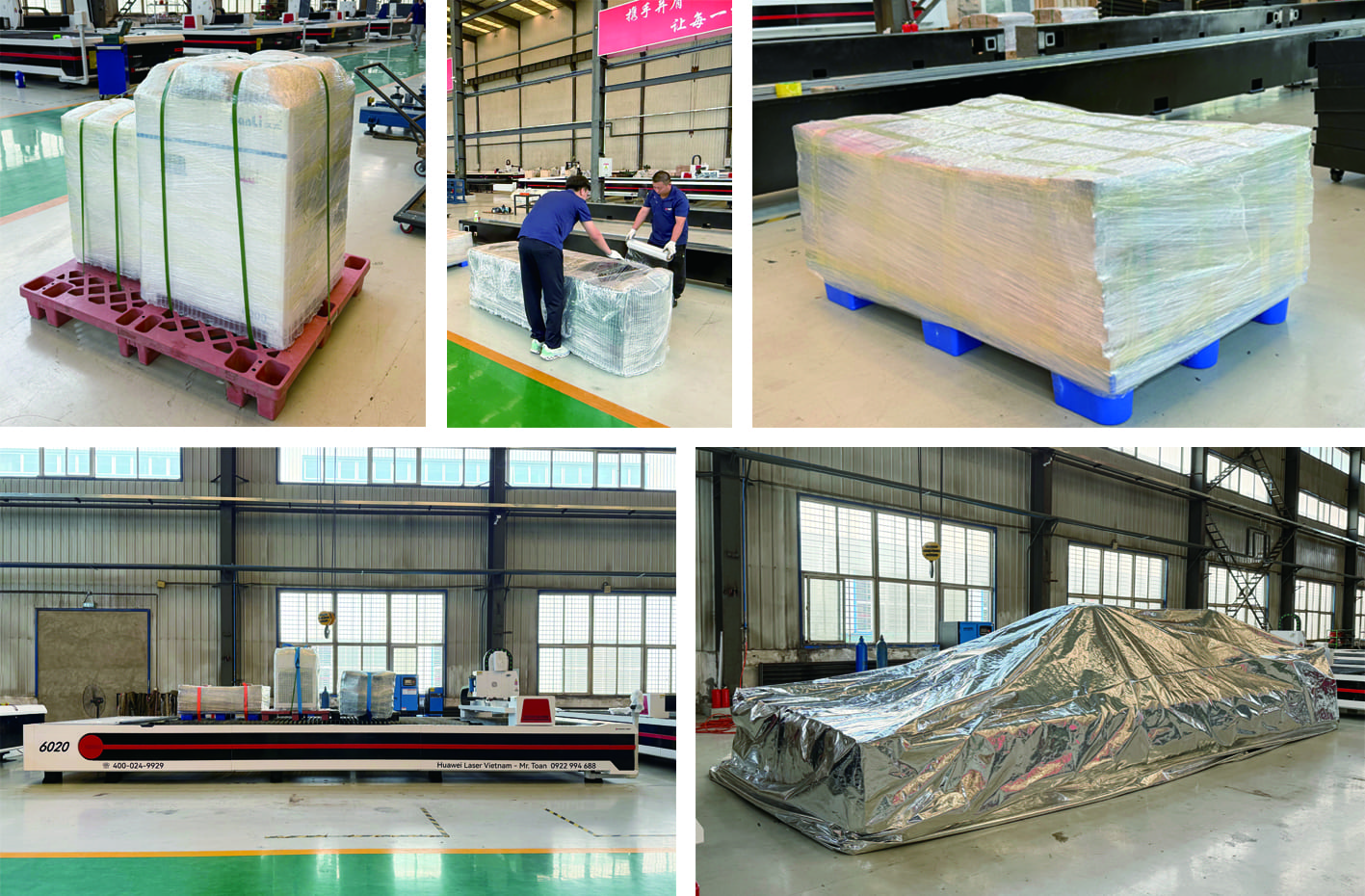

Packaging & Delivery

Huawei Laser prepares each fiber laser cutting machine according to international transportation requirements.

Before shipment, the machine is inspected and key components are protected to reduce the risk of damage during transportation.

Packaging includes:

Export-standard packaging

Protection for precision components

Secure machine fixation

Moisture and dust protection

Long-distance transportation protection

The machine can be prepared for international sea and land transportation according to the customer's delivery requirements.

Contact Huawei Laser

Find the Right Fiber Laser Cutting Solution for Your Production

Looking for an High Efficiency Open Type Fiber Laser Cutter for Industrial Metal Cutting?

Huawei Laser provides open bed fiber laser cutting machines with 1500W–12000W laser power, working areas up to 3100 × 13000mm, customizable configurations and CNC automatic cutting.

Tell us your:

Material type

Material thickness

Sheet size

Required working area

Production volume

Cutting requirements

Our engineering team can recommend a suitable machine configuration for your metal processing application.

Contact Huawei Laser today for machine specifications, configuration recommendations and a customized quotation.
