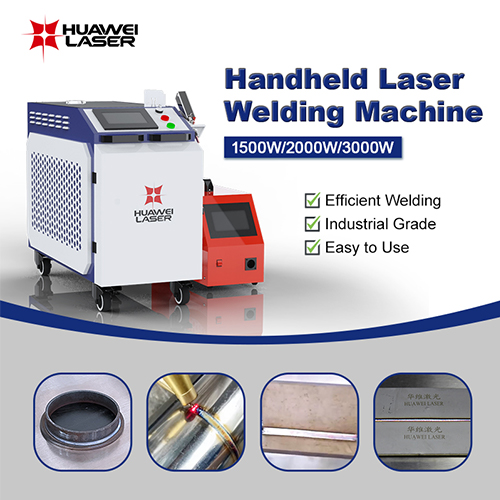

Handheld Laser Welding Machine 1500W for Metal Processing

The Handheld Laser Welding Machine 1500W for Metal Processing from Huawei Laser is designed for workshops and manufacturers handling everyday metal welding and processing tasks. Its handheld design allows operators to work directly on different metal components without relying on a fixed processing platform.

The machine uses a 1500W fiber laser and supports continuous operation with a water-cooled system. For welding applications, the machine is equipped with a SUPER Laser SUP 23T handheld welding head, a SUPER Laser control system and a Hanli water chiller. MAX and Raycus laser sources are available to meet different equipment configuration requirements.

In addition to laser welding, the machine integrates weld seam cleaning, laser cleaning and laser cutting, giving users four processing functions in one system. This allows the same equipment to handle welding as well as selected cleaning and cutting tasks during metal fabrication.

For welding, the 1500W configuration supports carbon steel, galvanized steel and stainless steel up to 3mm, and aluminum up to 2mm, based on the specified welding capability.

Product Specifications

Welding Capability

Product Advantages

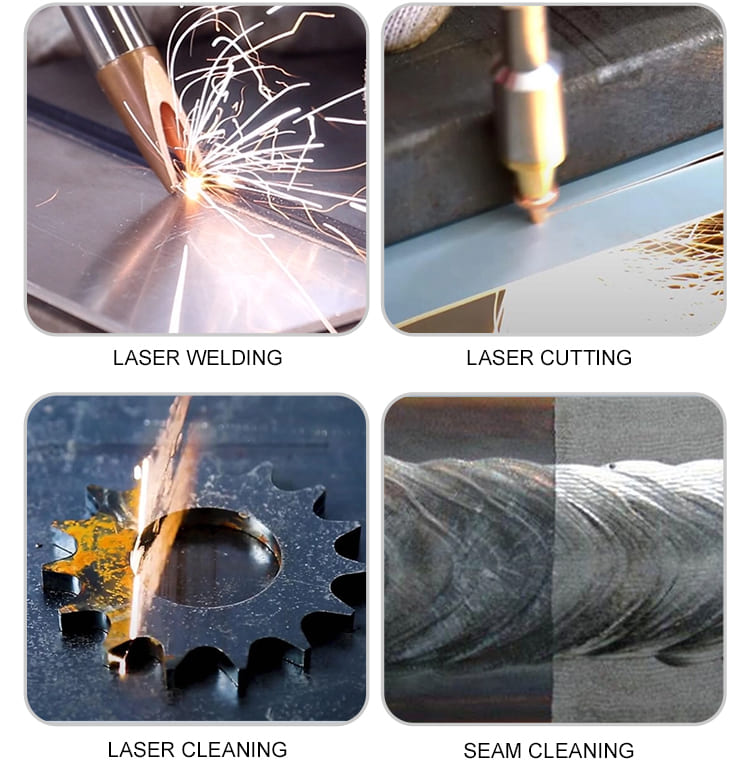

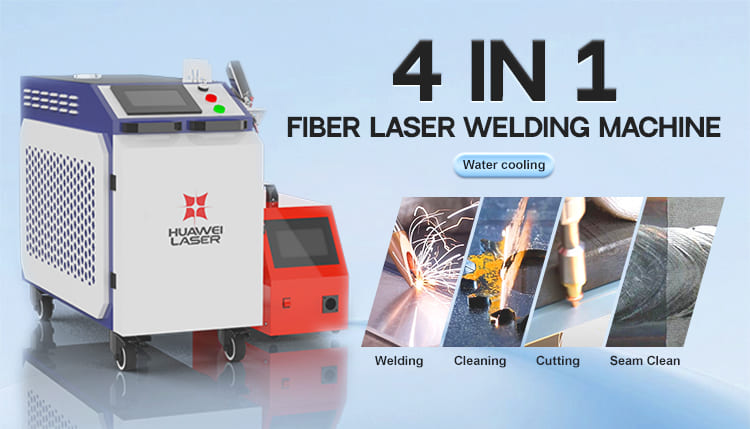

1. 4 in 1 Processing Functions

The machine combines laser welding, weld seam cleaning, laser cleaning and laser cutting in one system. Instead of using separate equipment for these tasks, users can switch between different processing functions according to the application.

This configuration is suitable for metal fabrication environments where welding and surface treatment are both part of the daily workflow.

2. 1500W Fiber Laser for Everyday Metal Processing

With a 1500W fiber laser, the machine is designed for common metal welding applications. Its specified welding capability reaches 3mm for carbon steel, galvanized steel and stainless steel, and 2mm for aluminum.

The continuous working mode makes it suitable for regular welding operations rather than short-duration processing only.

3. Water Cooling for Continuous Operation

The machine uses a Hanli water chiller to manage heat generated during laser operation. Compared with air-cooled systems, the water-cooled configuration is designed for applications that require continuous working.

This makes the 1500W model suitable for workshops that need to carry out repeated welding and metal processing tasks during normal production.

4. Professional Handheld Welding Configuration

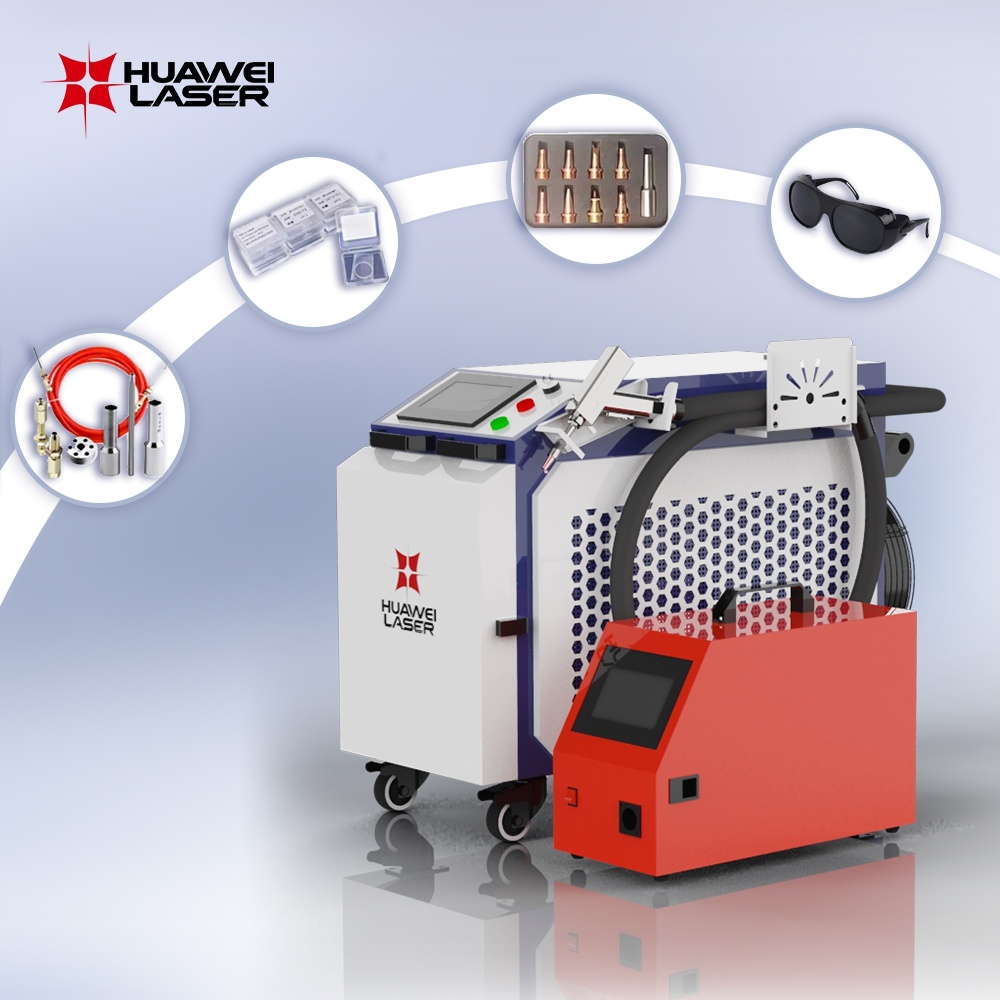

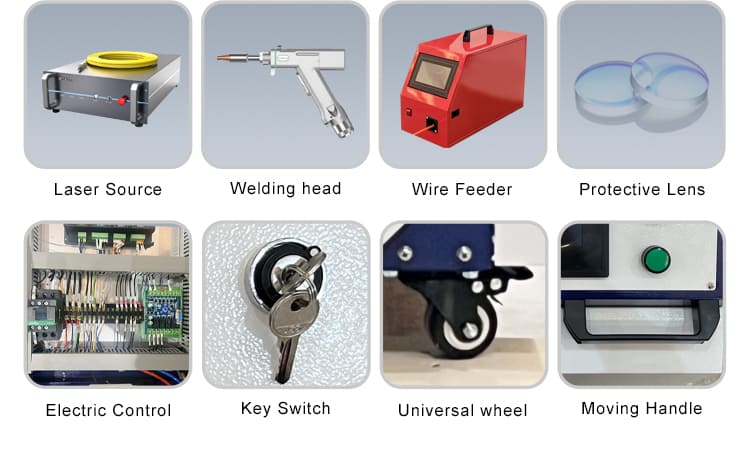

The SUPER Laser SUP 23T handheld welding head provides the main interface between the operator and the laser welding process. The machine also uses a SUPER Laser control system, while MAX and Raycus laser sources are available.

Automatic wire feeding is available for applications that require filler wire, giving users more flexibility when setting up the welding process.

5. Flexible Working Range

The machine comes with a standard 10m optical fiber, extendable to a maximum of 15m, allowing the welding unit to be positioned at a practical distance from the work area.

Its welding speed is adjustable from 0 to 120mm/s, giving operators room to select suitable processing parameters for different materials and joints.

6. Designed for Multiple Metal Materials

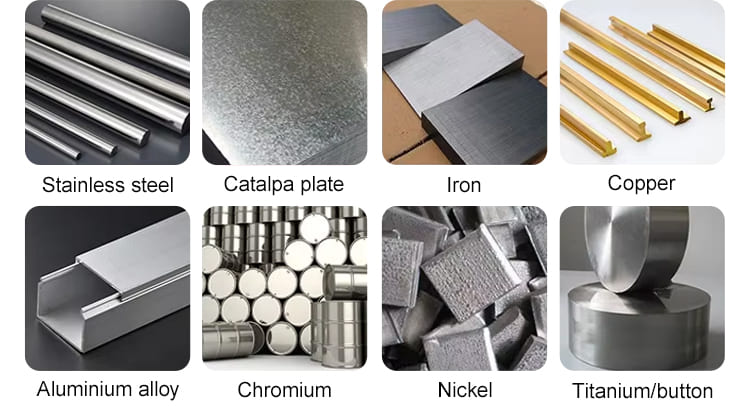

The 1500W configuration supports four common metal materials: carbon steel, galvanized steel, stainless steel and aluminum.

The specified welding thickness is up to 3mm for the three steel-based materials and 2mm for aluminum, making the machine suitable for a range of sheet metal and metal fabrication applications.

Working Principle

The Handheld Laser Welding Machine 1500W for Metal Processing uses a fiber laser to generate a concentrated laser beam and deliver it to the workpiece through the handheld welding head.

During welding, the laser beam acts on the joint area and generates localized heat to melt the base material and form a weld. The operator guides the handheld welding head along the joint according to the required welding path.

With its 4-in-1 configuration, the same laser system can also be used for weld seam cleaning, laser cleaning and laser cutting, depending on the selected function and processing requirements.

Application Fields

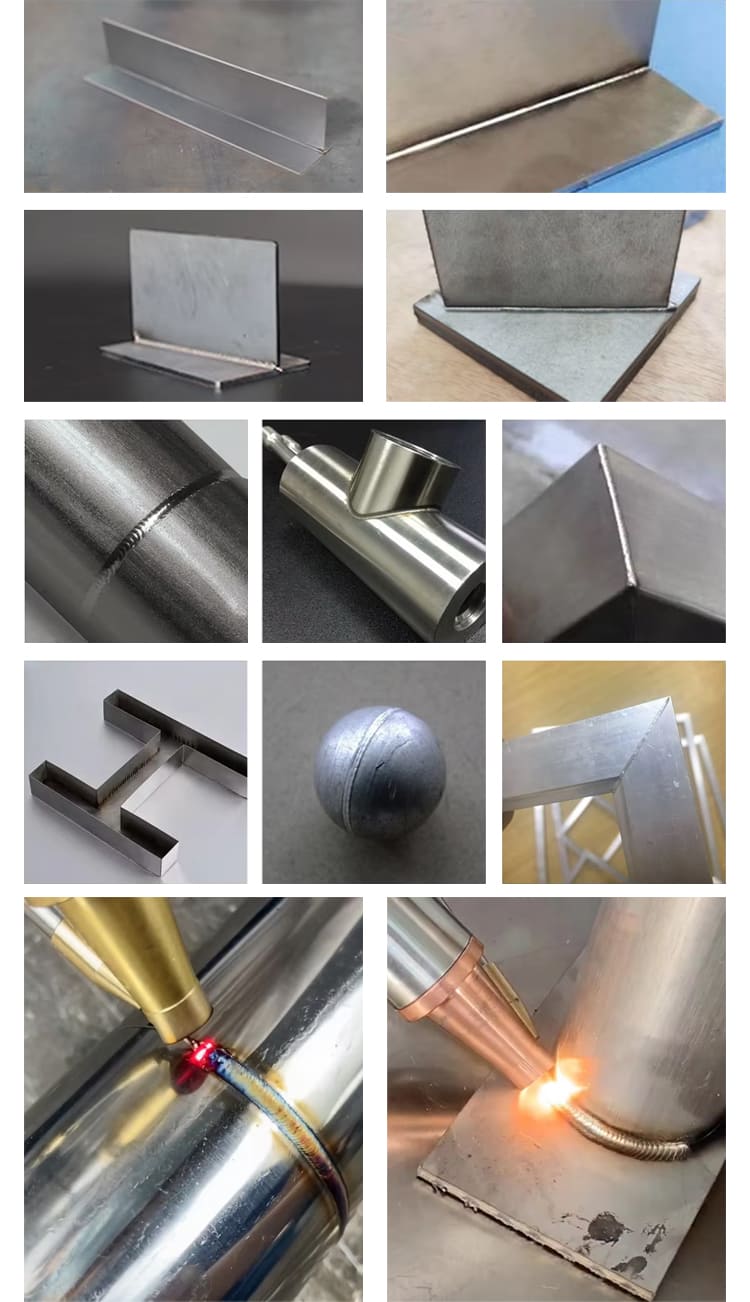

Sheet Metal Fabrication

Suitable for welding and processing common sheet metal components made from carbon steel, galvanized steel, stainless steel and aluminum.

Metal Fabrication Workshops

The handheld configuration is suitable for workshops handling different metal components and requiring flexible welding equipment.

Stainless Steel Products

The machine supports stainless steel welding up to 3mm under the specified 1500W welding capability.

Kitchen Equipment

Suitable for metal welding and processing applications involving stainless steel kitchen equipment and related components.

Automotive Parts

Can be used for selected welding and metal processing tasks involving automotive components within the specified material and thickness range.

General Metal Processing

The 4-in-1 configuration allows the equipment to be used for welding, weld seam cleaning, laser cleaning and cutting according to different processing requirements.

Contact Huawei Laser

Huawei Laser provides 1500W handheld laser welding solutions for metal processing applications. If you are looking for a Handheld Laser Welding Machine 1500W for Metal Processing, contact Huawei Laser for equipment configuration, welding requirements and technical support.
