Handheld Fiber Laser Welding Machine with 8 Safety Protections

The Handheld Fiber Laser Welding Machine with 8 Safety Protections developed by Huawei Laser is designed for manufacturers who need efficient welding performance with safer operation.

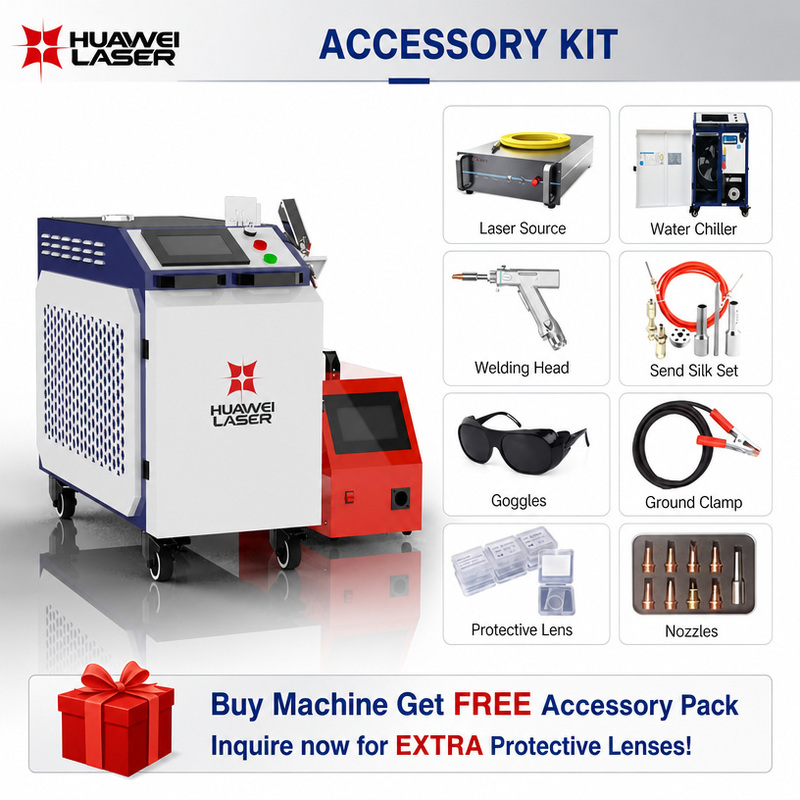

Unlike traditional welding equipment that requires complex operation and extensive post-processing, this fiber laser welding machine uses concentrated laser energy to create precise weld joints with lower heat impact. The machine integrates an 8 Safety Protections system to protect operators, key components and overall equipment operation during daily welding tasks. Available with 1500W, 2000W and 3000W power options, it supports welding applications for carbon steel, stainless steel, galvanized steel and aluminum. Equipped with SUPER Laser SUP 23T handheld welding head, MAX/Raycus laser source options and Hanli water cooling system, Huawei Laser provides a complete welding solution for workshops, fabrication companies and manufacturers.

Product Advantages

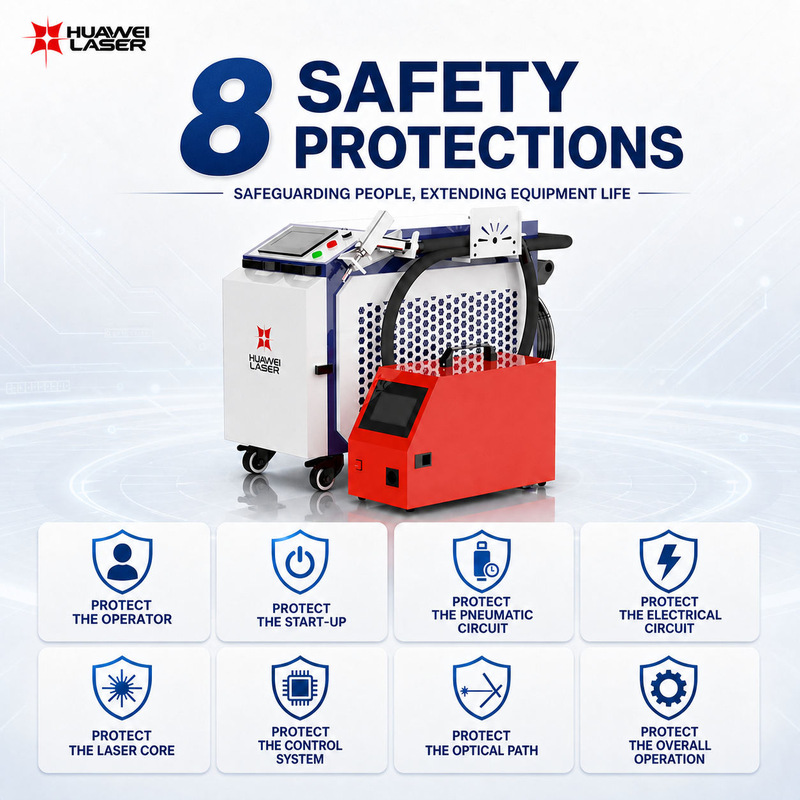

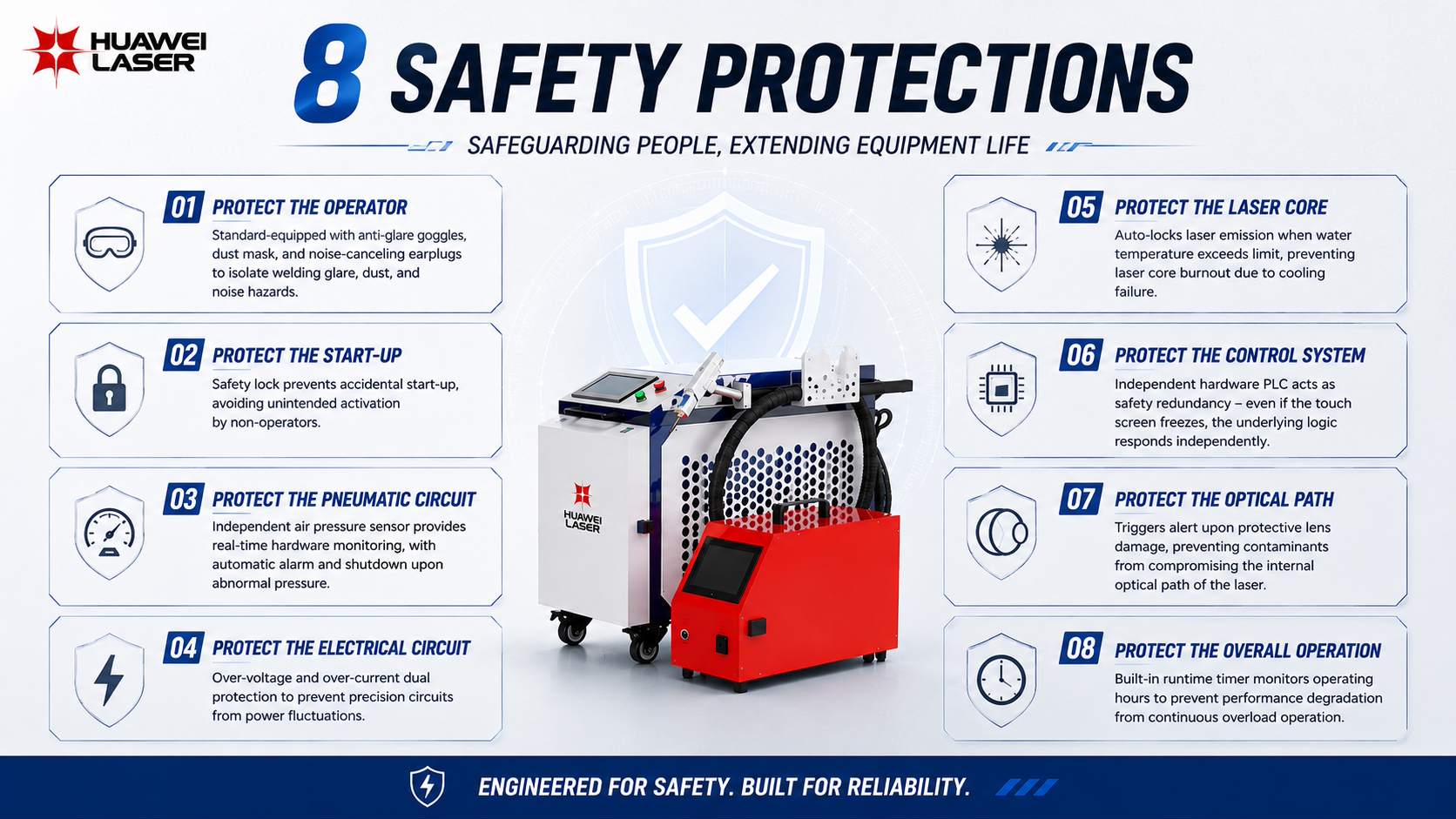

1. 8 Safety Protections for Safer Operation

Safety is an important consideration in daily laser welding applications.

The Handheld Fiber Laser Welding Machine with 8 Safety Protections integrates multiple protection systems covering the operator, machine components and operating process.

The protection system includes:

Operator protection

Start-up protection

Pneumatic circuit protection

Electrical circuit protection

Laser source protection

Control system protection

Optical path protection

Overall operation monitoring

These safety functions help reduce operational risks, protect important components and support more reliable welding performance.

2. Flexible Handheld Welding with SUP 23T Welding Head

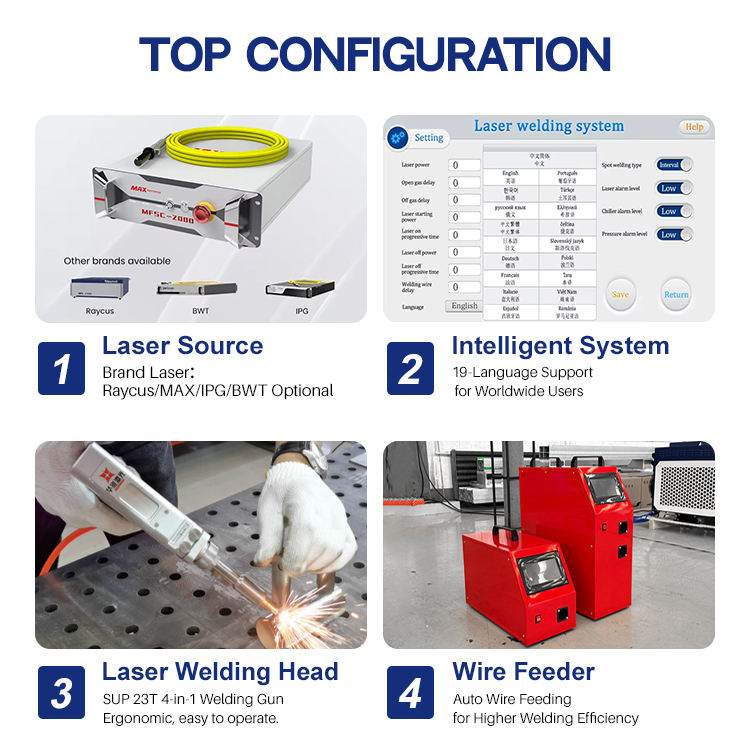

The machine is equipped with SUPER Laser SUP 23T handheld welding head, providing convenient operation for different welding positions and workpiece structures.

Compared with fixed welding equipment, the handheld design allows operators to process customized parts with greater flexibility.

Key Features:

Handheld welding operation

Easy parameter adjustment

Flexible welding angles

Optional automatic wire feeding

It is suitable for workshops and manufacturers handling different metal fabrication projects.

3. Fiber Laser Technology for Cleaner Weld Results

The machine adopts fiber laser technology with MAX/Raycus laser source options to provide concentrated laser energy for metal welding.

The controlled heat input helps improve welding quality and reduce unnecessary finishing work.

Advantages:

Smaller heat affected area

Reduced deformation

Cleaner weld appearance

Less grinding and polishing

Suitable materials include:

Carbon steel

Stainless steel

Galvanized steel

Aluminum

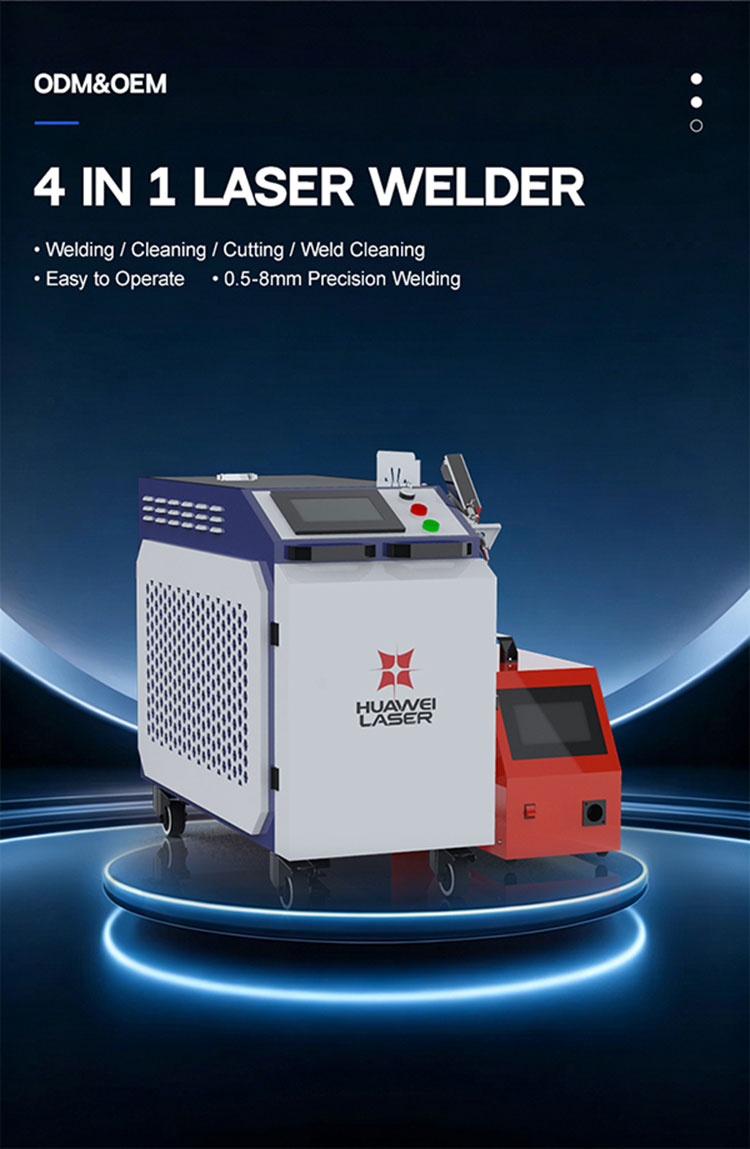

4. 4-in-1 Function for Multiple Metal Processing

Besides welding, the machine supports additional functions:

Laser welding

Weld seam cleaning

Laser cleaning

Laser cutting

The multifunctional design provides more flexibility for manufacturers who need different metal processing operations in one system.

Working Principle

The Handheld Fiber Laser Welding Machine with 8 Safety Protections uses fiber laser technology to generate a high-density laser beam. During operation, the laser energy is focused onto the metal surface, creating a localized melting area. As the handheld welding head moves along the welding path, the melted material cools and forms a strong weld joint. The handheld design allows operators to control welding direction manually, making it suitable for different shapes, structures and customized components.

Product Specifications

Application Fields

Metal Fabrication

The machine is widely used for customized metal processing applications.

Suitable for:

Metal frames

Sheet metal components

Customized parts

Fabricated products

The flexible handheld design helps manufacturers handle different production requirements.

Carbon Steel Fabrication

Suitable for welding:

Carbon steel structures

Steel components

Metal assemblies

Customized steel products

The available power configurations provide suitable welding capability for different material thicknesses.

Stainless Steel Manufacturing

The machine supports stainless steel welding applications requiring clean appearance and controlled processing.

Applications include:

Stainless steel equipment

Kitchen products

Metal enclosures

Customized structures

Machinery Manufacturing

Used for welding:

Machine frames

Equipment housings

Mechanical components

Industrial parts

The handheld operation provides flexibility when processing complex components.

FAQ

1. What materials can the Handheld Fiber Laser Welding Machine with 8 Safety Protections weld?

The machine can weld carbon steel, stainless steel, galvanized steel and aluminum. The maximum welding thickness depends on laser power and material type.

2. What laser power options are available?

Huawei Laser provides:

1500W

2000W

3000W

Customers can select suitable power according to material thickness and application requirements.

3. Which welding head is equipped?

The machine uses the SUPER Laser SUP 23T handheld welding head with SUPER Laser control system.

4. Does the machine support wire feeding?

Yes. Automatic wire feeding is available for applications requiring additional filler wire.

5. What additional functions does the machine provide?

The 4-in-1 configuration supports:

Laser welding

Weld seam cleaning

Laser cleaning

Laser cutting

Contact Huawei Laser

Looking for a reliable Handheld Fiber Laser Welding Machine with 8 Safety Protections?

Huawei Laser provides professional fiber laser welding solutions with:

1500W-3000W power options

SUP 23T handheld welding system

MAX/Raycus laser source options

Hanli cooling system

8 Safety Protections design

Customized equipment solutions

From customized metal fabrication to industrial welding applications, Huawei Laser helps global customers achieve safer operation and more efficient production.

Contact Huawei Laser today to discuss your welding requirements and find the right laser welding solution.
