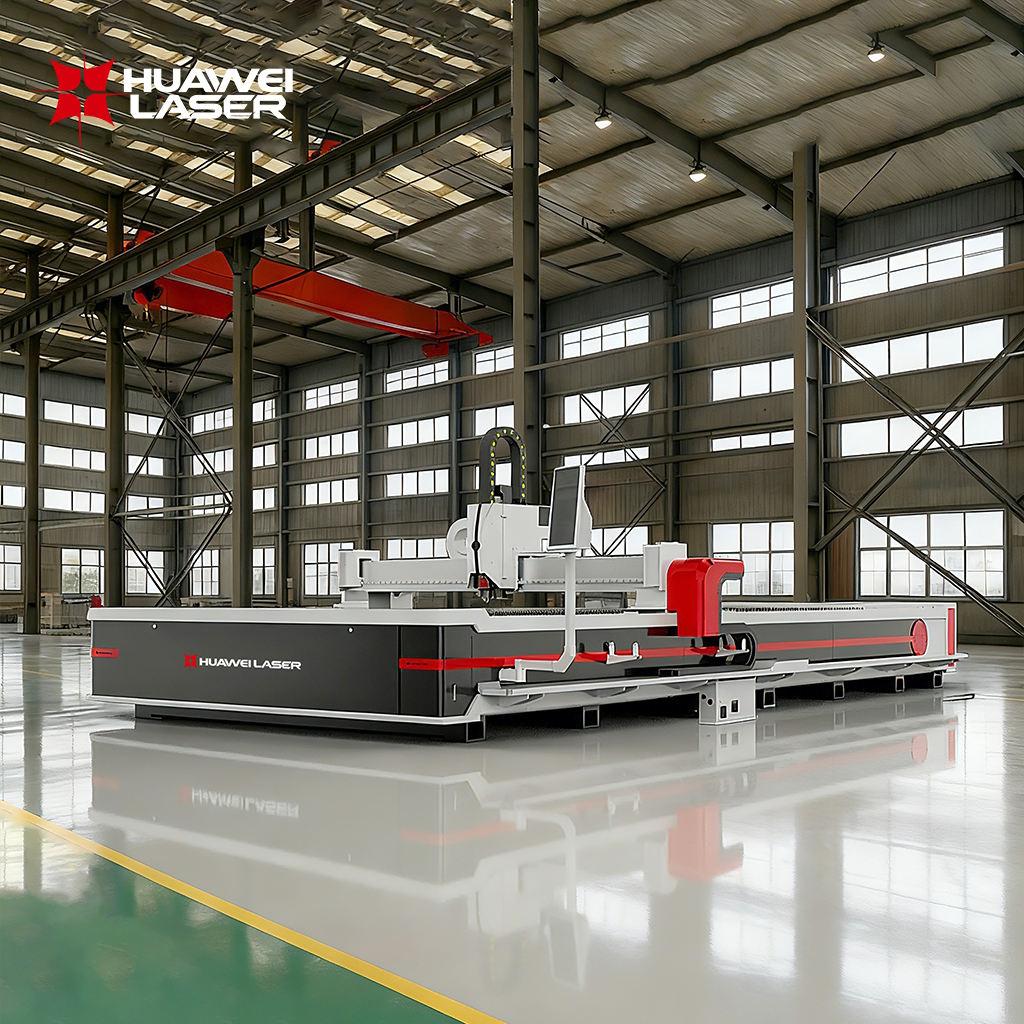

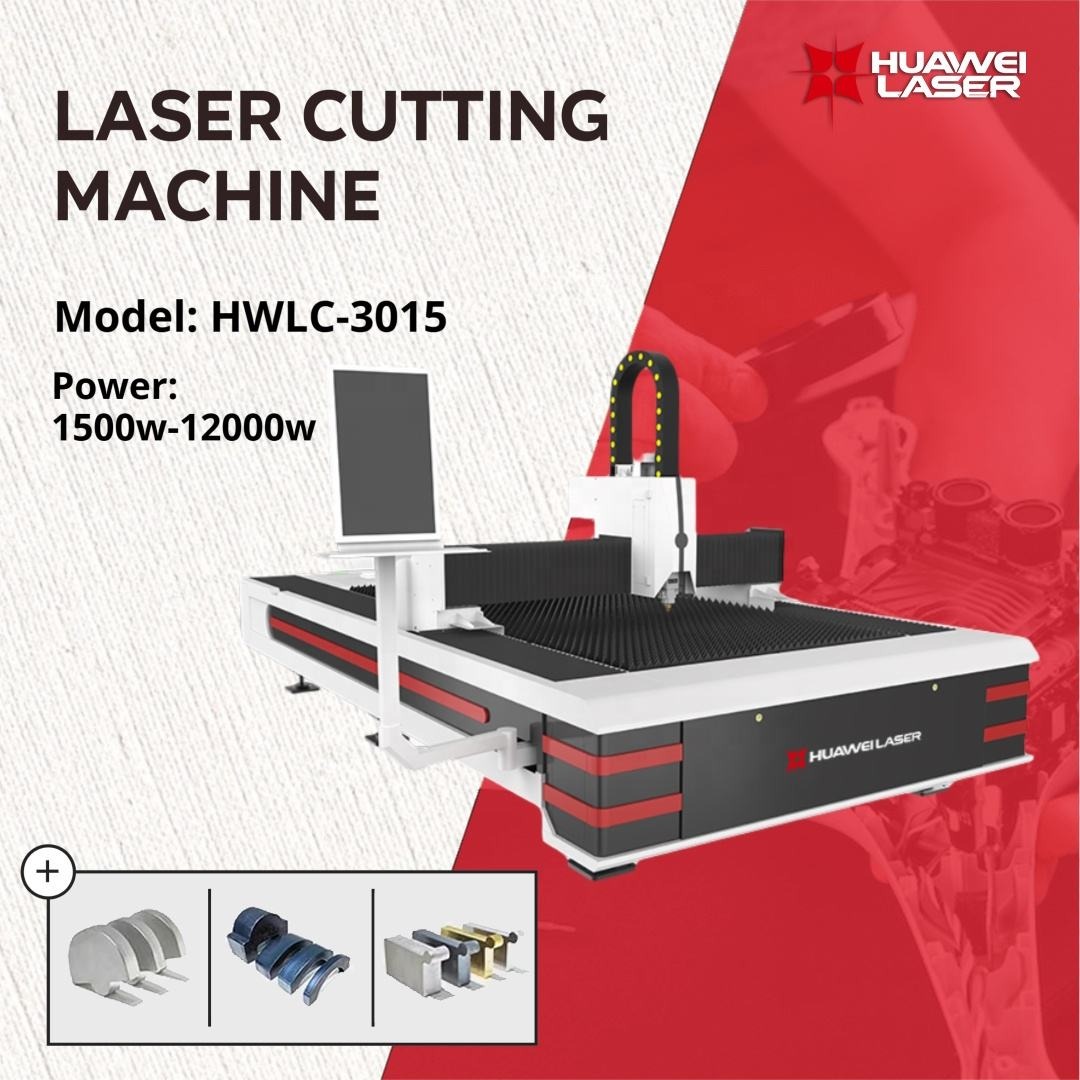

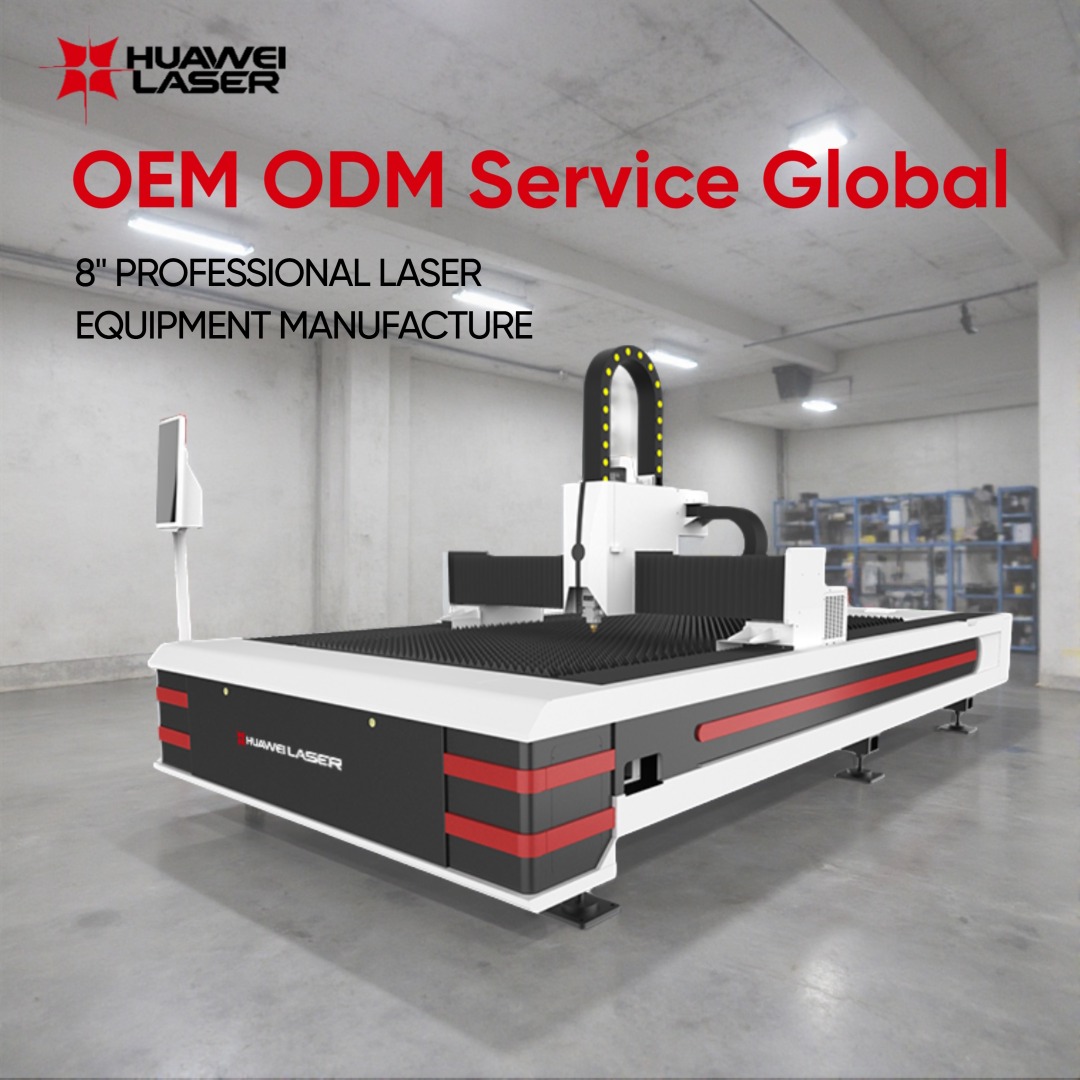

Automatic Fiber Laser Cutting Machine for Automotive Parts Manufacturing

Automotive parts production often involves repeated components, different sheet sizes and varied material thicknesses. The Automatic Fiber Laser Cutting Machine for Automotive Parts Manufacturing combines CNC automation with flexible machine configurations to fit these different production needs.

Huawei Laser offers four working-area options, from 1500×3000mm to 3100×13000mm, together with 1500W–12000W fiber laser sources. This allows manufacturers to select a configuration based on component dimensions and cutting requirements rather than using a one-size-fits-all machine. The system uses a gantry structure, precision transmission components and CNC control to guide the cutting head along programmed paths. Once the cutting program is prepared, repeated parts can be processed automatically with consistent machine movement.

Key Advantages

1. Automatic CNC Cutting for Repeated Automotive Parts

The machine uses CNC automatic cutting, allowing programmed designs to be processed without manually guiding the cutting head.

The control system supports common file formats including DXF, LXD, AI, PLT and G-code, making it suitable for digital production workflows.

This is useful for automotive manufacturers producing repeated brackets, panels, covers and other sheet metal components.

Evidence:

CNC automatic cutting

DXF / LXD / AI / PLT / G-code support

Digital parameter adjustment

Programmable cutting paths

2. Four Working Areas for Different Component Sizes

Automotive parts vary considerably in size. Huawei Laser therefore provides four standard working-area configurations:

3. 1500W–12000W Power Range for Different Metal Requirements

The machine is available with fiber laser power from 1500W to 12000W.

The supplied specification lists a cutting thickness range of 0–50mm, while the actual result depends on material, thickness, laser power and cutting parameters.

Compatible materials include:

Carbon steel

Stainless steel

Aluminum

This configuration range allows the machine to cover different automotive metal-processing requirements.

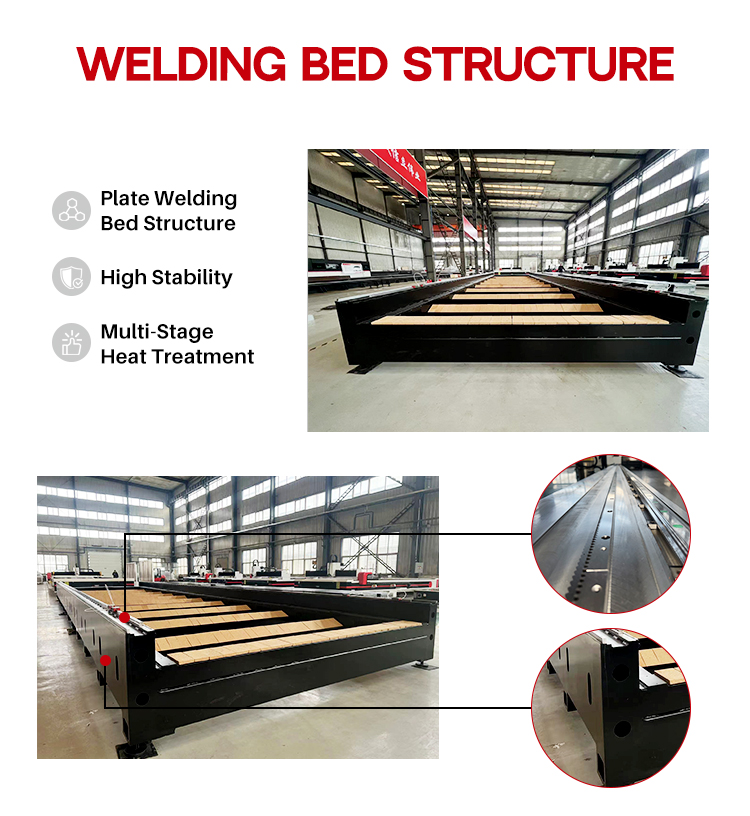

4. Stable Gantry Structure for Continuous Production

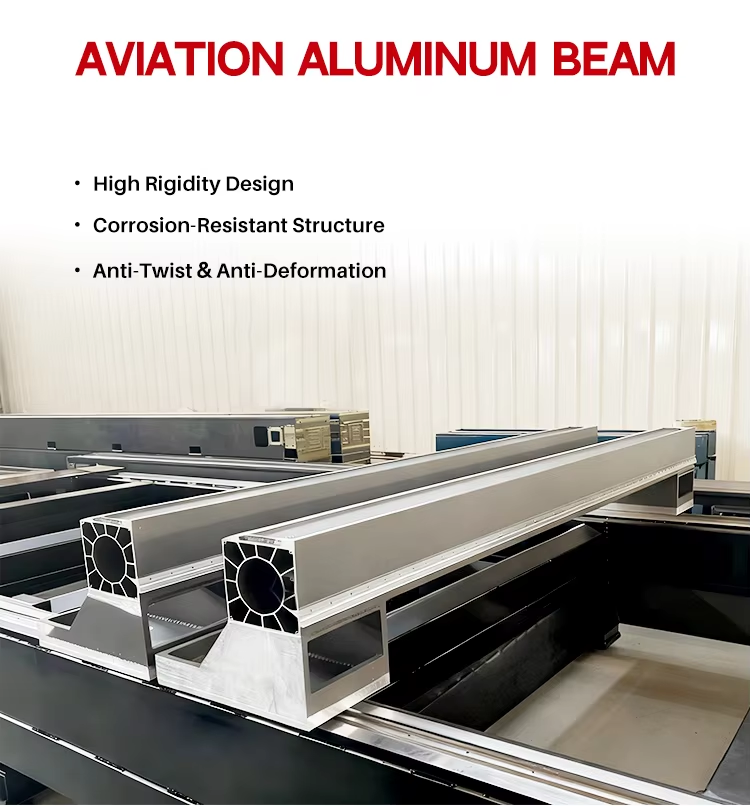

The machine adopts a gantry-type structure with an aviation-grade aluminum beam.

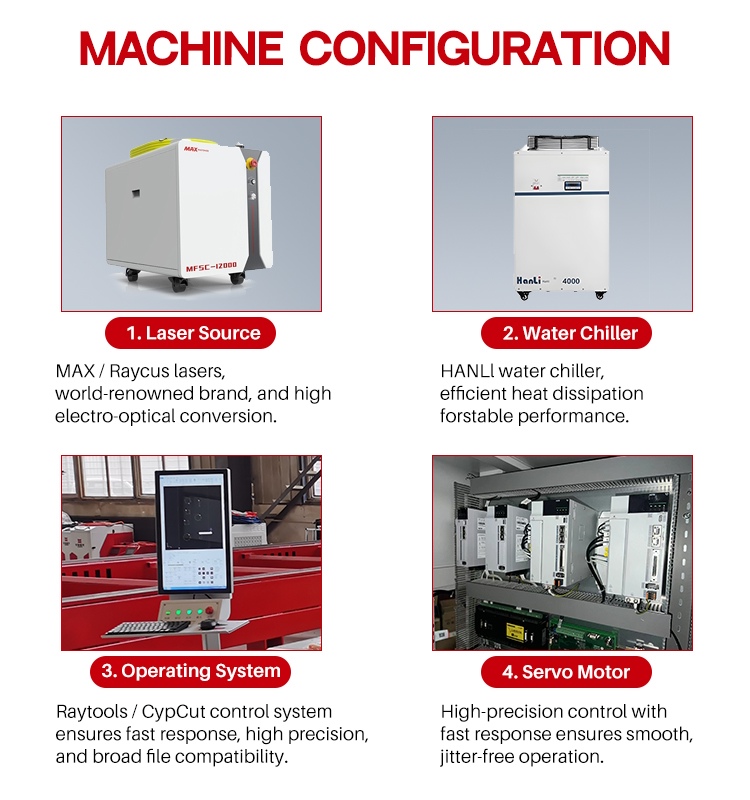

The mechanical system combines:

Aviation aluminum beam

Hiwin guide rail

Beitto / HCFA / Panasonic servo motor options

Raytools / Bochu cutting head options

The lightweight aluminum beam is designed to reduce moving load while maintaining structural rigidity, supporting stable movement during continuous cutting.

Technical Specifications

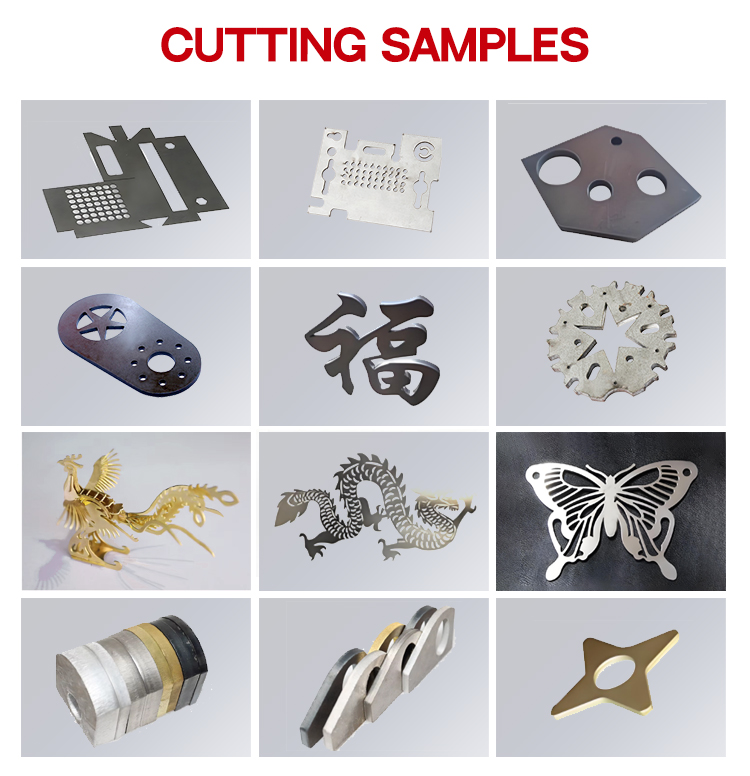

Automotive Parts Applications

Automotive Brackets & Mounting Parts

Suitable for cutting brackets, mounting plates and support components made from sheet metal.

Automotive Panels & Covers

The CNC system can process customized panel and cover designs for different vehicle-related components and equipment.

Structural Metal Components

The larger working-area configurations are suitable for larger metal components requiring extended cutting space.

Prototype & Customized Parts

Digital CNC processing allows cutting designs to be modified for prototypes, new component development and customized production.

Batch Production

For repeated automotive parts, programmed cutting paths can be reused to maintain a consistent processing workflow across batches.

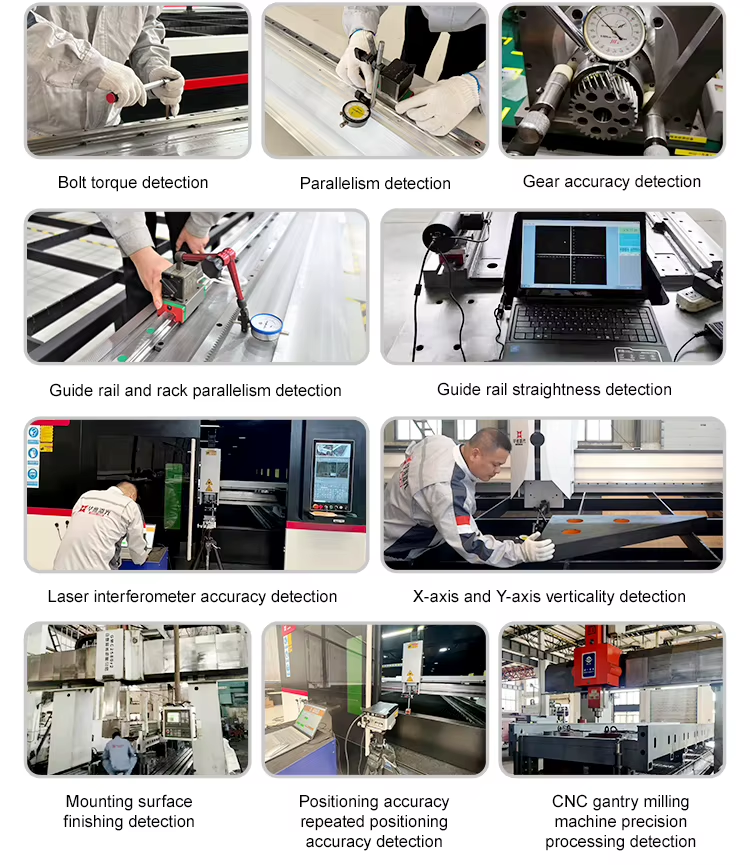

Quality Control & Delivery

Huawei Laser inspects the machine before shipment to verify its main operating functions.

Inspection includes:

Laser output testing

Cutting performance verification

CNC system inspection

Electrical safety testing

Complete machine operation testing

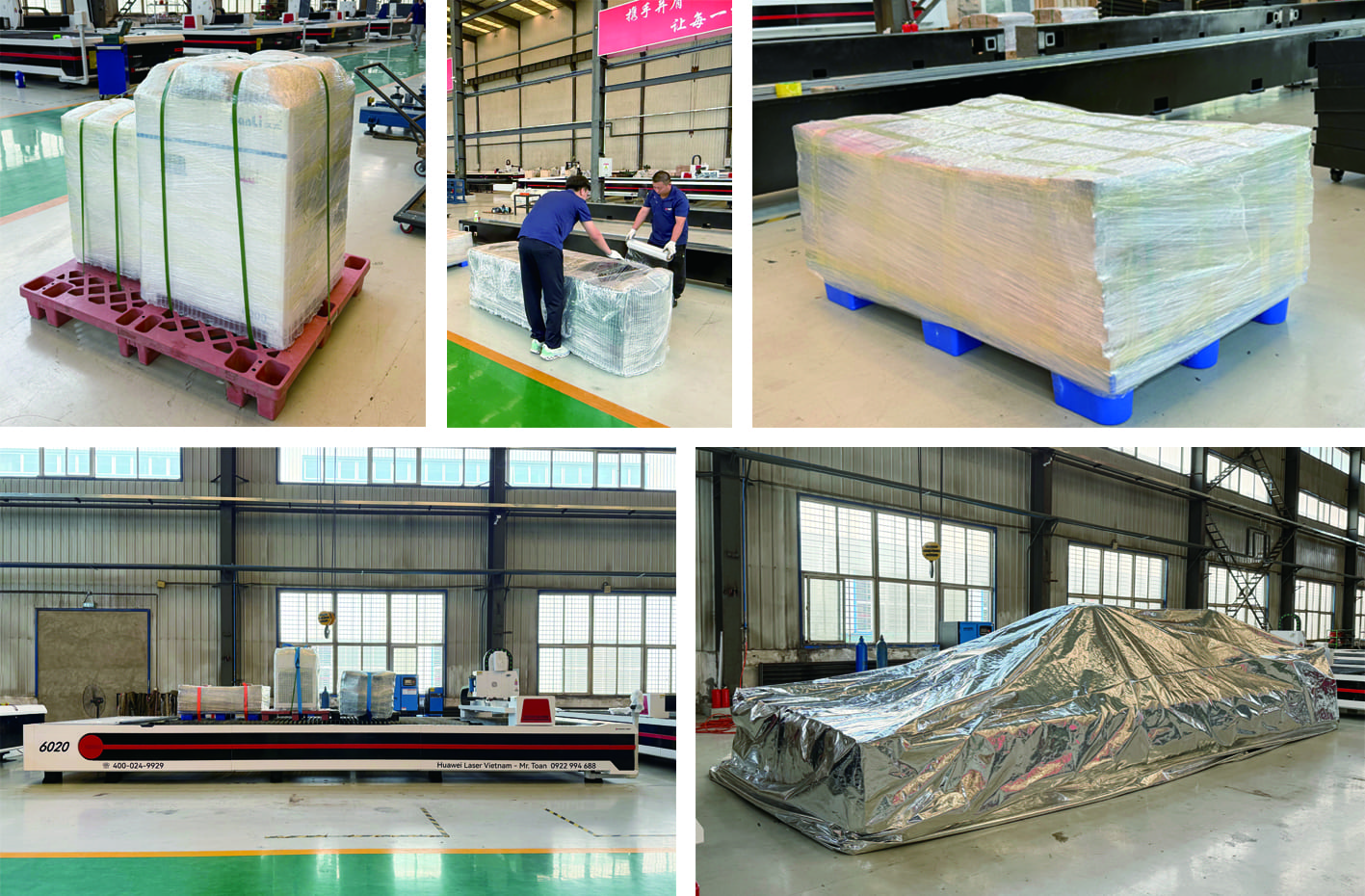

Export-standard packaging is used to protect the machine and precision components during transportation.

Why Choose Huawei Laser?

Huawei Laser provides fiber laser cutting equipment for manufacturers requiring different combinations of laser power, working area and machine configuration.

For automotive parts production, customers can select the equipment according to:

Material

Material thickness

Component size

Production requirements

Required cutting area

Huawei Laser also provides OEM customization, technical support and after-sales service for international customers.

FAQ

1. What materials can the machine cut?

It is designed for carbon steel, stainless steel and aluminum processing.

2. What laser power options are available?

The available power range is 1500W–12000W.

3. What working areas are available?

The standard configurations range from 1500×3000mm to 3100×13000mm.

4. Is it suitable for automotive parts manufacturing?

Yes. It is suitable for brackets, panels, covers, structural components, prototypes and other customized metal parts.

5. Is the cutting process automatic?

Yes. The machine uses CNC automatic cutting based on programmed processing paths.

6. What is the listed cutting thickness range?

The specification lists 0–50mm. Actual cutting capability depends on material and processing conditions.

Contact Huawei Laser

Find the Right Laser Cutting Configuration for Your Production

Looking for an Automatic Fiber Laser Cutting Machine for Automotive Parts Manufacturing?

Huawei Laser provides fiber laser cutting systems with flexible power and working-area configurations for automotive parts, sheet metal and customized metal production.

Contact Huawei Laser with your material, thickness, component size and production requirements to select a suitable machine configuration.
