800W Handheld Laser Welding Machine for Carbon Steel Fabrication

The 800W Handheld Laser Welding Machine for Carbon Steel Fabrication is developed for metal fabricators that need a compact welding system for daily production, customized orders and repair work.

The HWAIR-800 combines an 800W fiber laser source with an air cooled design, keeping the machine compact at 640×325×615mm and limiting total equipment weight to ≤50kg. This configuration is particularly practical for workshops where equipment needs to be installed, moved or rearranged between work areas. For manual welding, the machine uses a SUPER Laser SUP23T handheld welding head weighing only 0.58kg. The 0–4mm laser swing width provides adjustable beam movement for different welding requirements, while the continuous working mode supports regular production tasks. The system operates on 220VAC with a listed power consumption of 2500W, making it suitable for standard workshop power environments where the required electrical supply is available.

Key Advantages

1. 800W Fiber Laser Designed for Carbon Steel Fabrication

The HWAIR-800 uses an 800W fiber laser source and is configured for common metal fabrication applications, with carbon steel as a primary processing material.

Its laser source options include MAX and Raycus, allowing customers to select the configuration according to their equipment requirements.

Specification Evidence:

Laser Power: 800W

Laser Type: Fiber Laser

Laser Source: MAX / Raycus

Primary Material: Carbon Steel

Working Mode: Continuous

This configuration is suitable for carbon steel frames, brackets, fabricated components and other metal structures requiring handheld welding.

2. Air Cooled and Compact Design for Flexible Workshop Deployment

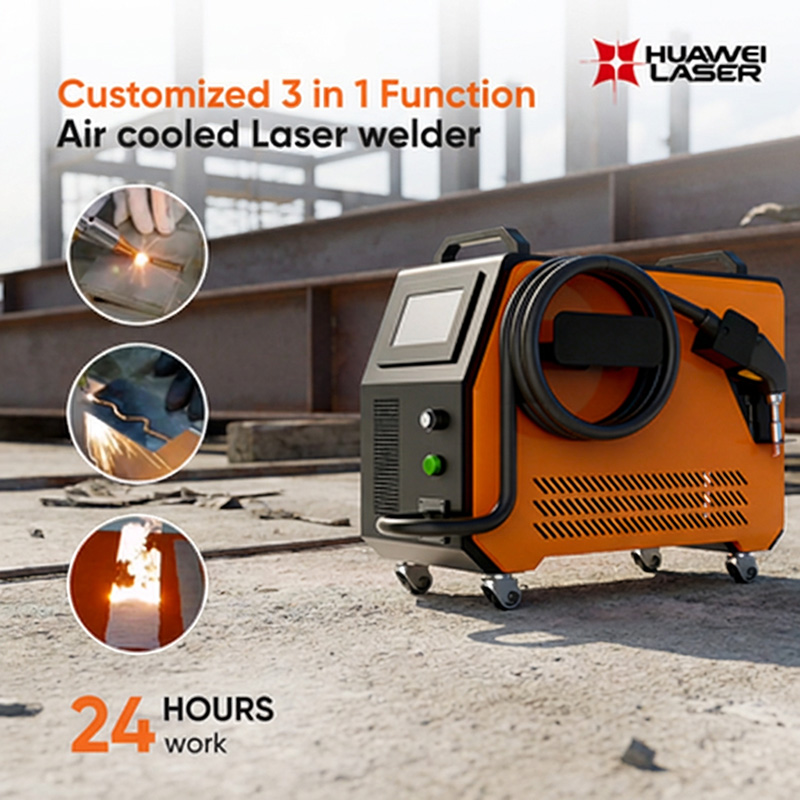

The HWAIR-800 combines an integrated air cooling system with a compact machine structure, eliminating the need for an external water chiller while keeping the equipment footprint manageable.

With dimensions of 640×325×615mm and a machine weight of ≤50kg, the system is easier to position and move between different work areas, making it suitable for workshops with limited space or changing production requirements.

Specification Evidence:

Cooling Method: Air Cooling

External Water Chiller: Not Required

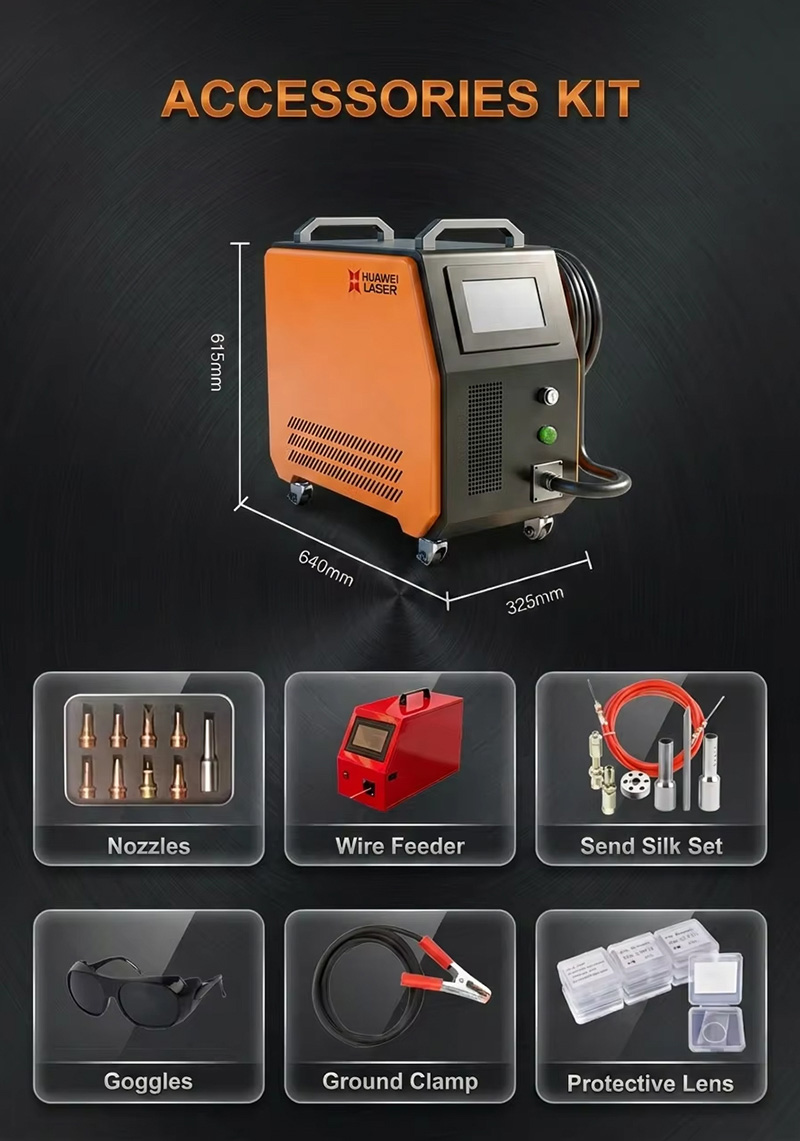

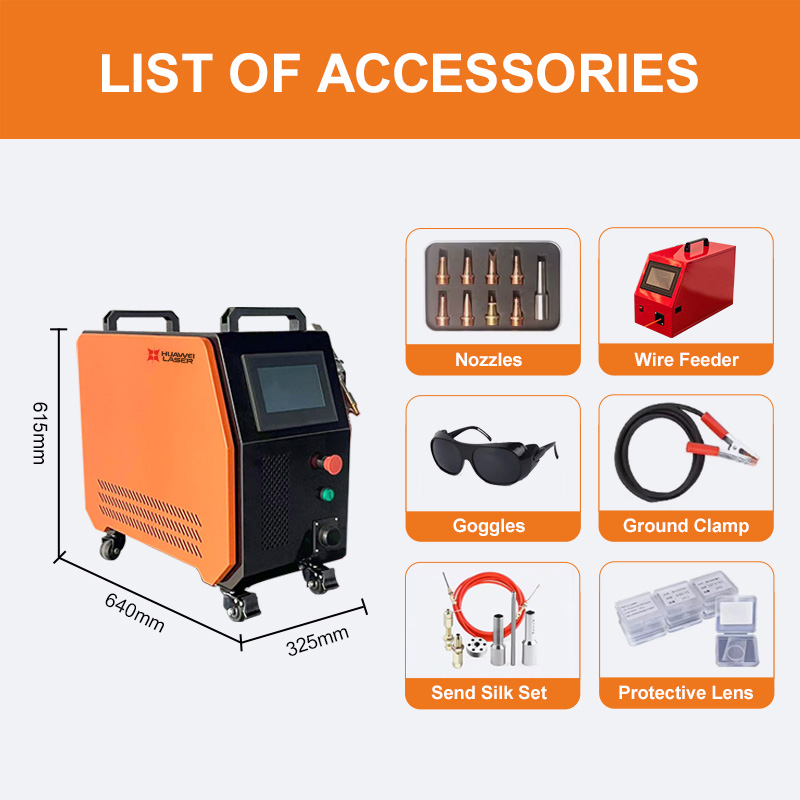

Machine Dimension: 640×325×615mm

Machine Weight: ≤50kg

This configuration provides a simpler equipment setup without adding a separate water cooling unit.

3. 0.58kg Handheld Welding Gun for Manual Welding

Manual welding requires the operator to continuously control the welding head, so the weight of the handheld tool directly affects handling comfort.

The HWAIR-800 uses the SUPER Laser SUP23T handheld welding head, with a welding gun weight of only 0.58kg.

The lightweight configuration is useful when operators need to weld different sections of a carbon steel structure or change welding positions frequently.

Specification Evidence:

Welding Head: SUPER Laser SUP23T

Welding Gun Weight: 0.58kg

Operation Type: Handheld

Laser Swing Width: 0–4mm

4. Adjustable 0–4mm Laser Swing Width

The laser swing function allows the beam width to be adjusted from 0 to 4mm.

Instead of using a fixed beam movement for every welding task, operators can configure the swing width according to the joint and workpiece requirements.

Specification Evidence:

Laser Swing Width: 0–4mm

Working Mode: Continuous

Laser Power: 800W

The adjustable range provides additional flexibility when welding different carbon steel components and joint configurations.

5. 220VAC Input for Workshop Integration

The HWAIR-800 is configured for a 220VAC input voltage, providing a straightforward electrical specification for workshop installation.

The listed machine power consumption is 2500W, which should be considered when preparing the site's electrical supply.

Electrical Specifications:

Input Voltage: 220VAC

Power Consumption: 2500W

Laser Power: 800W

Customers can therefore evaluate the machine's electrical requirements before installation rather than relying on general power descriptions.

Technical Specifications

Carbon Steel Fabrication Applications

Carbon Steel Frames and Structures

The 800W Handheld Laser Welding Machine for Carbon Steel Fabrication can be used for welding carbon steel components in fabricated frames and small metal structures.

Typical applications include:

Carbon steel frames

Metal brackets

Structural components

Small fabricated assemblies

The 800W fiber laser configuration and 0–4mm adjustable swing width provide the basic welding parameters needed for flexible handheld processing.

Sheet Metal Fabrication

For sheet metal manufacturers, the compact HWAIR-800 can be used for customized metal products and fabricated assemblies.

Typical applications include:

Sheet metal structures

Metal panels

Enclosures

Cabinets

Customized components

Its 640×325×615mm compact structure is suitable for workshops where floor space and equipment mobility are important considerations.

Hardware Manufacturing

The machine can also be integrated into hardware production involving carbon steel and other compatible metals.

Typical applications include:

Hardware components

Metal accessories

Brackets

Tools

Small assemblies

The 0.58kg handheld welding gun supports manual operation when different welding positions need to be accessed during fabrication.

Repair and Maintenance Welding

The compact air cooled configuration can also be used for welding repair and maintenance tasks.

Typical applications include:

Carbon steel component repair

Equipment maintenance

Metal structure restoration

Localized welding work

The ≤50kg machine weight and air cooling system make the equipment easier to deploy in workshops where welding tasks are not restricted to one fixed production line.

Contact Huawei Laser

Build Your Carbon Steel Welding Solution

The 800W Handheld Laser Welding Machine for Carbon Steel Fabrication combines an 800W fiber laser, air cooling, a 0.58kg handheld welding gun and a compact ≤50kg machine structure into a practical welding system for workshops and metal fabricators.

If you are processing carbon steel frames, sheet metal components, hardware or customized metal structures, Huawei Laser can provide the corresponding machine configuration based on your material, application and production requirements.

Contact Huawei Laser to discuss your carbon steel welding application and equipment requirements.
