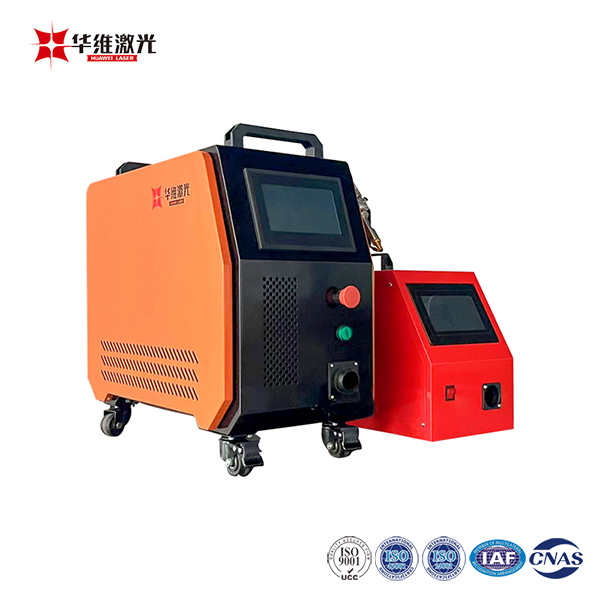

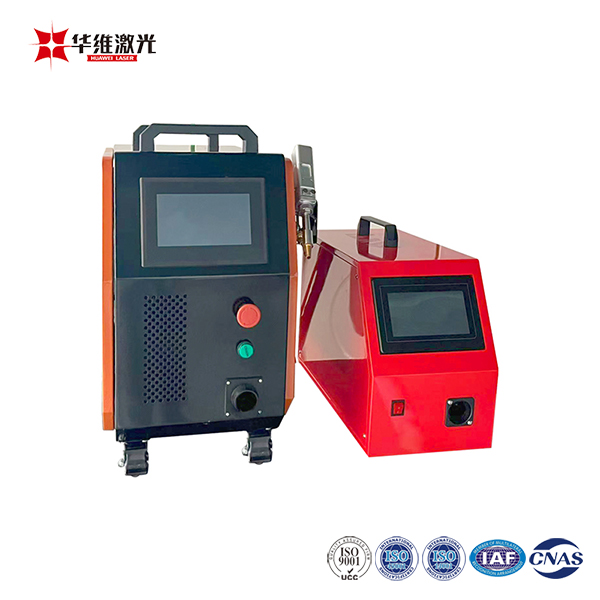

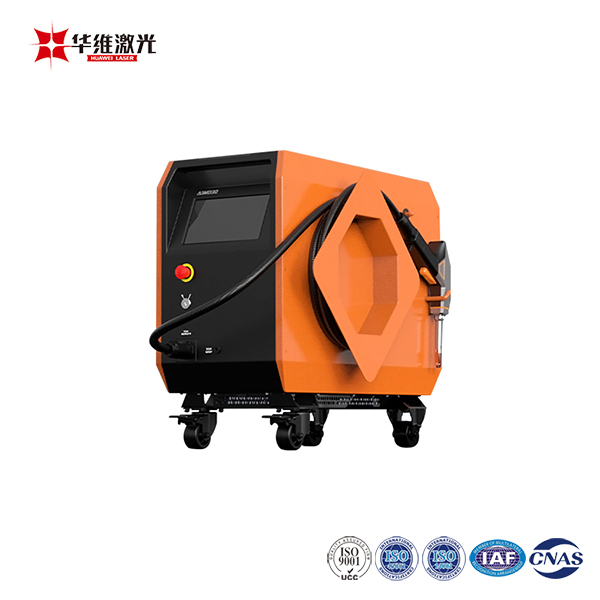

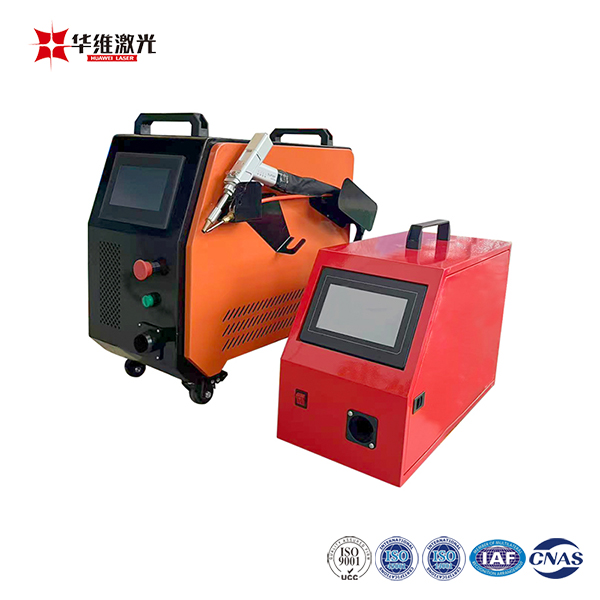

800W 1200W Precise 3 in 1 Air Cooling Handheld Welding Machine

This HUAWEI LASER 800W 1200W Precise 3 in 1 Air Cooling Handheld Welding Machine offers buyers accurate welding, cutting, and cleaning in a compact, air-cooled design for easy daily use. Its efficient cooling system eliminates the need for water chillers, reducing weight while maintaining stable output. The precision handheld gun ensures fine seams and clean processing on stainless steel, carbon steel, aluminum, and thin metals. With low heat distortion, fast response, and simple operation, it is ideal for workshops, installation teams, and repair services requiring stable, high-quality performance.

Model:HW-AIR

Send Inquiry

Product Description

The HUAWEI LASER 800W 1200W Precise 3 in 1 Air Cooling Handheld Welding Machine is a high-performance Handheld Laser Welding Machine designed to deliver efficient welding, cutting, and cleaning for diverse metal fabrication needs. With its integrated 3-in-1 functional design, the HUAWEI LASER 800W 1200W Precise 3 in 1 Air Cooling Handheld Welding Machine ensures stable output, fine weld seams, and high processing accuracy on stainless steel, carbon steel, aluminum, and other commonly used metals. Its advanced air-cooling system offers excellent heat dissipation, minimizing maintenance requirements and enabling continuous, reliable operation. Combined with an ergonomic handheld structure that enhances control and comfort, the HUAWEI LASER 800W 1200W Precise 3 in 1 Air Cooling Handheld Welding Machine is ideal for precision manufacturing, repair tasks, and customized metalwork applications.

Attributes

Condition	New
Place of Origin	Liaoning, China
Weight	＜39kg
Key Selling Points	Easy to Operate
Applicable Industries	Metal processing, Machinery manufacturing, Metal welding
Marketing Type	New product 2024
Core Components	Laser source
Brand Name	HUAWEI LASER
Single Pulse Energy	Other
Pules Width	Other
Focal Spot Diameter	Other
Dimensions	588mm265mm512mm 667mm276mm542mm
Laser Head Brand	MAX Photonics
Control System Brand	Max Photonics
Product Name	Air cooling laser welding machine
Application	Metal welding: weld carbon steel,stainless steel,aluminum,copper
Laser power supply	800w 1200w 1500w
Function	Handheld Welding
Key word	Air cooling, Portable, Handheld laser welding machine, High quality
Laser Source	Max Photonics
Welding gun	Max Photonics
Power Supply	AC220V 50HZ
Welding mode	Continuous welding
Cooling System	Air cooled

Product Specifications

Product model	HW-AIR 800	HW-AIR 1200
Weight	<29kg	<38kg
Volume	<0.08m	<0.1m°
Dimensions	588mm265mm512mm	667mm276mm542mm
Welding gun weight	0.68kg	0.68kg
Working mode	Continuous/Pulse	Continuous/Pulse
Laser swing	0-4mm	0-4mm
Input voltage	220VAC	220VAC
Power consumption	2500W	6000W

Welding Capability

Product Model	Welding Material	Stainless Steel	Carbon Steel	Galvanized Sheet	Aluminum	Brass	Copper
HW-AIR 1500	Single side penetration	4.5mm	4.5mm	4.0mm	3.0mm	3.0mm	1.5mm
HW-AIR 1200	Single side penetration	4.0mm	4.0mm	4.0mm	3.0mm	3.0mm	1.5mm
HW-AIR 800	Single side penetration	3.0mm	3.0mm	3.0mm	2.0mm	2.0mm	1.0mm

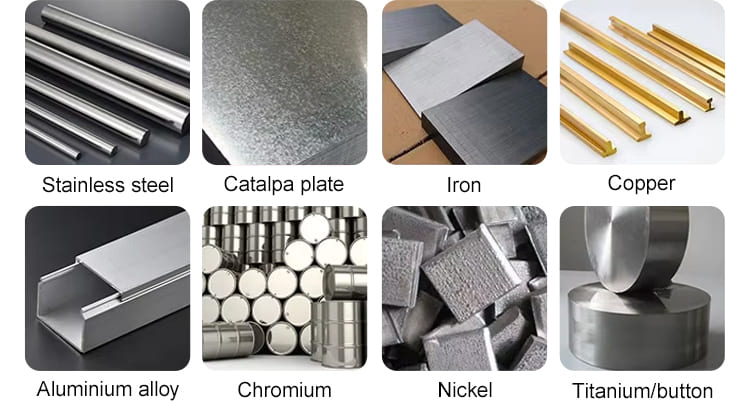

Welding materials

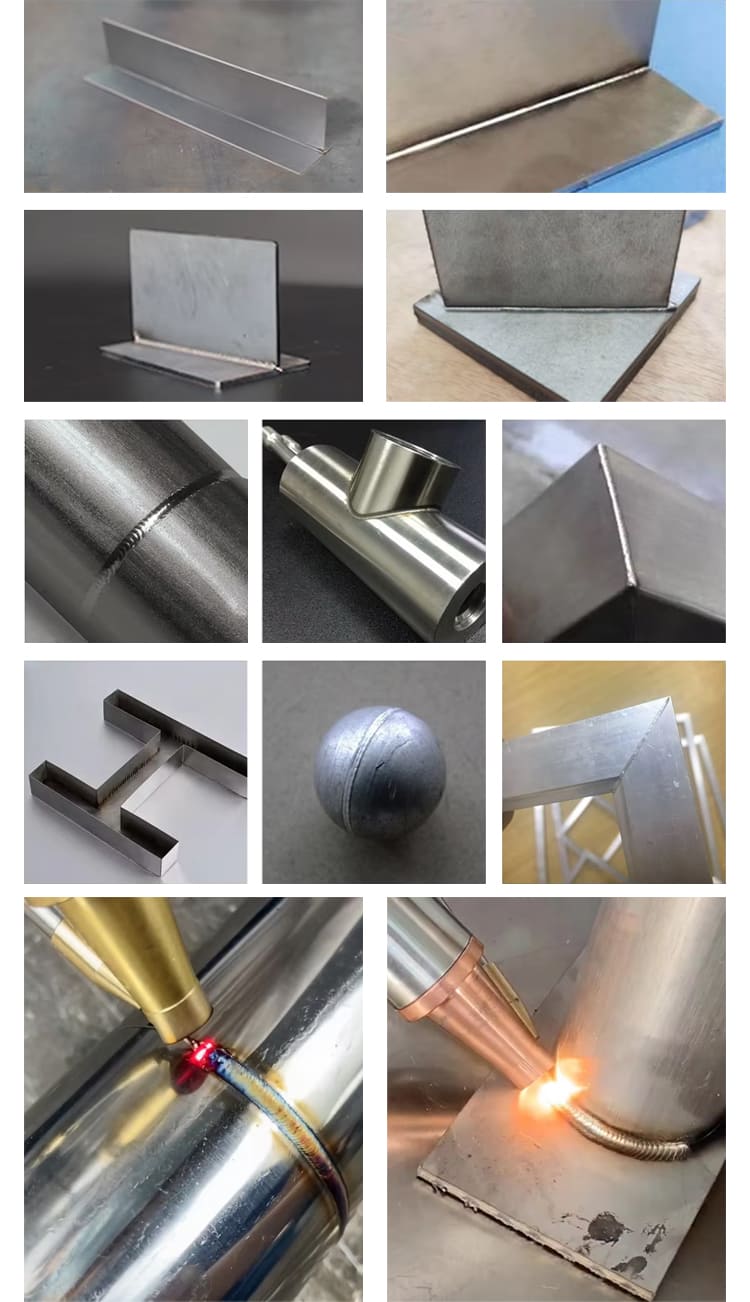

Welding samples

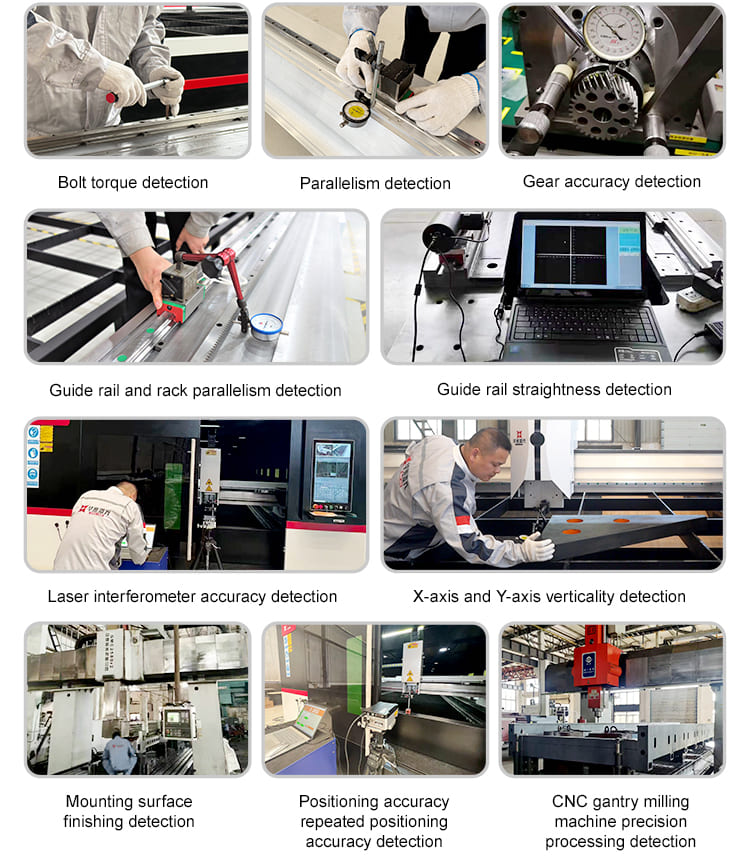

Quality Inspection Process

Exhibition

FAQ

1.Q: I don’t know which one is suitable for me ?

A :Just tell us below information

1) Materials and welding thickness: To match the right Power of laser generator for you.

2) Business industries: We sell a lot and give advice on this business line.

2.Q: When I got this machine, but I don’t know how to use it. What should I do?

A： We will send training video and English manual with the machine in time. If you still have some doubts, we can talk by telephone or Whatsapp.

3.Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

4.Q: How can I do if the machine goes wrong?

A: If confronted with such problems, Non-professionals should not repair the machine，please contact us ASAP. We will response within 24 hours as quick as we can to solve it for you.
